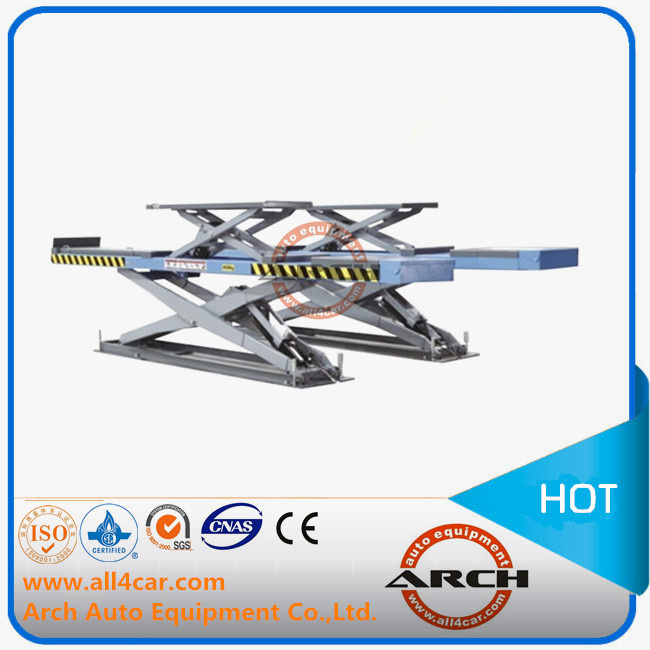

Scissor Lift (AAE-LS140)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
ARCH AUTO EQUIPMENT CO.,LTD.Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.Feature:1. Suitable used in the car 4S shop for alignment,repairing and maintain service;
2.In-groud installation;
3. 3500kg/4000kg/5000kg lifting capacity;
4. Function with the second lifting jack with lifting height 450mm,and the lifting platform span can beextended for easily operatng and make the machne suit for logn vehicle maintenance service longer;
5. Long rear turn-table ,positioning of angl plate can b adjusted;
6. Aluminum shell motor prevents overheated;
7. Operating control system with 24V safety voltage;
8. 24V height limit switch provided;
9. The automatic mechanical lock engaged during process to ensure the vehicles lifting safety;
10. Runway synchronizer system provided for preventing vehicles from tilt possibly;
12.The hydraulic system releasing facility provided fo vehicle lowering in case of electrical power losing (option function);
13. Routine testing with 115% dynamic and 150% static loading;
14.CE approved;Scissor Lift (AAE-LS140)
Technical Parameter: | Modle | AAE-LS140 |
| Lifting Capacity | 4000kg |
| Liting Height | 1800mm |
| Runway Width | 600mm |
| Runway Length | 4500mm |
| Lifting Time | 65s |
| Rated Oil Pressure | 20Mpa |
| Air Pressure | 0.6~0.8Mpa |
| Motor Power | 2.2kw |
| Weight | 2050kg |
Our Copmany Website:www.all4car.com
| Prod Model: |
AAE-LS140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Modle: |
Aae-Ls140 |
| Capacity: |
4.0 T |
| Lifting Height: |
1800mm |
| Runway Width: |
600mm |
| Runway Length: |
4500mm |
| Lifting Time: |
65s |
| Rated Oil Pressure: |
20MPa |
| Air Pressure: |
0.6-0.8MPa |
| Motor Power: |
2.2 Kw |
| Packing Size: |
4700*600*800+520*430*1100 |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
4T |
| Certification: |
CE |
| Design: |
Scissor |
| Brand: |
Arch |
