| Prod Model: |
466618-0013 315467 53299887001 |
| Turbine Material: |
K18 Ni-Base Superalloy |
| Turbine Housing Material: |
Iron+ Ni+Mo |
| Compressor Housing Material: |
Cast Aluminium |
| Shaft Material: |
42CrMo4 |
| Balancing: |
Tested by High Speed Balancing Machine |
| Engine: |
Isde6 |
| Condition: |
Brand New |
| Warranty: |
18months |
| Lead Time: |
7-25days |
| Shipping Ways: |
Express, by Sea and by Air |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
ISO9001 |
| Application: |
Truck |
Product Description

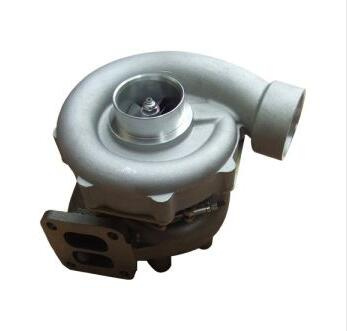

S400 466618-0013 315467 53299887001 turbocharger for Mercedes Benz OM441LA engine | Part Number | 315467 |
| OE number | 0030965799, 0030969699, 0040960299, 0040963499, A0030965799, A0030969699, A0040960299, A0040963499 |
| Year | 1995-2012 |
| Description | Truck |
| Manufacturer Part Number | 315163 |
| CHRA | 315468 |
| Turbo Model | S400 |
| Engine | OM441LA Euro 1/2 |
| Displacement | 10.96L, 6 CYL |
| KW | 240/326 |
| Fuel | Diesel |
| Angle α (compressor housing) | 15° |
| Angle β (turbine housing) | 0° |
| Bearing Housing | 315475 |
| Turbine Wheel | 315471 |
| Comp. Wheel | 315469 |
| Back plate | 316010 |
| Heat shield Number | 315964 |
| Repair Kit | 318396 |
| Turbine Housing | 315470 |
| Compressor Cover | 317101 |
| Interchangeable with | 466618-0013 |
| NOTE | Complete replacement turbo. Internal parts not interchangeable |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Interchangeable with 53299887001
| Part Number | 466618-0013 |
| Previous Version | 466618-0015, 466618-0014, 466618-0016, 466618-0019, 466618-0028 315467 |
| OE number | 0040965099KZ, 0040965099, A0040965099 |
| Description | Truck Mercedes OM441LA Bus |
| CHRA | 441398-0085 (441398-5085S)(100450001) |
| Turbo Model | TB4521 - TA4521 |
| Engine | OM441LA - OM449LA OM441LA Euro 2 |
| Displacement | 10.96L |
| KW | 220 |
| RPM Max | 2100 |
Interchangeable with 53299887001, 315467, 3580214
| Part Number | 53299887001 |
| Previous Version | 5329-988-7001, 5329 988 7001 |
| OE number | 0040963599, A0040963599 |
| Description | Commercial Truck, Industrial Engine, Bus |
| Manufacturer Part Number | 53299707001, 5329-970-7001, 53299717001, 53299727001, 466618-0003, 466618-0004, 466618-0009 |
| CHRA | 53297100005 (5329-710-0005) |
| Turbo Model | K29-3470MNA23.22GNAWD, K28-3266O22.26 |
| Engine | OM441LA Euro 1 |
| Displacement | 10.96L |
| KW | 194/239/264/325 |
| Fuel | Diesel |
Applications
2009- Mercedes Benz Jumbo 2 (Euro 1) Truck with OM441LA - OM449LA Engine
1995-2012 Mercedes Benz Truck with OM441LA Euro 1/2 Engine
1987- Mercedes Benz Commercial Bus with OM441LA Euro 1 Engine
1987- Mercedes-Benz 1834, Truck with OM441LA Euro 1 Engine
| TENZUATP Turbocharger Details |
| Material: | Turbine Material:K18 Ni-Base Superalloy
Turbine Housing:Iron+ Ni+Mo
Compressor Housing Material:Cast Aluminium
Shaft Material:42CrMo4 |
| Condition: | Brand New |
| Warranty: | 18 Months |
| Packing | 1.Neutral Strong carton with foams
2.Customized box |
| Lead time: | 7-25days |
| Sample or small order | Accepted |
| Country of origin | People's Republic of China |
Photos:
Material Description | Axle :
Use good wearing resistance 42 chrome molydbenum
material for turbine wheel axle,most supplier use common
material,which is easily abrased soon

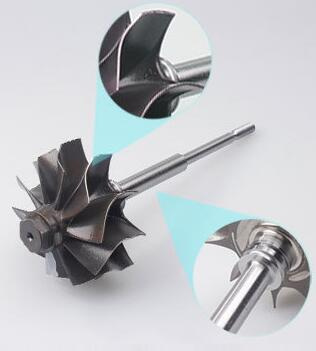

Turbine wheel:
Choose high hardness K18 turbine wheel,many supplier use
less cost K13 material,which is easy to deform and break down
under constant increasing power and high temperature. |

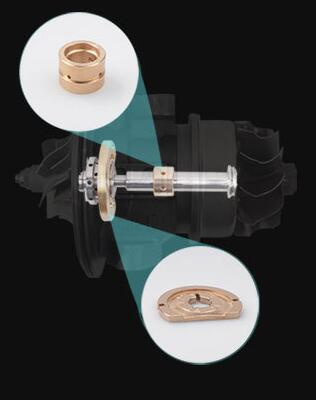

 | Bearings:
High hardness H26Cu thrust bearing and floating bearing
processed by high precision CNC Technology.
Strengthen the toughness and not easy to break.
Powder Metallurgy Technology: Easy to brake.
|
Packing:
Transportation:
You may like the following turbos:Why choose US?1.BUREAU VERITAS AUDITED SUPPLIER
2.Strict confidentiality for customers
3.Have a strong product development capabilities!
5.We have Longterm cooperation forwarders to ensure the quick and safe shipment,
avoid goods delay and extra cost.
7.Solve problems for customers in time
8.Good Payment terms and Reasonable price
5. Excellent after-sales service and feedback
6. Potential problems in product handling |
