S200g Turbocharger 318815, 04259318kz, 318754, 20571676 for Deutz Industria
Price: |
US $ 140-160/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
S200G turbocharger 318815,04259318KZ,318754,20571676 for Deutz IndustriaPart Number | 318815 |
OE number | 04259318KZ, 4259318KZ, 20571676 |
Year | 2001- |
CHRA | 318911 |
Description | Industrial Engine |
Turbo Model | S200G-76H24AEFGM0.85DA11 |
Engine Model | BF6M1013FC |
Manufacturer Part Number | 318754 |
Displacement | 7.15L, 7150 ccm |
KW | 200/268 |
RPM Max | 2300 |
Fuel | Diesel |
Angle α (compressor housing) | 95° |
Angle β (turbine housing) | 356° |
|
Bearing Housing | 317952 |
Turbine Wheel | 318900 |
Comp. Wheel | 169937 |
Back plate | 167744 |
Heat shield Number | 167997 |
Repair Kit | 318383 |
Turbine Housing | 318893 |
Compressor Cover | 318762 |
Actuator | 318291/310618 |
Settings Waste gate (pressure) | 1.558-1.627 bar |
Settings Waste gate (lift shaft) | 0.38 mm |
Gasket (turbine inlet) | 409039-0000 (2405022) |
Gasket (turbine outlet) | 210245 |
Gasket (oil outlet) | 210021 (311496, 148062, 311496) |
Manufacturer | Borg Warner - 3K - Schwitzer, BWTS UK |
Applications
12001- Deutz Industrial Engine Gen Set BF6M1013FC
TENZUATP Turbocharger Details |
Material: | Turbine Material:K18 Ni-Base Superalloy Turbine Housing:Iron+ Ni+Mo Compressor Housing Material:Cast Aluminium Shaft Material:42CrMo4 |
Condition: | Brand New |
Warranty: | 18 Months |
Packing | 1.Neutral Strong carton with foams 2.Customized box |
Lead time: | 7-25days |
Sample or small order | Accepted |
Country of origin | People's Republic of China |
Photos:

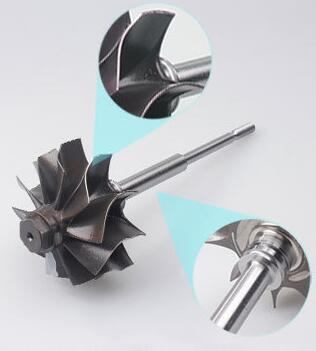

Material Description | Axle : Use good wearing resistance 42 chrome molydbenum material for turbine wheel axle,most supplier use common material,which is easily abrased soon Turbine wheel: Choose high hardness K18 turbine wheel,many supplier use less cost K13 material,which is easy to deform and break down under constant increasing power and high temperature. |

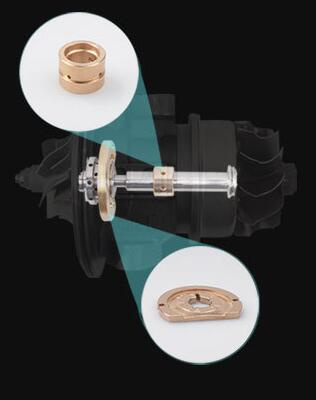

| Bearings:
High hardness H26Cu thrust bearing and floating bearing processed by high precision CNC Technology. Strengthen the toughness and not easy to break. Powder Metallurgy Technology: Easy to brake. |
Packing:
Transportation:
You may like the following turbos:Why choose US?1.BUREAU VERITAS AUDITED SUPPLIER
2.Strict confidentiality for customers
3.Have a strong product development capabilities! 5.We have Longterm cooperation forwarders to ensure the quick and safe shipment, avoid goods delay and extra cost. 7.Solve problems for customers in time
8.Good Payment terms and Reasonable price 5. Excellent after-sales service and feedback 6. Potential problems in product handling |
Welcome to contact us!
Contact: Jonathan TeL: +86-551-63843730
Prod Model: |
318815, 04259318KZ, 318754, 20571676 |
Turbine Material: |
K18 Ni-Base Superalloy |
Turbine Housing Material: |
Iron+ Ni+Mo |
Compressor Housing Material: |
Cast Aluminium |
Shaft Material: |
42CrMo4 |
Balancing: |
Tested by High Speed Balancing Machine |
Engine: |
Isde6 |
Condition: |
Brand New |
Warranty: |
18months |
Lead Time: |
7-25days |
Shipping Ways: |
Express, by Sea and by Air |
Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
Body Material: |
Iron |
Certification: |
ISO9001 |
Application: |
Truck |
Brand: |
Tenzu |
