Rubber Endless Timing Belt was produced by high quality neoprene and glass fiber cord material, and vulcanize process technology, truly seamless belt, rubber timing belt widely applied to security, glass ceramic, wood, metal plastic, printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical appliance, car, sports and other industries of mechanical transmission. Also we are able to process according to customer's blueprint.
We offer:
1. Model: MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, 2M, 3M, 5M, 14M, S2M, S3M, S5M, S8M, S14M, RPP3M, RPP5M, RPP8M
2. Material: Neoprene
3. Brand Name: Jbosun
4. Place of Origin: Shenzhen China (Mainland)
5. Packaging Detail: Export Carton
6. Delivery Detail: About 7 Days after receiving 30% T/T payment in advance
Rubber endless timing belt features:
High efficient transmission, low noise, withstand oil and strain, without elasticity, no extension, appropriate teeth, working temperature range from -30 ° C. To 80° C.

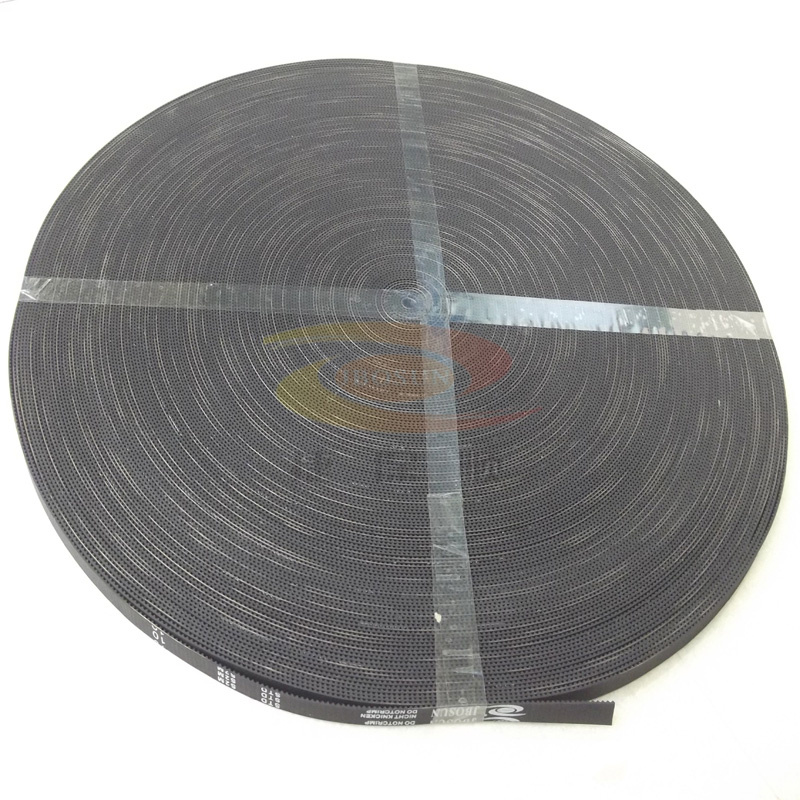

Rubber open ended timing belt features:
High efficient transmission, low noise, withstand oil and strain, without elasticity, no extension, high torque, withstand abrarion, working temperature range from -30° C to 80° C.
Specification and size are unfinished, wide range of molds and complete models for your choose. Welcome to contact us for more information, we'll response you asap! OEM is offered.
| | Timing Belt | |
| | | Type | Pitch | Tooth height | Belt thickness | |
| | pb(mm) | ht(mm) | hs(mm) | |
| | T-type
| MXL | 2.032 | 0.51 | 1.14 | |
| | XL | 5.08 | 1.27 | 2.3 | |
| | XXL | 3.175 | 0.76 | 1.52 | |
| | L | 9.525 | 1.91 | 3.6 | |
| | H | 12.7 | 2.29 | 4.3 | |
| | XH | 22.225 | 6.35 | 11.2 | |
| | XXH | 31.75 | 9.53 | 15.7 | |
| | T2.5 | 2.5 | 0.7 | 1.3 | |
| | T5 | 5 | 1.2 | 2.2 | |
| | T10 | 10 | 2.5 | 4.5 | |
| | T20 | 20 | 5 | 8 | |
| | AT5 | 5 | 1.2 | 2.7 | |
| | AT10 | 10 | 2.5 | 5 | |
| | AT20 | 20 | 5 | 8 | |
| | Arc toothHTD | 2M | 2 | 0.75 | 1.36 | |
| | 3M | 3 | 1.22 | 2.4 | |
| | 5M | 5 | 2.06 | 3.8 | |
| | 8M | 8 | 3.36 | 6 | |
| | 14M | 14 | 6.02 | 10 | |
| | 20M | 20 | 8.4 | 13.2 | |
| | Arc tooth STD | S2M | 2 | 0.76 | 1.36 | |
| | S3M | 3 | 1.14 | 2.2 | |
| | S5M | 5 | 1.91 | 3.4 | |
| | S8M | 8 | 3.05 | 5.3 | |
| | S14M | 14 | 5.3 | 10.2 | |
| | Arc tooth RPP | RPP3M | 3 | 1.15 | 1.9 | |
| | RPP5M | 5 | 1.95 | 3.5 | |
| | RPP8M | 8 | 3.2 | 5.5 | |
| | RPP14M | 14 | 6 | 10 | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
