Rubber Hose DOT Approved 1/2 Inch Fmvss106 Brake Hose

Name: Rubber Hose DOT Approved 1/2 Inch Fmvss106 Brake Hose
Brand: ibuyautoparts.com
SKU: 785082375
Availability: InStock
Rating: 5 (45 reviews)

Price:	US $ 6.3-9.9/Set
Trade Terms:	FOB,CIF,DAP
Min Order:	1000/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

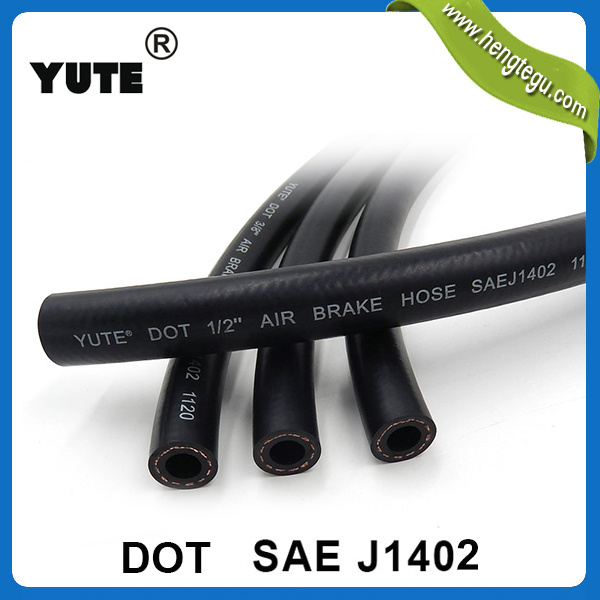

Rubber Hose DOT Approved 1/2 Inch Fmvss106 Brake Hose

Application:
Designed for conveying air in truck and trailer brake systems.Truck and trailer manufacturers,aftermarket packagers and wholesaters use this hose.It is certified to meet SAEJ1402 requirements.

Size & Tech Data:

ITEM NO	I.D		O.D	W.P		B.P		Weight
ITEM NO	inch	mm	mm	PSI	Bar	PSI	Bar	Ibs./ft	Kg/m
-4	3/16	4.8	12	225	15.5	900	62	0.082	0.122
-5	1/4	6.4	13.6	225	15.5	900	62	0.097	0.145
-6	3/8	7.9	15.1	225	15.5	900	62	0.110	0.166
-7	13/32	10.3	18.3	225	15.5	900	62	0.157	0.230
-8	7/16	11.9	19.8	225	15.5	900	62	0.173	0.257
-10	1/2	12.7	20.5	225	15.5	900	62	0.162	0.250
-12	5/8	15.9	26.2	225	15.5	900	62	0.287	0.423

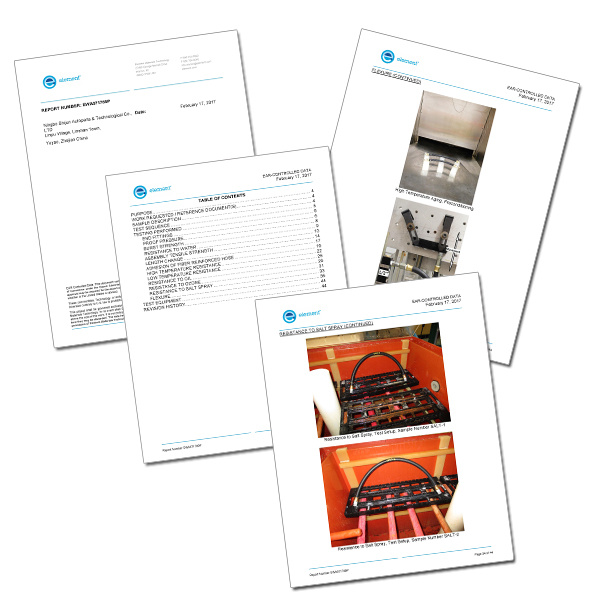

YUTE air brake hoses have passed test by USA third -party test lab . all the test done according to the SAE J1402 standard requirements.

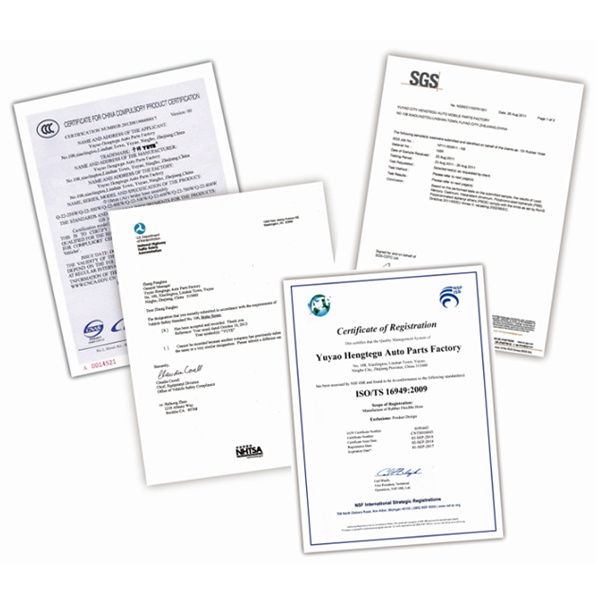

ISO/TS 16949:2009 & DOT approved

Prod Model:	1/2 inch
Markets:	North America,South America,Eastern Europe,Western Europe
Product Name:	Fmvss106 Brake Hose
Applications:	Used for Truck Brake System
Certifications:	ISO/ Ts 16949, DOT
Size Range:	1/4 5/16 3/8 1/2 Inch
Features:	Safe and Reliable
Working Pressure:	225 Psi
Burst Pressure:	900 Psi
Flexure Test:	1000000 Cycles
Accept OEM Manufacturing:	Yes
Temperature Range:	-40 to 100 Degree
Type:	Brake System
Material:	Aluminum
Certification:	DOT

Yuyao hengtegu auto parts factory is a professional hose designer and manufacturer. It's located in Ningbo, Zhejiang Province. The transportation is convenient, 40 minutes away from the Hangzhou International Airport and one and a half hours away from Ningbo shipping port. As a manufacturing enterprise, we are engaged in the research and development of rubber hose's design, manufacturer and sales. We have been trying our best to invest in our people, technology and resources to make it easier for you to do business with us.

Now the factory owns sets of advanced cold rubber compound feed production lines and completed testing equipments. Our factory have passed the ISO/TS16949 quality management system certification, the products' quality meets SAE & DIN standard.

Main products: Fuel hose, air brake hose, hydraulic brake hose, power steering hose, rubber air hose, rubber air hose assembly and refrigerant charging hose, are widely used in the auto, engineering machinery, HAVC and other industries. Best quality and competitive price, we will try our best to provide you with good service. You are recognized for every dollar you spend with us.

Our business philosophy: Unitive and harmonious, hardworking and enterprising, regard technology as the core, offer cost-effective products to serve customers.
