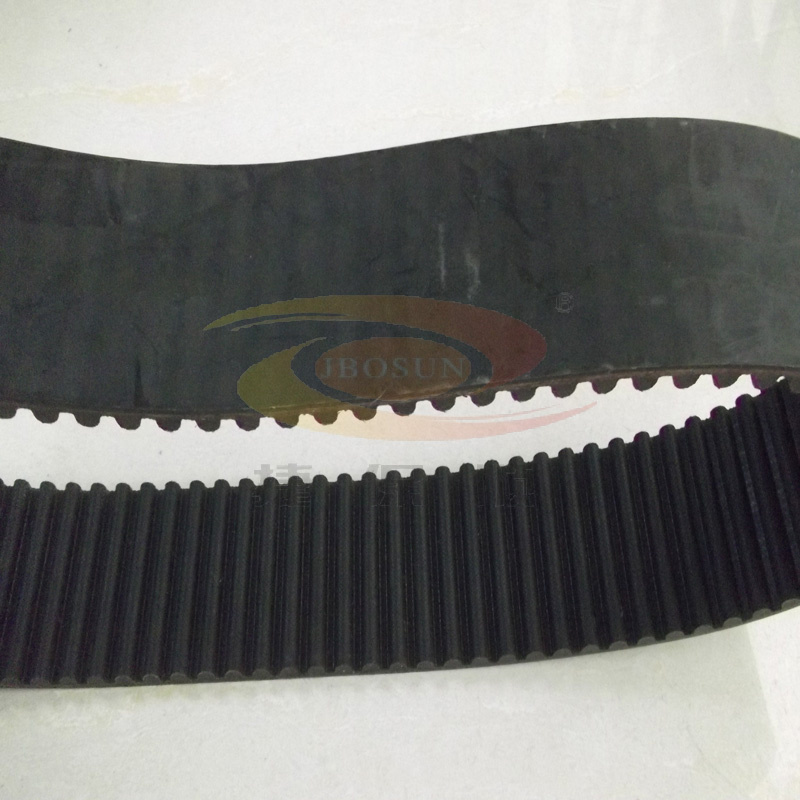

Rubber Endless Timing Belt for Tobacco Machine
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Rubber Endless Timing Belt was produced by high quality neoprene and glass fiber cord material, and vulcanize process technology, truly seamless belt, rubber timing belt widely applied to security, glass ceramic, wood, metal plastic, printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical appliance, car, sports and other industries of mechanical transmission. Also we are able to process according to customer's blueprint.
Welcome To Jbosun Industrial Equipment Co.,Ltd. |
Basic Information |
Product Name | Rubber Endless Timing Belt for Tobacco Machine |
Payment Term | T/T,Western Union | Brand | JBOSUN |
Trade Term | EXW/FOB/CIF/CFR | Price | Negotiation |
Place of Origin | Shenzhen,China | Productivity | 100000pcs/Month |
MOQ | 2pcs | Package | Exporter carton |
Delivery time | 2~90 days according to your quantity. |
Additional Information |
Model/Type | HTD 2M | Style | Endless (joint/jointless)/open-ended |
Pitch/pb | 2mm | Tooth height/ht | 0.75mm |
Belt thickness/hs | 1.36mm | Tooth shape | Arc Tooth HTD |
Material | Rubber | Color | black |
Special Technology | |
Product Description |
other type timing pulley parameters for your reference: |
Pitch/pb(mm) | Tooth height/ht(mm) | Belt Thickness/hs(mm) | Type | Tooth Shape |
2.032 | 0.51 | 1.14 | MXL | T-Type |
5.08 | 1.27 | 2.3 | XL |
3.175 | 0.76 | 1.52 | XXL |
9.525 | 1.91 | 3.6 | L |
12.7 | 2.29 | 4.3 | H |
22.225 | 6.35 | 11.2 | XH |
31.75 | 9.53 | 15.7 | XXH |
2.5 | 0.7 | 1.3 | T2.5 |
5 | 1.2 | 2.2 | T5 |
10 | 2.5 | 4.5 | T10 |
20 | 5 | 8 | T20 |
5 | 1.2 | 2.7 | AT5 |
10 | 2.5 | 5 | AT10 |
20 | 5 | 8 | AT20 |
2 | 0.75 | 1.36 | HTD2M | Arc tooth HTD |
3 | 1.22 | 2.4 | HTD3M |
5 | 2.06 | 3.8 | HTD5M |
8 | 3.36 | 6 | HTD8M |
14 | 6.02 | 10 | HTD14M |
20 | 8.4 | 13.2 | HTD20M |
2 | 0.76 | 1.36 | STD2M | Arc tooth STD |
3 | 1.14 | 2.2 | STD3M |
5 | 1.91 | 3.4 | STD5M |
8 | 3.05 | 5.3 | STD8M |
14 | 5.3 | 10.2 | STD14M |
3 | 1.15 | 1.9 | RPP3M | Arc tooth RPP |
5 | 1.95 | 3.5 | RPP5M |
8 | 3.2 | 5.5 | RPP8M |
14 | 6 | 10 | RPP14M |
|
Applications: |
CNC machine/textile/print/food packaging/electrical appliance/communication cable/instrumentation/tobacco and so on. |
Advantages: |
1.Transmission accurately, non-slip, while working with a constant velocity ratio; |
2.stable and has buffer and damping capacity, low noise; |
3.Up to 0.98, high transmission efficiency, energy saving effect is obvious; |
4.Convenient maintenance, without lubrication and maintenance cost is low; |
5.Large range of speed ratio, generally can be up to 10, linear velocity can reach 50 m/s, has great power transmission range, can reach several to several hundred thousand watts; |
6.be used in long distance transmission center distance can reach more than 10 m; |
7.Relative to the V belt transmission, pre-tightening force is small, the shaft and bearing load is small. |
operating principle: |
Synchronous belt transmission is from the inside of a surface with the spacing ring belt and have appropriate tooth of pulley, runtime, toothed with pulleys tooth meshing transfer movement and power, it is a combination of merits of a belt drive, chain transmission gear drive the new belt transmission. |
|
|
Install Attention: |
Reduce the center distance of the pulley, if there is a tension wheel should be loosened, mount tape again after adjusting the center distance. For fixed transmission center distance, should first remove the pulley, the belt again after loaded on the belt wheel fixed on put pulley to the shaft. |
|
|
