Rolling Jack for Scissor Lift (SHL-Y-J-35X)
| Price: |
US $ 3500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specification1.Adjustable the width of sub lifting platform;
2.Oil cylinder built-in explosion-proof device;
3.Mechanical safety locking with features of automatic engagement and pneumatic release;
4.Unique conjoined X structure. Solid steel plate made of high precision numerical control design, overcome steel pipe rigidity. Not easy to rust, more reasonable and secure;
5.Super precision alignment scissor lift, double hidden design small space;
6.Automatically open the pneumatic rack insurance device when the lift down, super durable slide block;
7.Mechanical safety, double Hydraulic System pneumatic safety lock release system
8.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable
9.24V safety control circuit. Easy operation the electric control cabinet.
Technical parameter | Model | SHL-Y-J-40X |
| Lifting Capacity | 4000kg |
| Host Lifting Height | 1850mm |
| The Host Platform Length | 4500mm |
| The Host Platform Width | 610mm |
| Second Jack Lifting Height | 450mm |
| Motor | 2.2kw |
| Power | 220V, 380V |
| Air Pressure | 0.4-0.6mpa |

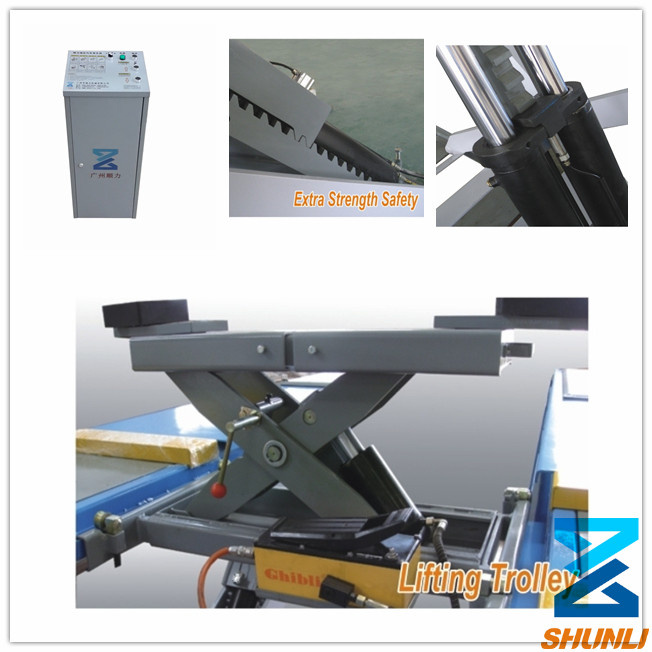

Product Details

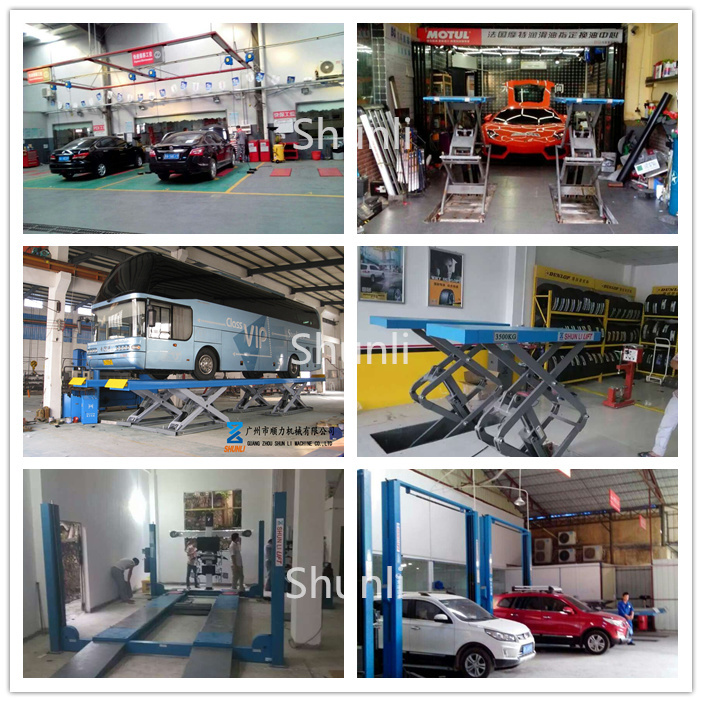

Service Case
Product advantage1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost o after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,size accurate, machine the whole shape designs cultured beauty.
| Prod Model: |
SHL-Y-J-40X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
2.2kw |
| Lifting Height (Main Machine): |
1850mm |
| Main Lifting Capacity: |
4000kg |
| Second Lifting Capacity: |
4000kg |
| Lifting Capacity: |
4T |
| Certification: |
ISO |
| Design: |
Scissor |
| Type: |
3 Cylinder Hydraulic Lift |
| Brand: |
Shunli |
