| Prod Model: |
CC-690 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L9.5m*W3.8m*H3.1m |
| Control System: |
PLC |
| Brush: |
9 Brushes |
| Automatic Type: |
Fully Automatic |
| Car Wash Speed: |
50 Cars/Hour |
| Shampoo Consumption: |
7 Ml/Set |
| Style: |
Through Style |
| Physical Machine Type: |
Mechanical Cleaning Method |
| Usage: |
Transportation |
| Machine Type: |
Electric Heating High Pressure Cleaning Machine |
| Fuel: |
Electric |
| Certification: |
CE, ISO14001 ISO9001, ISO |
| Material: |
Galvanied Frame |
Product Description
Qingdao Risense Mechatronics Co., Ltd. As a prominent manufacturer, supplier and exporter, has grown to be a leading force to produce all kinds of car wash machine with the MK's advanced technology and core components from Japan. Our specific goal was to develop a complete line of car wash machine easy to install, use, and maintain.
Product Description

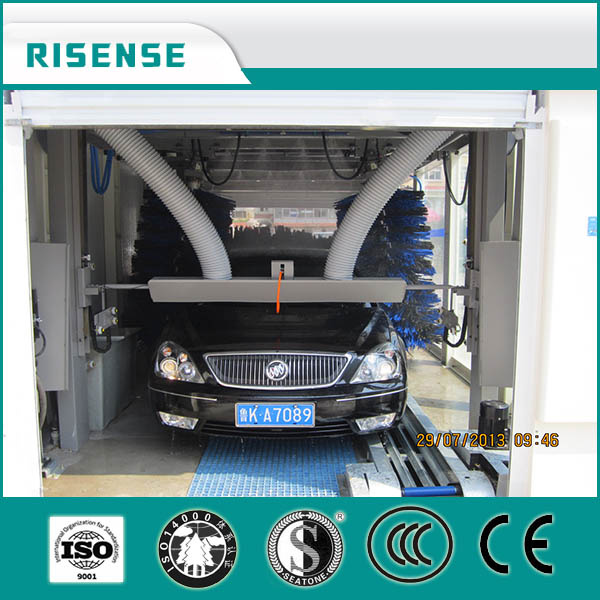

Risense CC-690 is a type of car wash system suitable for high speed car wash. It can be used to wash around 500 cars a day. And all the process is automatic and only one worker is needed to operate the machine.
Feature
1. Technology originally and Stable motors from Japan guarantee reliable function.
2. Tiltable side brushes
3. Waterproof motor
4. Inclinable side brush strengthens cleaning ability around the car.
5. Car shape imitating dry system.
6. Continuously washing car after car
7. Long durable time: More than 10 years
8. Fault self-detect function
|
Machine size |
L10500mm×W3800mm×H3100mm |
|
Conveyor size |
L11580mm(wheel guiding device included) |
|
Total electric capacity |
23KW |
|
Wheel brush motor |
0.3kw×4 |
|
Side brush motor |
0.3kw×4 |
|
Top brush motor |
0.3kw×1 |
|
Conveyor motor |
1.5kw×1 |
|
Air dryer motor |
5.5kw×2 |
|
Water pump motor |
1.5kw×1 |
|
Driving motor |
0.2kw×1 |
|
Top brush lifting motor |
0.2kw×1 |
|
Top fan lifting motor |
0.2kw×1 |
|
High pressure water swing |
0.2kw×1 |
|
High pressure water |
5.5kw×1 |
|
Maximum electric capacity |
23KW |
|
Cars Suitable |
car,jeep,coach within 10 seats |
|
Size Suitable |
L5300mm×W2300mm×H2200mm |
|
Washing efficiency |
50-55cars/hour |
|
Water Consumption |
150L-260L/car |
|
Electricity Consumption |
0.8kwh/car |
|
Shampoo consumption |
7ml/car |
|
Wax consumption |
12ml/car |
|
Assemble size |
L11580mm×W3800mm(machine only) |
|
Electicity supply |
AC380V/220v,50Hz/60Hz(5 wire ) |
|
Water supply |
pipe DN25 flow≥200L/min |
|
Air supply |
0.75~0.9Mpa(7.5~9.0kgf/cm2)/flow≥0.1m³/min |
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
