Features:
1. Can identify the car model with photoelectric and approaching sensors.
2. Hot-dip galvanized frame can keep the whole machine stable and long life use.

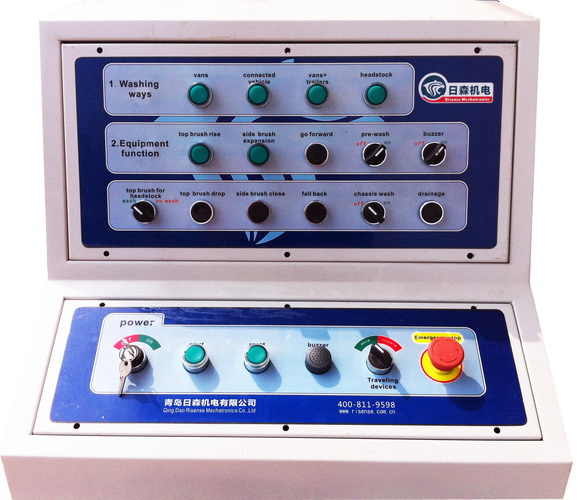

3. PLC electronic control panels system can easy to operate and maintain.
4. The dovetail foam brush makes the car washing more quiet and clean.
5. High quality control systems, motors and pumps from Japan can keep the car wash running with great performance in any conditions.
6. The high sensor on the top brush can keep the bus from damage.
7. The motor with IP67 make the machine work well in the water condition.
8. Fully automatic wash rolls over the rails and easy to install, operate use and maintain.
9. With on-site installation and operate training for free and long time quality guarantee to whole car wash.
Bus Washer Equipment |
Catalogue | Item | CB-720(two brushes) | CB-730(three brushes) |
Size | Machine szie | L21500×W4680×H5490mm |
Track size | 24000mm |
Consumption | Total electric capacity | 8.11kw | 8.86kw |
Size Brush O/P Motor | 0.37kw×2 |
Side brush motor | 0.75kw×2 |
Top brush motor | | 0.75kw |
Top brush lifting motor | | 0.55kw |
Driving motor | 0.66kw×2 |
Pump motor | 4.0kw |
Top electric capacity | 8.11kw | 8.86kw |
car washing | Wash models | Bus/Double-decker bus |
Wash size | L18000mm×W2700mm×H4200mm |
Normal wash car ways | three brush half rollover/three brush one rollover/two brush half rollover |
Wash time | 12-15cars/h |
Usage cost | Calculate according to local water and electricity prices |
Water consumption | 220L/car |
Electricity consumption | 0.54kwh/car | 0.59kwh/car |
Shampoo consumption | 25ml/car |
Installation | Installation range | L21000mm×W5200mm,bothsides should keep checking passangeway |
Move range | L21000mm×W4800mm |
Power supply | three-phase AC380V/220v,50Hz/60Hz |
Water suuply | Pipe diameterDN25 flow rate≥120L/min |
Other requirement | Ground roughness≤10mm |
Additional | High pressure device | optional |
High pressure water | optional |
Water saving | optional |
Bottom wash | optional |
Configuration instruction | Frame | Galvanizing by dipping |
Brush material | Aluminium alloy brush pipe,The integral type nylon Brush |
Side brush motor | SITI (Itlia) |
Top brush motor | | SITI (Itlia) |
Driving motor | Thunis |
Water pump | CNP |
Other | 1 year limited warranty |
contact us:
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.
Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
