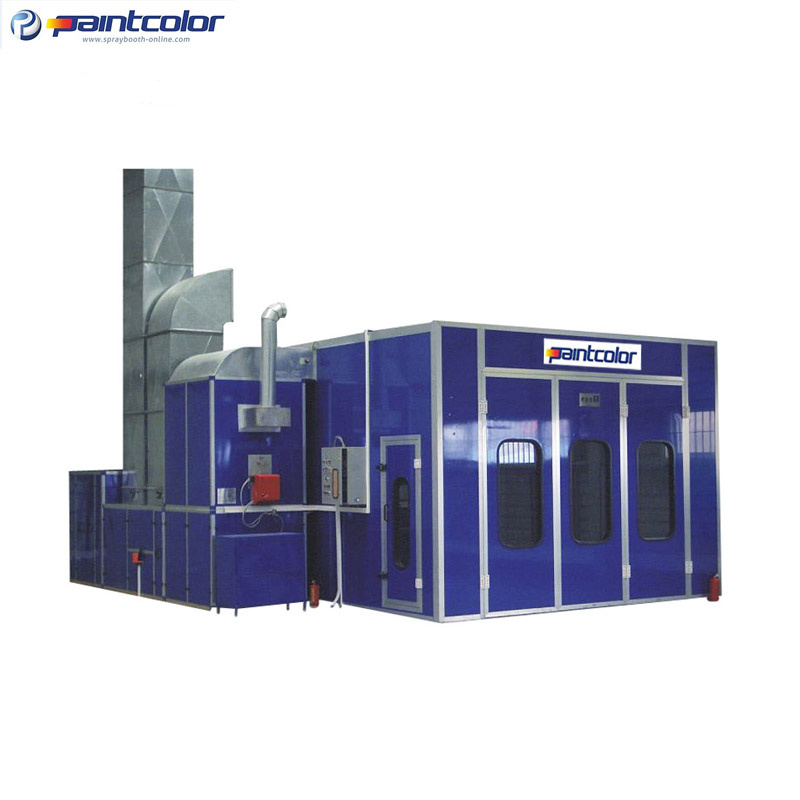

Rg5s Big Burner Full Grills Auto Spray Booth (PC06-500)
| Price: |
US $ 8000-12000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Money Gram,Western Union |
| Prod Model: |
PC06-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/3p, 220V/1p, and Special Voltages |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |

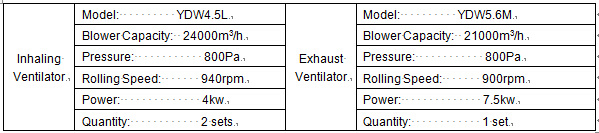

| Air Intake: |
2X4kw Double Air Intake Centrifugal Fan |
| Air Exhaust: |
1X7.5kw Centrifugal Fan |
| Heating: |
Rg5s Diesel Burner/ RS5 Gas Burner |
| Wall Panel: |
50mm or 70mm EPS, Rock Wool or PU |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
| Airflow Direction: |
Full Downdraft Airflow Way |
| Type: |
Automotive Spray Booth |
Product Description
Model No: PC06-500
Europe popular model, bigger burner RG5S with 260000kcal/h for better heating capacity.
1. Outside Dimension(L×W×H)mm:7000×5560×3430
2. Inside Dimension(L×W×H)mm:6900×4000×2650
3. Door Dimension(W×H)mm:3000×2600
4. Blast Volume: 24000 m3h/set
5. Loaded Airflow Velocity m/s:0.3
6. Air Replacement Frequency time/h:315
7. Maximum Working Temperature:80ºC
8. Heating Time(20ºC—80ºC)/min:4-5
9. Luminance: 800(Lux)
10. Noise: ≤85dB
11. TSP:≤1.2mg/m3
12. Total Power:17.7kw
Outside dimension:7000×5560×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 650×1800mm(W×H);
Cabin system:
1) Wall panel: 70mm thick flame-resistant and heat-preserving EPS board; 0.476 thick colored steel.
Roof panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.476 thick colored steel;

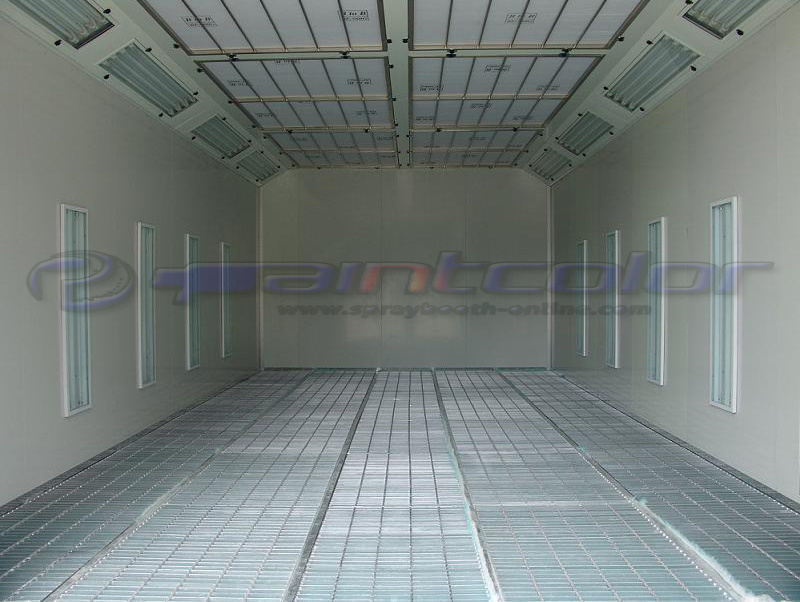

2) Basement: adjustable base, complete grilles, three ramps, height is 280mm;
Air circulation system:
One set automatic electric damper, 20N actuator
Generator: separate air inlet and outlet duct and cabin; quadrate steel frame; powder coated;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;
Heat system: RIELLO RG5S gas burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; the heating time is 4~5 minutes;
Lighting system:≥1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W
Side Vertical Lights: 8Groupsx2Pcs=16Pcs x36W
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter. Total power: 17.7KW
