Reliable Performance Popular Style 3000 Lb ATV Winch

Name: Reliable Performance Popular Style 3000 Lb ATV Winch
Brand: ibuyautoparts.com
SKU: 838521465
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 43-49PCS
Min Order:	36PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

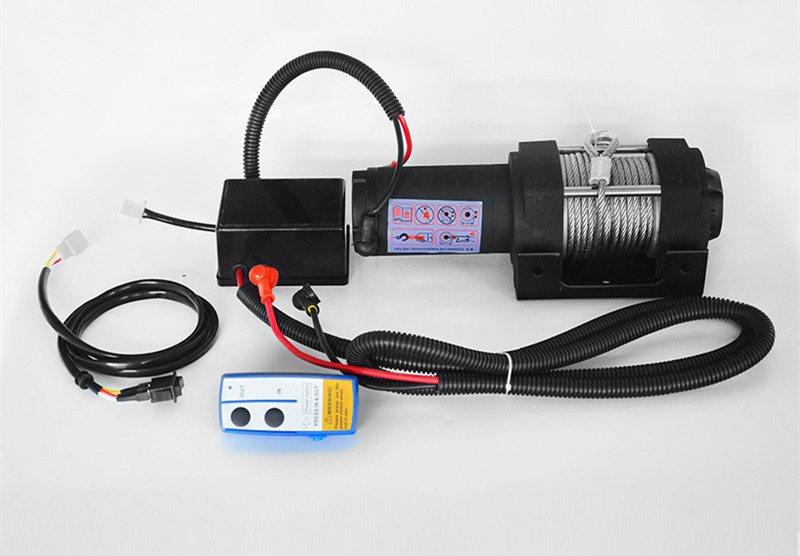

Portable winch with powerful pulling ,high-performance Permanent magnet DC motor . Steel gear with single gear driven train design ,run smoothly with low noise &low amps ,Separated solenoid control box .Both wireless and wire remote controls available .Reliable and Durable performance ,you are stuck when you are on off-road , Let's us get you out of it !
3500 LBS Features and Specifications :
Part Number : M-XA801
Pulling rate :          single line 3000lbs(1360kg)
Motor: DC 12 V 1.2hp/0.9 kw permanent magnet
Braking action:       Dynamic
Clutch: Sliding ring gear
Gear train : Planetary gear
Gear ratio: 153: 1
Switch: Wire remote control with mini rocker handbar ,Wireless remote (optional)
Fairlead: 4-way roller fairlead & Mounting plate included
Steel cable: 4.8mm x 12.5 m
Weight: 22 lbs (10kgs)
Overall dimension:     12.8" x 7.11" x 4.18" (326mm x 180.5mm x 106.2mm)

Prod Model:	XM-XA801
Pulling:	3500 Lb
Durable Cycle:	10000 +
Size:	Compact Design
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Certification:	RoHS
Pull Direction:	Forward and Backward
Working Voltage Of Electric Winch:	12 or 24 V

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
