Prod Model: |
2R-34T-500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Fin Surface: |
Bare Fin, Hydropjilic Fin, E-Coating |
Fin Material: |
Copper, Aluminium, Stainless Steel Be Viable |
Maximum Working Pressure: |
7.0mpa |
Liquid Flow Rate: |
2.5m/S |
Design Serice: |
Be Viable |
Plate Material: |
Galvanized Steel |
Tube: |
Smooth Tube, Thread Tube |
Tube Diameter: |
7mm-15.88mm |
Package: |
Wooden/Crate |
Painting: |
Customized Such as Black, Yellow etc |
Type: |
Coil |
Component: |

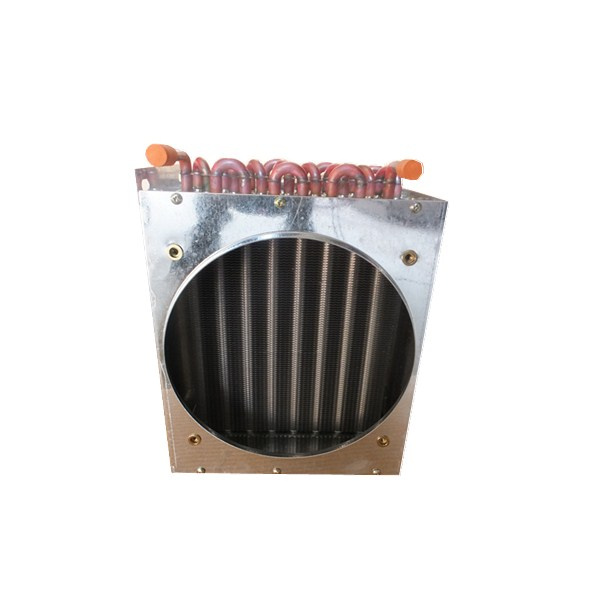

Refrigeration AC Coil |
Product Description
Advantage:
1. Brazed Aluminum construction
2. Combination welded cores-Air&Oil cores
3. Brazed aluminum core/bar and plate
4. Excellent for field conversions
5. Compact design
6. Light weight
7. State-of-the-art heat transfer technology
8. Compact, high performance all aluminum core assembly
9. Designed specifically for rotary screw compressor
Specifications:
Tube-fin heat exchangers consisting of 1-12 rows of tubes passing through sheets of formed fins, bonded through tube expansion.
It come with various tube, fin, and material options. As warm air passes across the coil and contacts the cold surface, heat transfers from the water flowing through the tubes to the air entering the coil. Have many different applications. Coil Specialist, Inc. Has the capabilities to provide you with the exact chilled water coil to meet your rigorous specifications.
Our coatings are numerous and range from E-Coating that can withstand the harshest environments to pre-coated fin stock that can withstand 1000-2500 hours salt spray depending on needed protection. The versatility of Coil Specialist Inc. Allows us to provide you with virtually everything you need. Call us today and see how we can help you.
Patterns:
1. Tube: O. D: 7mm, 7.94mm, 9.52mm, 12.75mm, 15.88mm
2. Row space: 12.7mm, 13.2mm, 15.88mm, 19.05mm, 22mm, 21.65mm,
27.5mm, 33mm, 34.64mm
3. Fin thickness: 0.105mm-0.24mm
4. Hole space: 17.6mm, 20.4mm, 21mm, 22mm, 25.4mm, 25mm, 31.75mm
Product application areas:
1. Commercial air conditioner
2. Refrigerator
3. Transportation
4. Fan coil
5. Display cabinet
6. Refrigerated vehicle
7. Air conditioner's handling unit
8. Ice maker
9. Refrigerated container
10. Moisture eliminator
11. Drink machine
12. Other industry, such as Desalination, chemical etc
How Heat Transfer Works
1. Heat transfer occurs when there is a difference in temperature between two mediums
2. Heat will travel from the hot source to the cold source.
3. The rate at which the heat transfer occurs at is determined by many factors such as the heat conductivity of the two materials and the difference in temperatures of the two mediums.
4. Heat transfer occurs when the materials are moving against each other.
5. It have significantly good heat transfer rates because they use metal plates which have high heat conductivity rates and the plates are extremely thin.
6. The plate heat exchangers also achieve high amounts of heat transfer through convective forces with both working fluids.
7. With large temperature differentials, great amounts of heat transfer can be achieved. Fin
Type | Copper
Tube
O.D.
(mm) | Row
Space(mm) | Hole
Space(mm) | Fin
Thickness(mm)
| Fin Space(mm) |
Flat fin | Sine wave with
blade fin | Smooth sine wave fin | Window
fin | Sesamoid
fin |
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / |
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / |
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / |
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / |
E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / |
G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / |
I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / |
K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1º C and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
