Prod Model: |
CF-330-1 |
Fuel: |
Electric |
Certification: |
ISO9000 |
Material: |
Metal |
Condition: |
New |
Function: |
Shampoo Washing |
Product Description
Qingdao Risense Mechatronics Co., Ltd.
Since Jan 1st, 2010, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on.

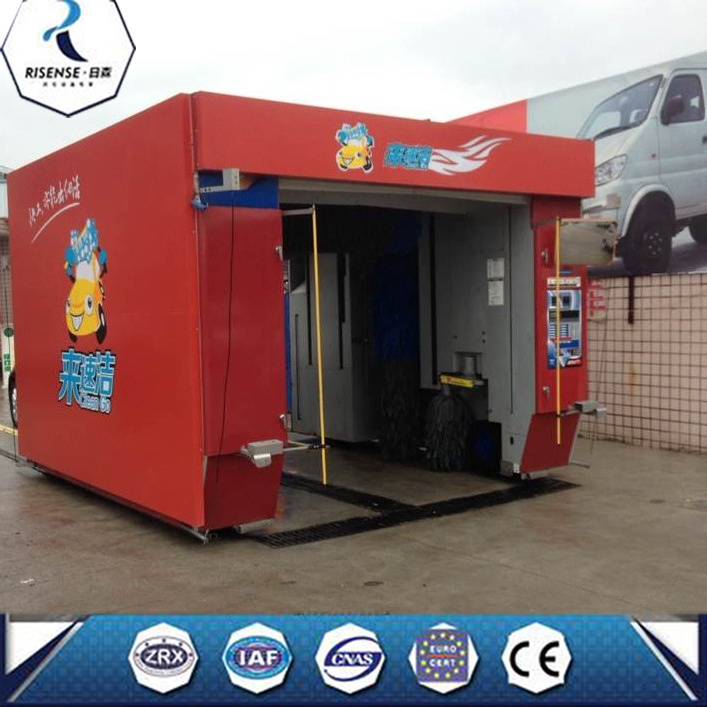

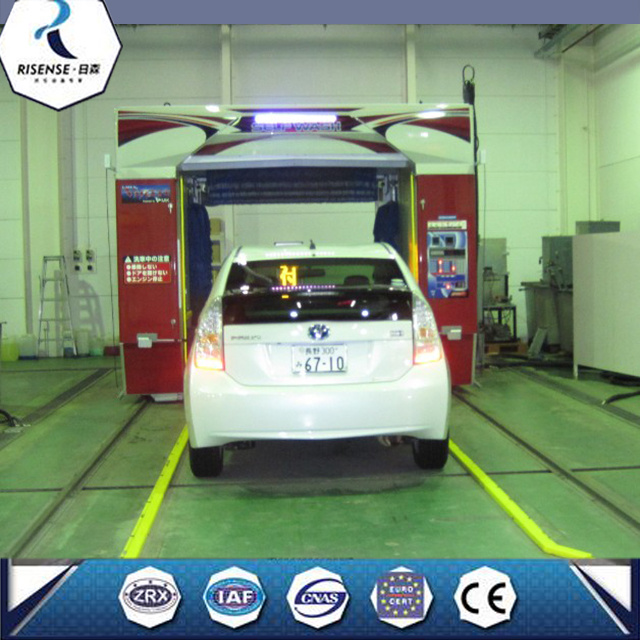

Mark & model : Rollover car wash machine CF-330 is equipped with new-generation car model detection technology which is featured as combination of various ways of car washing and fast speed of cleaning.
Main Features
1.Hot-dip galvanized steel frame can keep the whole machine stable and long life use.
2.PLC electronic control system can easy to operate and maintenance.
3.Fully automatic with photoelectric starting
4.High pressure water washing, shampoo washing, waxing and dryer.
5.Five dovetail foam brushes keep the car body no damage and quite clean.
6.Main parts and motors made in China keep the machine great running
Main parts
1.Control panel
2.Motors for brush
3.Foam material brushes
4.PLC control system
5.High pressure pumps
6.Dryer systems
Specification ..................
Overall dimensions | 2510x3600x3150mm |
Assembling range | 11000x3700mmx3300mm |
Available size for car | 5200x2150x2270 |
Available car to wash | sedan cars,SUV,Jeep,mini bus |
Washing time | 2'45''(1 rollover)3'25''(2 rollovers) |
Car washing capacity | 15-2045cars/hour |
Mains voltage | 3phase/AC 380V/50HZ/60HZ |
Total power | 11KW |
Water supply | DN25mm Waterflow rate≥80L/min |
Air supply | 0.75-0.9MPa Air flow rate≥0.1m³/min |
Water/electricity consumption | 72L/car, 0.31kw/car |
Shampoo consumption | 7ml/car |
Polishing wax consumption | 12ml/car |
Risense takes great pride in offering our car wash solutions for your consideration to make your car wash business booming. We are happy to answer any questions you may have or discuss with you which machine is best suit for your needs.
Since Jan 1st, 1998, Risense has been introducing technical information, production and inspection standard, technical engineers and key spare parts from technical-advanced counterparts abroad in order to manufacture the state-of-the-art car wash machine equipped with CPU, which is qualified to complete the car wash procedure precisely and have such subsidiary functions as LED screen, voice guiding, detailed data management, car wash printer and so on. The advanced technology reaching the same level of foreign counterparts and the technical elites cultured by the Risense with the support of cooperative partners ensure the quality of products and make them the best-sellers. Since the date that our products entering the market, Risense has built its reputation as the high-end technical innovation enterprise with its strong technical capacity holding a safe lead of more than 15 years against other insiders and applause of customers for the quality and operational security of products.

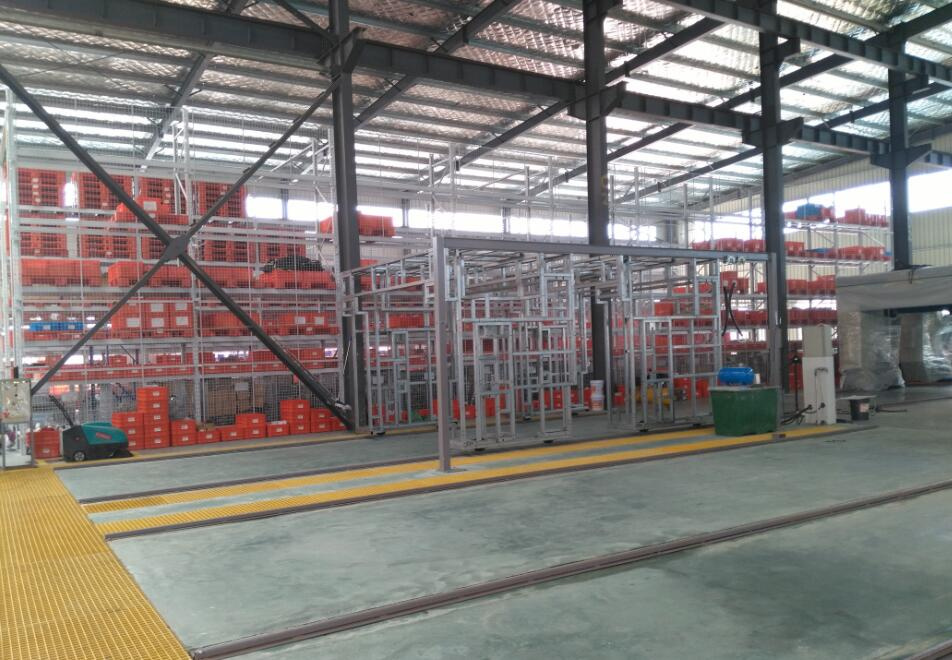

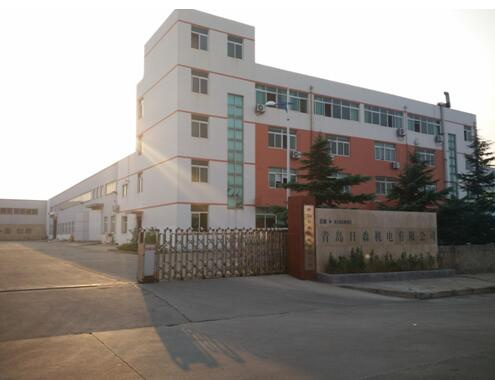

Located at Haier Industrial Park of Economic and Technological Development Zone, Qingdao, Risense covers a total area of 40 mu with floor area of more than 10000 square meters and plants in service of more than 7000 square meters. At present, Risense boasts to possess more than 120 personnel, including 32 senior technicians and the annual production capacity of 1000 car wash machines.
To answer the urgent call of customers, Risense has been launching a series of high-tech and high cost performance car wash machines since March, 2010 to effectively meet customer demands of less manpower, high efficiency, water conservation and environmental protection.
