SWC Cardan Shaft / Propeller Shaft / Drive Shaft / Universal Joint Shaft / Transmission ShaftProduct Description:A Seris Cardan Shaft

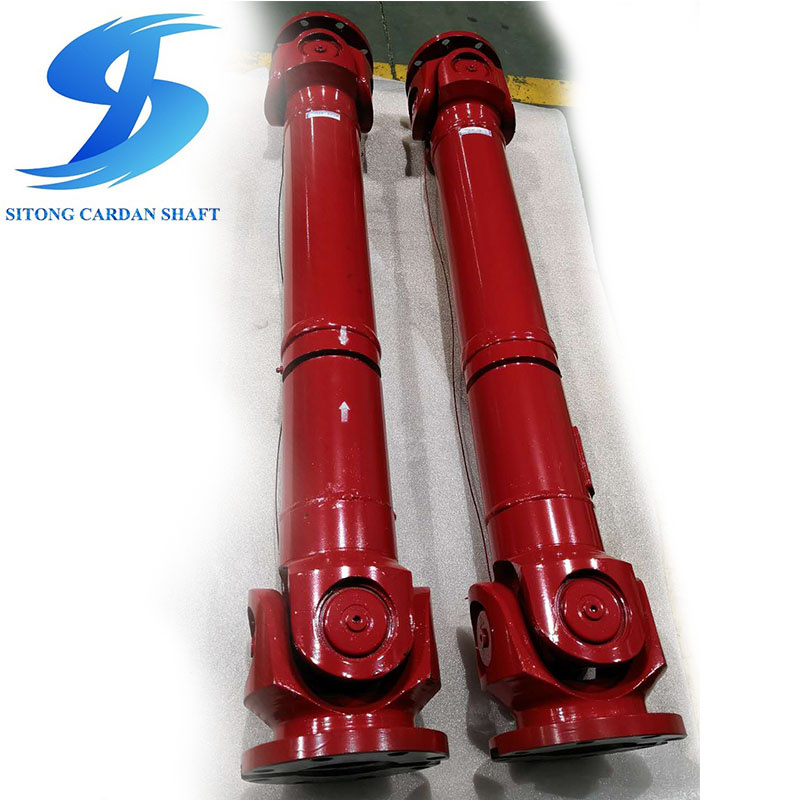

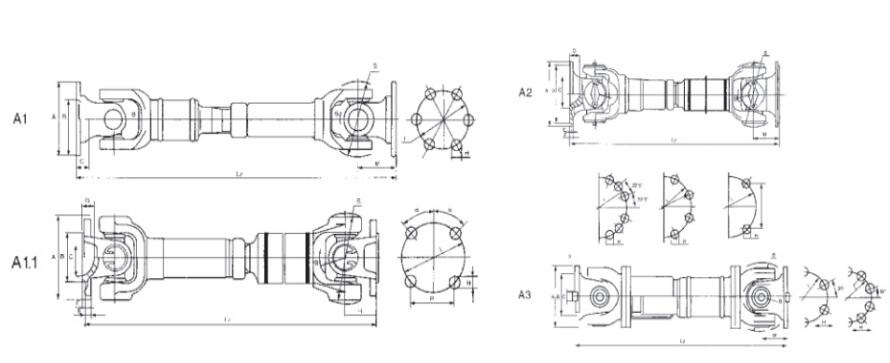

A Seris Cardan Shaft Parameter and Dimensionsof A Seris Cardan Shaft| Model | Mmax | A | | B | C | E | F | G | M | S | I | | n-H | Lz | La |
| A1-1 | 500 | 75 | 30° | 42 | 38 | 5.5 | 2 | 16 | 52 | 83 | 62 | | 6-6 | 430 | 30 |
| A1-3 | 530 | 90 | 30° | 47 | 36 | 6 | 4 | | 48 | 83 | 75 | | 6-8.5 | 430 | 30 |
| A1.1-4 | 1100 | 100 | 25° | 60 | 50 | 7 | 2 | 13 | 41 | 93 | 80 | 50 | 4-10.2 | 370 | 30 |
| A1.1-5 | 2000 | 148 | 25° | 95 | 86 | 11 | 2.5 | 31 | 78 | 130 | 120 | 40° | 4-14.5 | 580 | 40 |
| |
| A2-1A | 1300 | 120 | 20° | 70 | 60 | 8 | 2.5 | 22 | 50 | 114 | 96 | 62 | 4-12 | 500 | 40 |
| A2-2 | 1940 | 148 | 20° | 95 | 86 | 11 | 2.5 | 31 | 62 | 139 | 20 | 40° | 4-14.5 | 550 | 40 |
| A2-4A | 3900 | 205 | 20° | 198 | | 11 | 2 | 35 | 77 | 187 | 185 | | 8-11 | 615 | 40 |
| A2-5A | 7800 | 205 | 20° | 198 | | 11 | 2 | 35 | 86 | 205 | 185 | | 12-11 | 700 | 45 |
| A2-6 | 12700 | 250 | 15° | 240 | 180 | 18 | 4 | 24 | 94 | 235 | 220 | | 8-14.3 | 770 | 45 |
| |
| A3-1T | 25000 | 225 | 10° | 135 | 30 | 18 | 7 | 9 | 125 | | 196 | | 6-19 | 1165 | 120 |
| A3-1 | 25000 | 265 | 10° | 160 | 30 | 20 | 7 | 9 | 116 | 265 | 230 | | 6-21 | 1150 | 115 |
| A3-2 | 50000 | 290 | 10° | 168 | 32 | 30 | 7 | 9 | 150 | 290 | 250 | | 10-23 | 1420 | 100 |
| A3-3 | 35000 | 315 | 10° | 190 | 32 | 35 | 7 | 9 | 160 | 310 | 280 | | 10-23 | 1500 | 100 |
| A3-4 | 40000 | 380 | 10° | 220 | 32 | 30 | 8 | 9 | 175 | 354 | 340 | | 10-23 | 1500 | 100 |
| A3-5 | 60000 | 380 | 10° | 220 | 40 | 30 | 8 | 15 | 175 | 354 | 340 | | 10-23 | 1500 | 100 |
| A3-6 | 80000 | 380 | 10° | 220 | 40 | 30 | 8 | 15 | 185 | 380 | 340 | | 10-23 | NOT | |
| A3-7 | 100000 | 380 | 10° | 220 | 40 | 30 | 7 | 15 | 175 | 380 | 340 | | 10-23 | 1590 | 100 |
| A3-8 | 160000 | 400 | 10° | 235 | 70 | 40 | 10 | 18 | 205 | 400 | 355 | | 10-25 | 1650 | 100 |
| A3-9 | 250000 | 450 | 10° | 310 | 80 | 42 | 10 | 20 | 215 | 420 | 400 | | | 1640 | 100 |
Marks:
1, Mmax= The max work torque
2, Lz = Min length after compression
3, La = Length compensation
4, Lz+La = The max work length
5, B = Schneider precision
6, n = number of flange holes
7, The A3 series allows the middle without flange connection,use a fork and a welded pipe to weld directly
8, If you have other requirements (big flange, big compensation etc.), please contact our design department.
A3-9 The size and quantity of flange hole need to discuss together.
Our Materials:We always choose the best materials, even if the price of steel has been adjusted.
We never reduce our product quality because of the price. For us, quality is always the first.
Working with us, we believe you will never be disappointed.

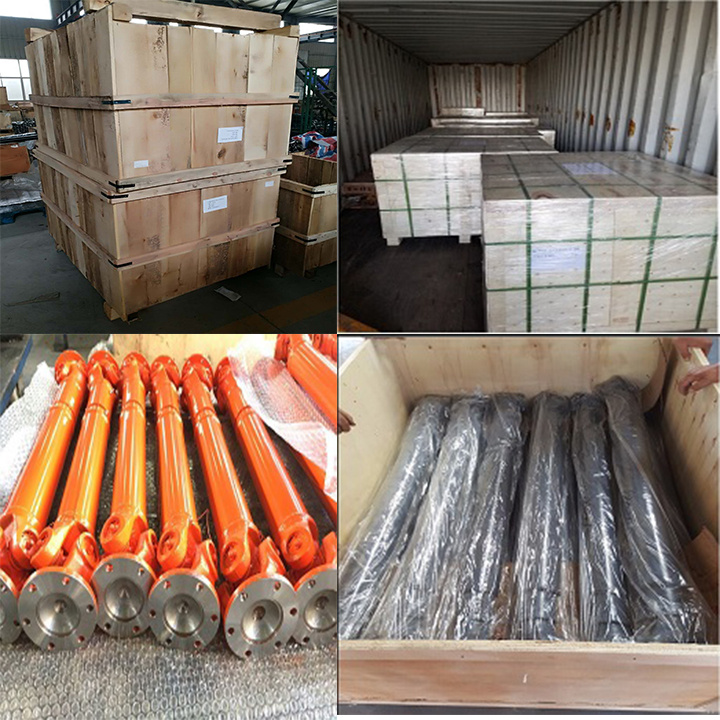

Packaging & Shipping:All packing methods are according your requirements.
