| Prod Model: |
R600 |
| Communication Mode: |
Infrared Wireless Communication |
| Condition: |
New |
Product Description

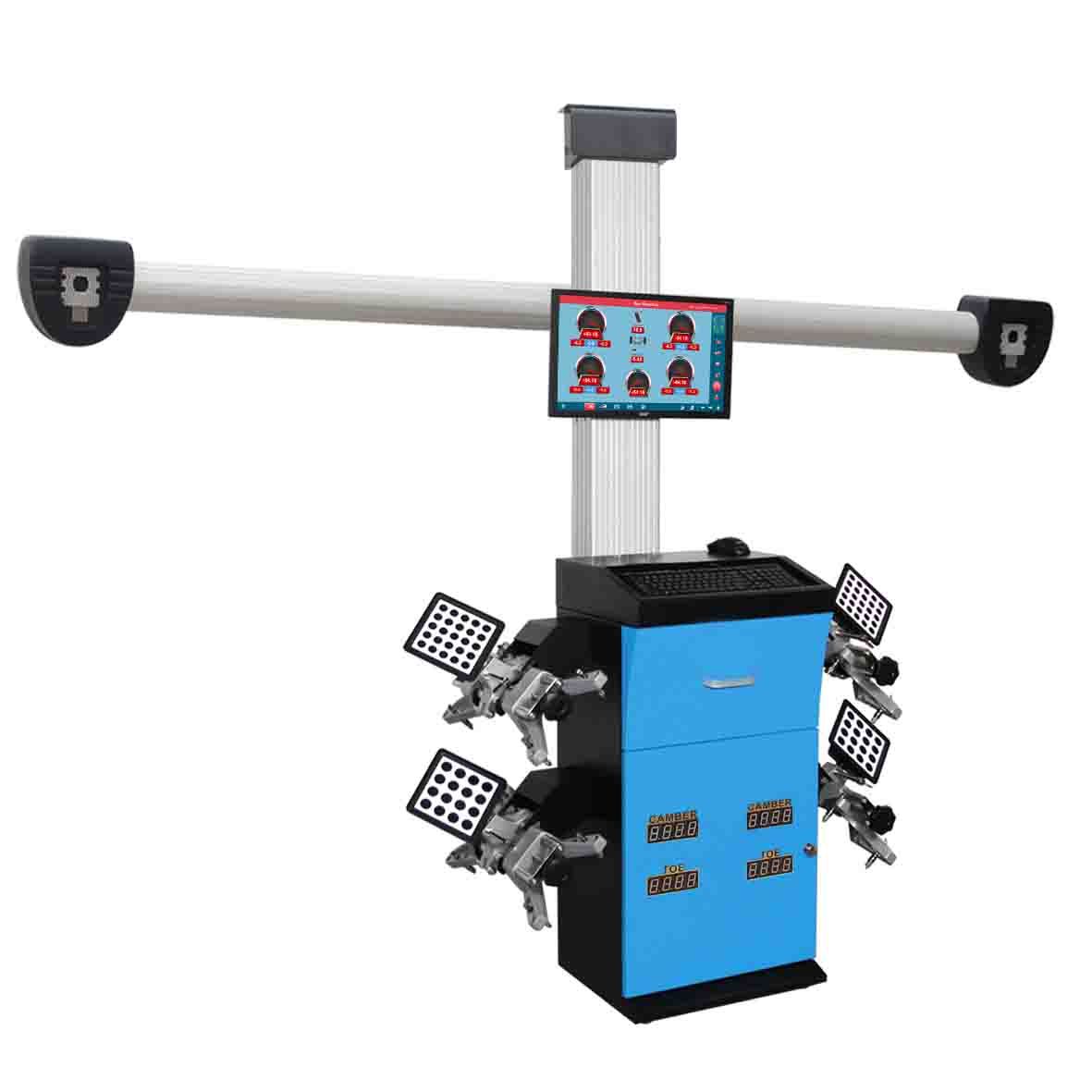

R600-3D wheel aligner
R600 Newest Function: 2 Post & Mini Scissor Car Lift's Four Wheel positioning Function Feature:
1. Chinese Windows OS, operation process can be easily guided by "Next step" instruction.

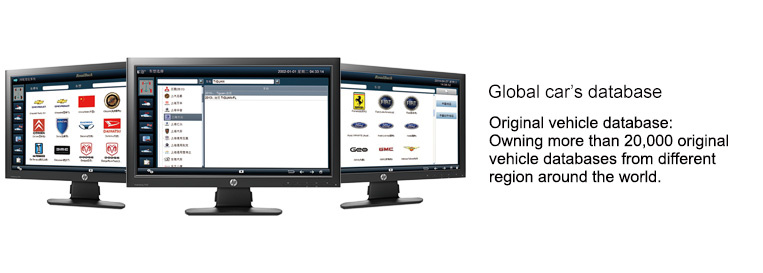

2. Exceed 20,000 database around the world and with a lifetime update service.
3. Repeat measurement accuracy is ±0.03,which be a world's leading level.

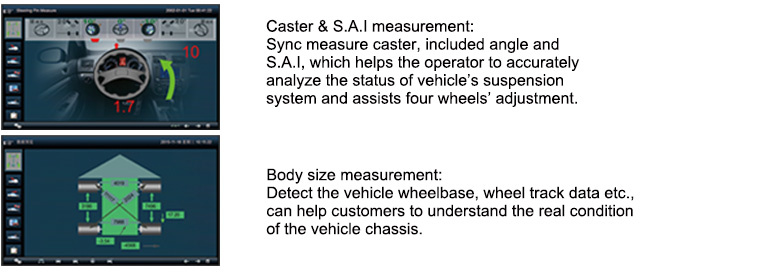

4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.

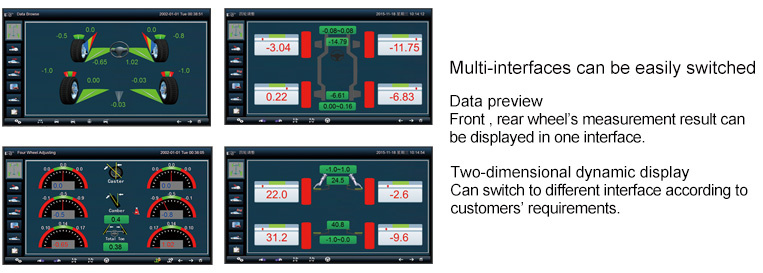

5. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.

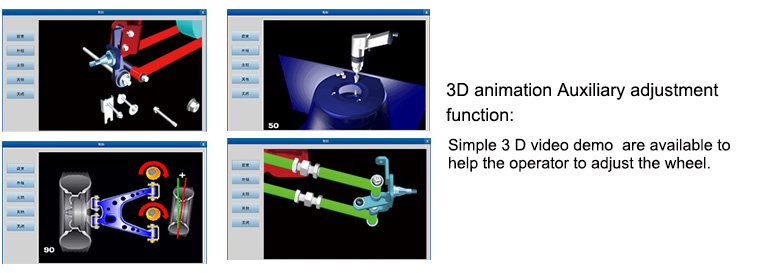

6. Humanized software design, animation video can be used to help technician more quickly complete the operation.
7. Ultra-low chassis and refit vehicle-Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.

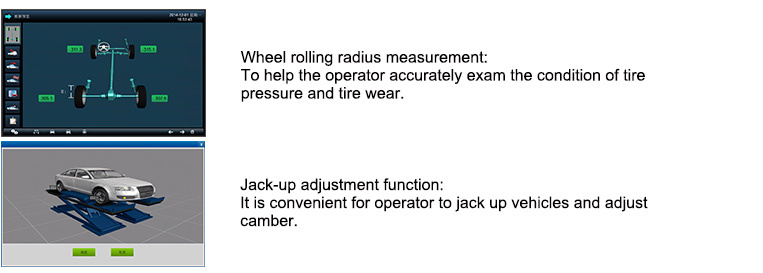

8. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.

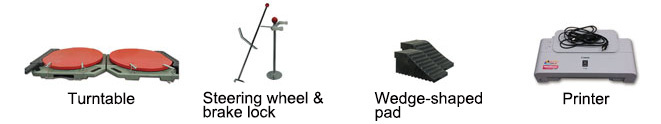

Standard configuration:
. Options: "ROADBUCK" Application software could be installed in the Table PC with Android system. Clients can long-distance operate the wheel alignment measurement
through Bluetooth.
. Packing assistant camera function: independent web camera can guide the vehicle pack in the specific location.
. Apply high strength plastic target, which is lighter, thinner and stronger.
. Fast installation, suitable for all rims between 12"-23" . Double chuck, which can install both on iron and aluminum wheel hub.
. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get smaller.Intelligent LED navigation system: the operator doesn't need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.
.6 Double display LCDs can make sure the operator clear recognize the data on the screen in any angle and condition during operation, thus improving the working efficiency.
.7 According to weight of camera beam, the lifting pillar equipped with two pieces of metal counter weight, which can efficiently lower the motor working pressure, thus prolonging the working life. Equipped with low-speed motor aluminum alloy pole, which can achieve stable and unshakable lifting speed. Microcomputer control box support both hand and remote control operation.It can automatically track vehicle's packing position according to the lift height during operation. Adjusting the height of camera beam to the best shooting position to make sure accurate measurement.
Technical parameters:| ITEMS | Front wheel measurement precision | Front wheel measurement range | Rear wheel measurement precision | Rear wheel measurement range |
| TOE | ±0.02 | ±20° | ±0.02 | ±20° |
| CAMBER | ±0.02 | ±15° | ±0.02 | ±15° |
| S.A.I | ±0.02 | ±26° | x | x |
| CASTER | ±0.02 | ±26° | x | x |
| THRUST ANGLE | x | x | ±0.02 | ±5° |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
