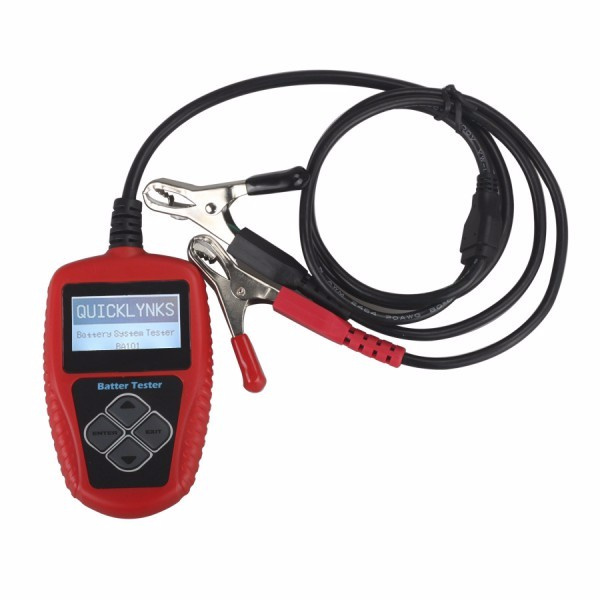

Quicklynks Ba101 Automotive 12V Auto Battery Tester Vehicle Battery Analyzer (100~2000 CCA)
| Price: |
US $ 42.6-44.9/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
QUICKLYNKS BA101 Automotive 12V Vehicle Battery Tester
QUICKLYNKS BA101 Automotive 12V Vehicle Battery Tester Advantage:
1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.
8. Languages: English,
9. Quick test-input battery volume (AH), then it can show the battery status.
10. vehicle cranking system test--- cranking time, voltage and status.
11. vehicle charging system test-load voltage, unloaded voltage, ripple status and charging system status.
12. Store the testing result, print function
QUICKLYNKS BA101 Automotive 12V Vehicle Battery Tester Benefit:
1. Conductance correlates directly to the battery capacity
2. Passive testing method is safe.
3. Never discharges or drain the battery.
4. Able to test condition of discharged battery.
5. Consistent and repeatable results.
6. Provides unique indication of battery conditions.
7. Provides check the Alternator's charging and Starter's cranking conditions. It is maintenance free and no internal batteries required.
8. Powers up when connected to the battery posts during testing.
QUICKLYNKS BA101 Automotive 12V Vehicle Battery Tester Function:
Test Result: Good or Replace
Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m )
Life in percentage (%)
Cranking system
Charging system
Quicklynks BA101 Battery Test Result
Battery test result includes 5 types as following:
1) Good Battery
The battery is without any problem, please be relaxed to use!
2) Good, Recharge
Good battery but low current, recharge before using.
3) Replace
The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.
4) Bad Cell, Replace
Battery interior damaged, bad cell or short circuit, replace battery.
5) Charge, Retest
Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded as damaged, replace the battery.
Attention: If "Replace" resulted from IN-VEHICLE mode, it might be the reason that vehicle cable is not well connected with the battery.
Ensure to cut off the cable and retest the battery under OUT-OF-VEHICLE before making a decision to replace battery.
NOTE: After testing, if need to Exit, press EXIT key to directly Exit to the startup interface.
After testing: if it's "IN-VEHICLE" test state, press ENTER key will bring to Cranking Test.
Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet
(Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption
Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC
are supported.
Operating Parameters:| System voltage | 12 Volts |
| Input voltage range | 9V~15V |
| Power requirements | No internal batteries required. Power on when hooked up during testing. |
| Testing range | 100 ~ 2000 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN |
| AH range | 30-220AH |
Package including:
1pc x QUICKLYNKS BA101 Automotive 12V Vehicle Battery Tester
| Prod Model: |
SP81-A |
| Product Name: |
Quicklynks Ba101 |
| Material Type: |
Plastic |
| Delivery Time: |
Within 2 Working Days After Payment |
| Warranty: |
One Year Warranty |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
