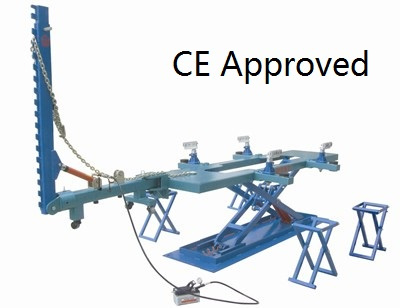

Quick Bench

Certificate: CE

Warranty: 3 years
SPECIFICATIONS:

Platform length------------------3400mm
Platform width--------------------800mm
Platform height-------------------120-1200mm
Pulling power of tower----------10tons
Pulling power of height---------1800mm
Post working range---------------60degree
Pneumatic pressure range ----0.8mpa
Total weight--------------------------1800kgs


Features:
1. The platform is made by Manganese plate.
2. The hydraulic towers can be moved freely alongside the side of the platform. The hydraulic
Cylinders work vertically, resulting in maximum force and most powerful effectiveness.
3. High quality chains and plate tools are used flexibly and conveniently with long
Life. The entire series of tools accessories enable to do any misshape correction work.
4. Hydraulic system with good design has powerful driving force, long life and low failure rate.
5. The mechanical measuring system more suitable for workers.
6. Major clamps fix the auto quickly, firmly and accurately.
7. Applying parallel-connect synchronous hydraulic cylinders with high synchronous precision;
The integral mechanical lock is processed one-time.
8. Without synchronous errors; The sharing beam adopts high quality manganese plate and all
The welding positions ensure the position of shafts and holes.
9. Special design for lifting forces; In order to longer life of the oil cylinder, special big bore
Cylinder is used. Under 15Mpa-17Mpa pressures, it can support vehicle as much as
3000KG/6000lbs.
