| Prod Model: |
1/4 Inch |
| Product Name: |
Fmvss 106 Air Brake Hose |
| Size Range: |
1/4 5/16 3/8 1/2 Inch |
| Applications: |
Use in Automotive Air Brake Systems |
| Standard: |
SAE J1402,Fmvss 106 |
| Certifications: |
ISO/ Ts 16949,DOT |
| Working Pressure: |
225 Psi |
| Flexure Test: |
1000000 Cycles |
| Temperature Range: |
-40 to 93 Degree |
| Accept OEM Manufacturing: |
Yes |
| Color: |
Black/Red/Blue |
| Type: |
Brake System |
| Material: |
Rubber |
| Position: |
Rear |
| Certification: |
DOT |
Product Description

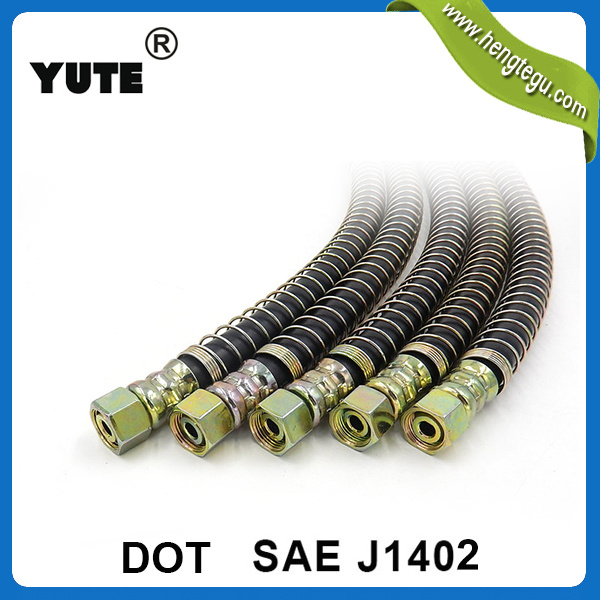

Profssional Fmvss 106 Air Brake Hose with Dot AMECA Approved
Applications
use in automotive air brake systems including flexible connections from frame to axle, tractor to trailer, trailer to trailer .Widely used in compressed air brake system of large and medium-sized truck and buses.
Construction
Tube:Black synthetic rubber
Reinforcement:High tensile braided fiber
Cover:Black ,red and blue ASTM IRM 903 oil-,ozone-resistant synthetic rubber compound
Working Temperature:-40ºC~+93ºC
Standard: SAE J1402,FMVSS 106
Flexure Test ≥ 1,000,000 cycles
sizes and technical parameters:
| No | I.D | O.D | W.P | B.P |
| inch | mm | Tolerance
(mm) | inch | mm | Tolerance
(mm) | Bar | PSI | Bar | PSI |
| 1 | 1/4 | 6.3 | ±0.3 | 19/32 | 15 | ±0.5 | 15.5 | 225 | 62 | 900 |
| 2 | 5/16 | 8.0 | ±0.4 | 43/64 | 17 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 3 | 3/8 | 9.5 | ±0.5 | 3/4 | 19 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 5 | 1/2 | 12.5 | ±0.5 | 29/32 | 23 | ±0.7 | 15.5 | 225 | 62 | 900 |
| 6 | 5/8 | 16.0 | ±0.6 | 1-1/16 | 27 | ±0.8 | 15.5 | 225 | 62 | 900 |
