Quick Details
Type: Spray Booths
Power: 37KW
External Size: 7000x5430x3300(mm)
Internal Size: 6900x3900x2600(mm)
Voltage: 3phase 380V / 220V/415V 50Hz 60Hz
Certification: ISO9001:2008
Disc Dia.: None
No Load Speed: None
Place of Origin: Guangdong, China (Mainland)
Brand Name: Weilongda
Model Number: WLD6000
Exhaust filter: Multilayer glass fiber fixed in the air outlet
Ceiling light: 24 pieces of 36w lamps
Packaging & Delivery
Packaging Details: | Polyfoam and carton,1 set in a 20GP container;4 sets in a 40HQ container |
---|
Delivery Detail: | 7-10 days after receiving 30% deposit |
---|
Specifications
14 years paint booth factory
Cheap price and high quality
Furniture use available
Good service and timely delivery
Established in 2000,our factory is a very big and professsional spray booth,prep station
and mixing room manufacturer in Guangzhou,China.Welcome to visit us.

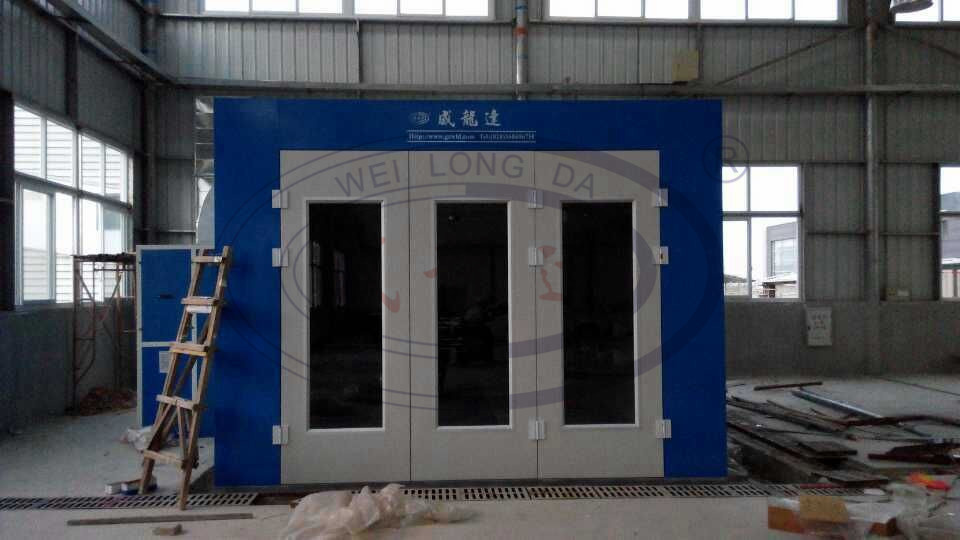

WLD6000 Infrared Heating Car painting Oven (Economic Type) Specifications:
External Size:(mm) | 7000x5430x3300 | Front Door:(mm) Aluminum Frame | 3000(w)x2600(h) |
Internal Size:(mm) | 6900x3900x2600 | Total Power:(kw) | 37 |
Cabin System | Wallboard | Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) 50mm thickness, EPS foam Density is 14kg/m³ ;The colorful steel skin boards have been HDG(hot dip galvanizing ),service life can reach 20 years without rusting. It keeps high insulation performance with a low weight.Four colors for your choice,including blue,red,orange and white. High quality galvanized steel roof panel. |
Door | 3 pieces of luxury front doors with 0.8mm thickness colorful steel skin. Size:3000(w)*2600(h). 1 piece of emergency door. |
Air Circulation System | Intake Fan | 2x4kw intake fan,Siemens technology production,large air volume and low noise. |
Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe 750*750*1000, and 1piece of elbow. |
Filtering | Dual filtering structure. The primary filter can capture granules larger than 10μm.Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%. |
Heating System | Infrared lamp | Consist of 28sets of infrared lamp.Each set of infrared lamp have protected net. The electric heating exchange rate reaches 95%. Infared heat radiation have a feature of high penetration,efficient,no noise,pollution free etc. Max temperature reaches 80°C. |
Optional infrared lamp | Cosist of 10 sets of infrared lamp.Each set have a cover and 3 tubes,total 30 tubes. There is a stainless steel mirror refector for maximum heat projection efficiency. |
Air make up cabinet | The surface plate is galvanized plate, rust force strong, beautiful; The frame is made of high-quality hot-dip galvanized sheet repressionr, anti-rust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity. |
Lighting System | Light tube | Ceiling light has 24 pieces of 36w lamps. the grade of lighting box's dustproof and waterproof reach IP54 grade. |
Light box | Medallions of welded galvanized plate, by the spray treatment, stiffness, repeated disassembly easy deformation, surface brightness, color uniformity, heat is not easy to change color. |
Filtering System | Primary filter | Grade G2 plate type fiber glass filter ; Dual filtering structure. The primary filters can capture granules larger than 10μm. |
Ceiling filter | EU5 grade high efficient filter ;Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment,can reach 98%. |
Green filter for extraction plenum | Multilayer glass Fiber. The air cleanliness in the working environment can reach 98%. |
Ceiling filter support | made of tube steel frame, thickness of 1.2mm, epoxy powder coating, rust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton. |
Pollution Control System | Multi-layer fiberglass filter. |
Control system | Control panel | Standard control system |
Function | Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication, over-temperature alarm indication. |
Customize---Basement: Galvanized steel sheet and square pipe construction. 2 rows of grids with floor filter and 3 rows of checkered plates, 2 pieces of ramps.
