| Prod Model: |
GT326 Pro |
| Warranty: |
1 Years |
| Inside Clamp: |
12"-26" |
| Max. Rim Diameter: |
1120mm(44") |
| Delivery Detail: |
7 Days |
| Bead Breaker Force: |
2800kg |
| Max. Rim Width: |
420mm (16") |
| Color: |
Optional |
| Max. Wheel Diameter: |
1120(44'') |
| Rotate Speed: |
6-12rpm |
| Operating Pressure: |
8-12bar |
| Condition: |
New |

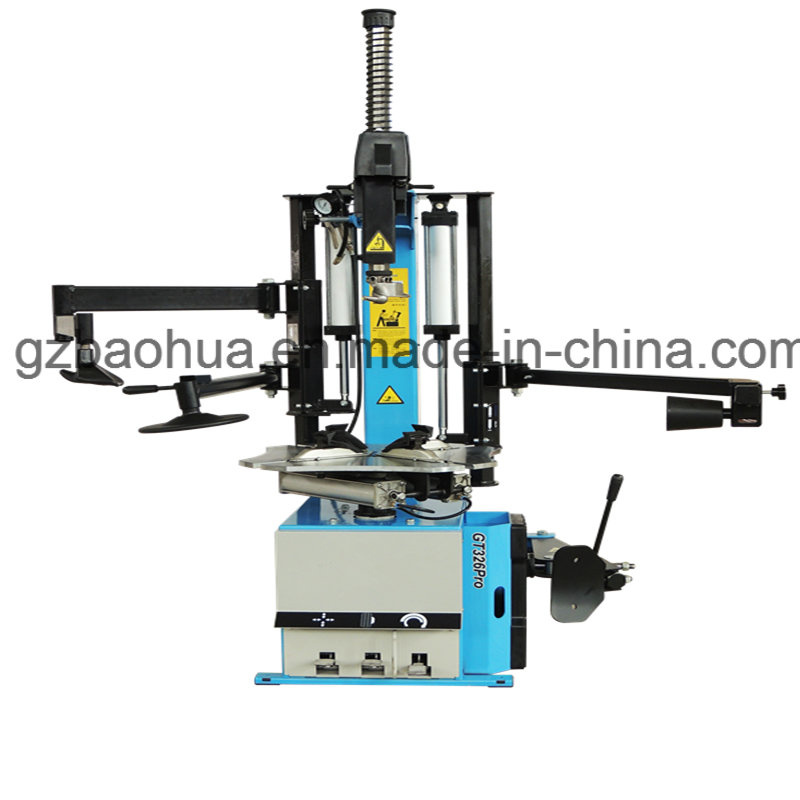

Product Description
Professional automatic tire changer1.Applicable to small and medium car, discouraged avaliable(explosion) tire, lower than the flat performance tires, tubeless tires are available.2.Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.3.The trapezoid colum base and housing overall box welding design, fully ensure the high intensity. Operation under the bearing structure, the overall stability and reliability.4.Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub.5.Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.6.Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.7.Best quality all-aluminum cooper motor with advantages of faster heat dissipation, low loss, high power.8.180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.Technical data| Model | GT326 Pro |
| Max.wheel diameter | 1120mm(44") |
| Max.wheel width | 420mm(16") |
| Inside chuck size | 12"-26" |
| Outside chuck size | 10"-24" |
| Power supply | 380V/3PH/50-60Hz |
| Working pressure | 8-12bar |
| Bead breaker power per cylinder | 2800kg |
| Self-centering rotation speed | 6-12rpm |
| Net weight | 360kg |

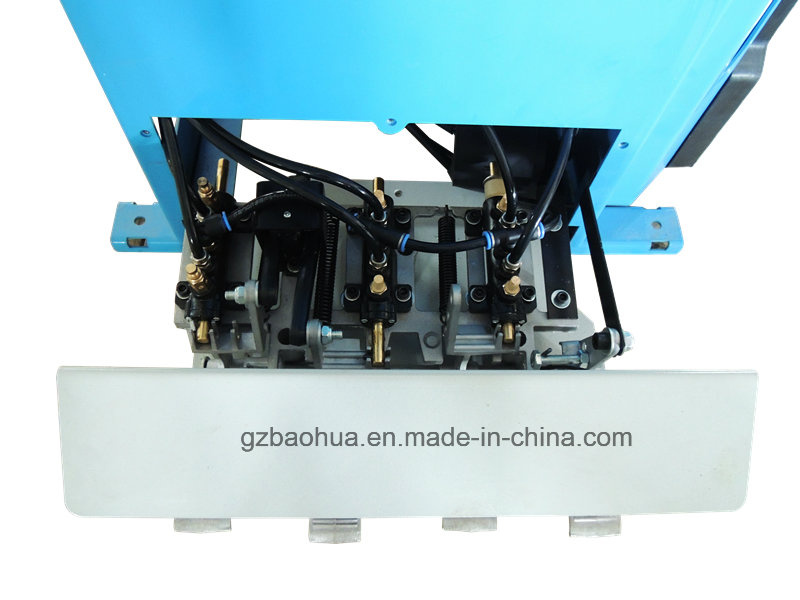

Details imagePneumatic valve piston rod assembly
Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion resistance, longer life. Drawer control assembly, simple structure, fast and easy maintenance.

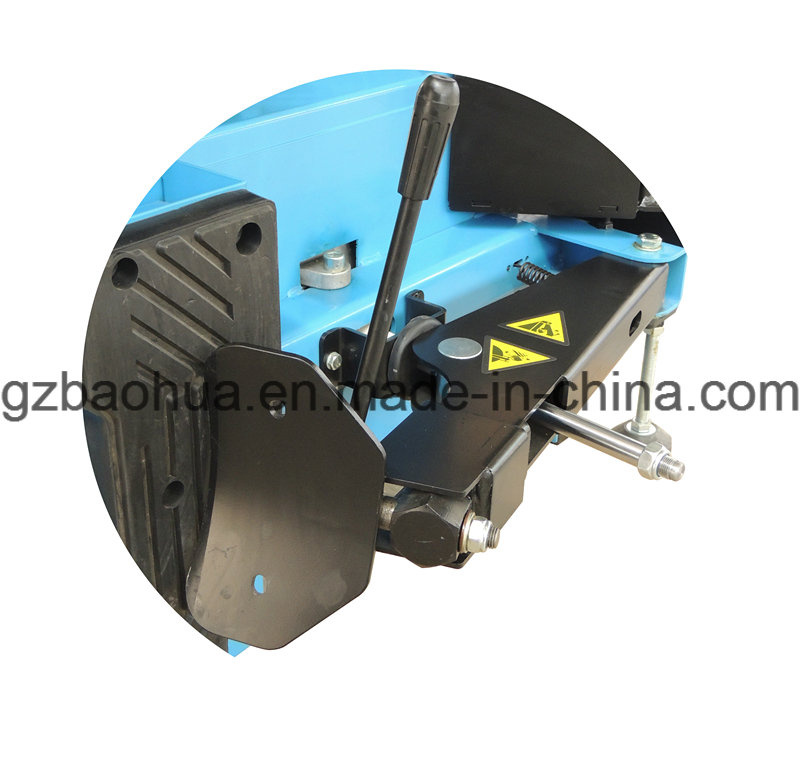

Pressure shovel
.Pressure shovel with multi-angle adjustable design

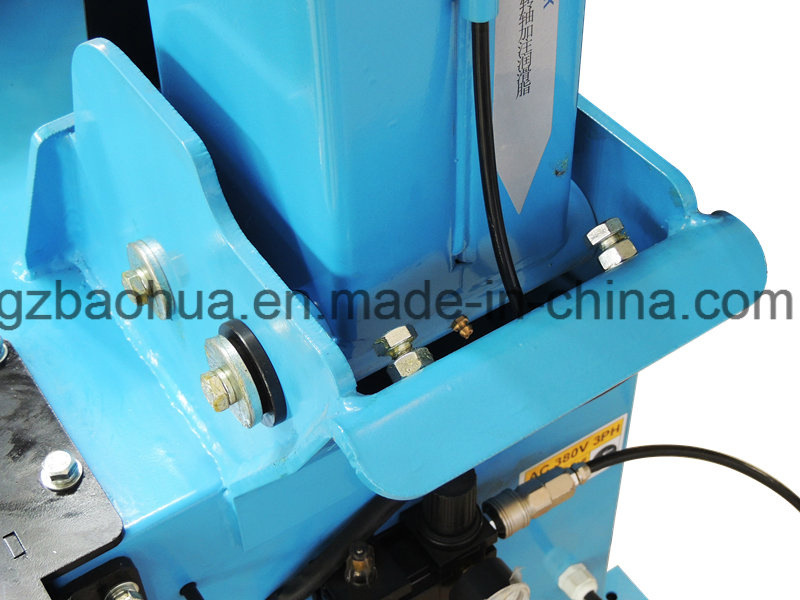

The trapezoid colum base and housing overall box welding design, fully ensure the high intensity. Operation under the bearing structure, the overall stability and reliability.

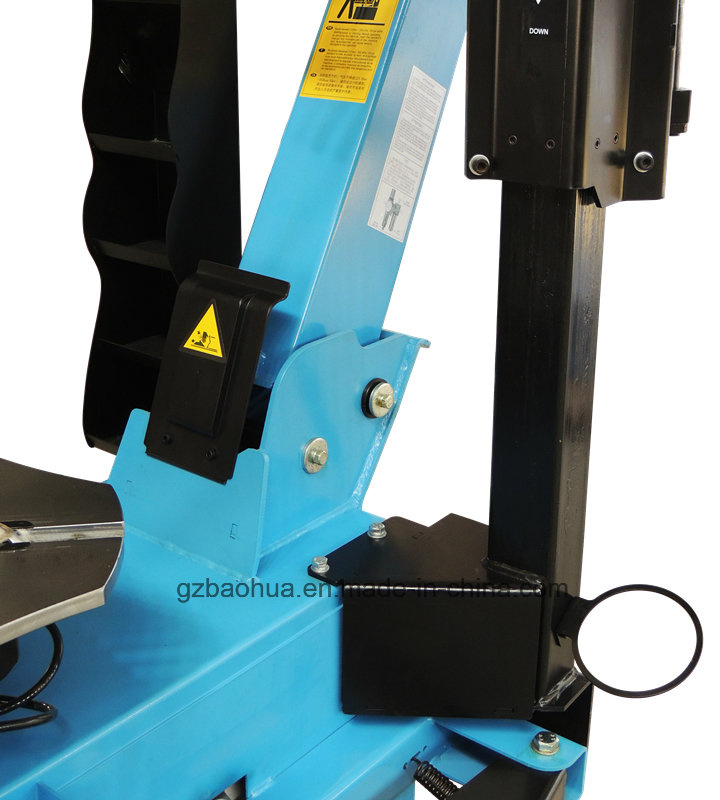

Backward curved arms designed, so the top hub chuckan expand more room for operation and avoid accidental injury when clamping hub.

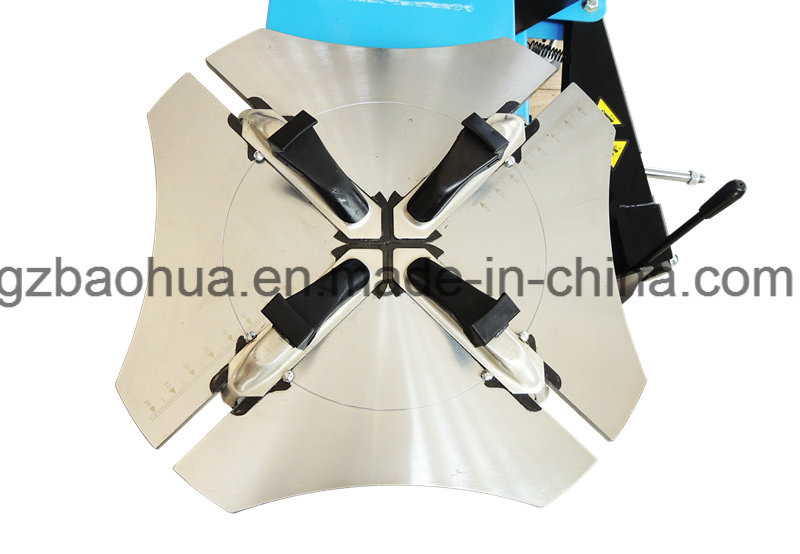

Thickness is 15mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise(fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure.
Using 3mm thickness steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
Package details
1) one set = one package
2) Package size:1200*1000*1780mm
3) N.W.: 319kgs
4) G.W. 369kgs
