| Prod Model: |
BTD-15-50-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
15-50-B |
| Price Car Paint Booth: |
Used Cars Paint Booth for Sale in Germany |
| Quality: |
High Quality |
| China Paint Room: |
Auto Maintenance Tools |
| Standard Color: |
White |
| Standard Voltage Of Motor: |
380V50Hz3pH |
| Standard Voltage Of Light: |
220V50Hz1pH |
| Car Spray Booth: |
Price Car Paint Booth |
| Lighting System: |
Osram Lamp with Tempered Glass |
| Diesel Burner: |
Italy Riello Diesel Burner Rg5d, (260.000kal/H) |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description
CE approved auto maintenance tools painting camera China paint room
About BTD Car Tools Co., Ltd:
BTD Car Tools Co., Ltd is a global supplier in the automotive aftermarket offering a full range of equipment and service solutions for workshops. Our goal is to offer the high-quality products and excellent services at a reasonable price. Our quality meets the requirement of European market--- CE approved auto maintenance tools painting camera China paint room

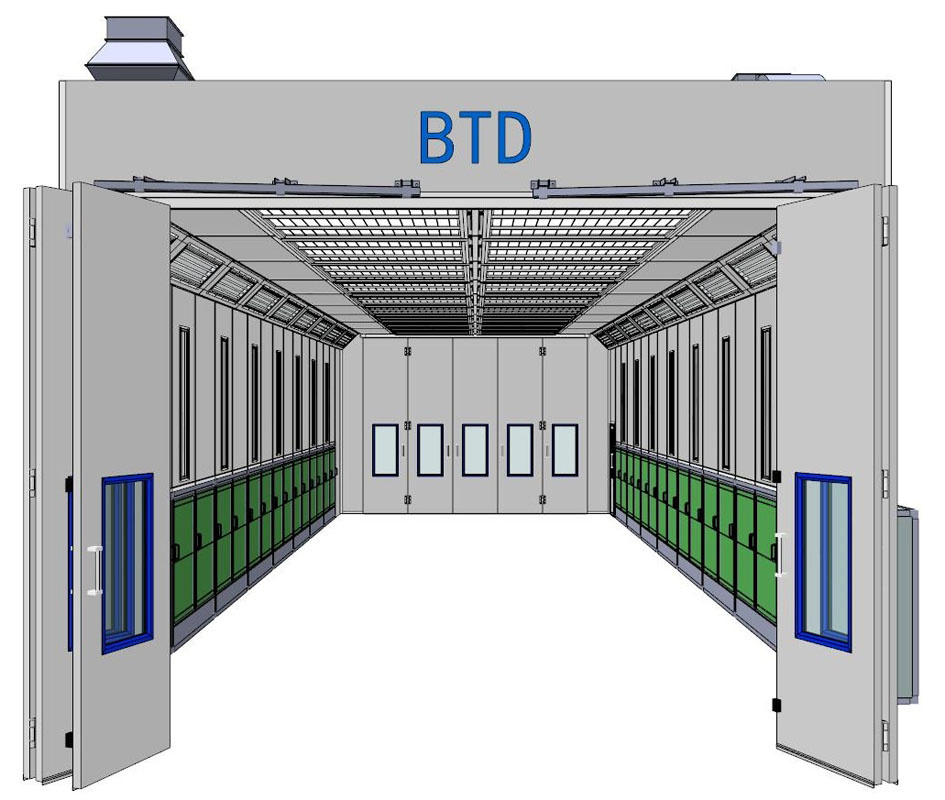

Model Number: BTD 15-50-B ( Big And Economy spray booth )
| Model | BTD-15-50-B |
| Booth Dimensions | |
| -Internal Size(L×B×H) | 15000×5000×5000mm |
| -External Size(L×B×H) | 15150×7700×5900 mm |
| Foundation and Floor | |
-Loading Capacity
of Galvanized Grating | NO |
| - Surface Area | 33M²2 rows air exhaust plenum chamber |
| - Metal Basement | NO |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Steel Wall and Roof Panel | Double Construction
with Insulations EPS 50mm |
| -Thickness | Double Construction
with Insulations EPS 50mm |

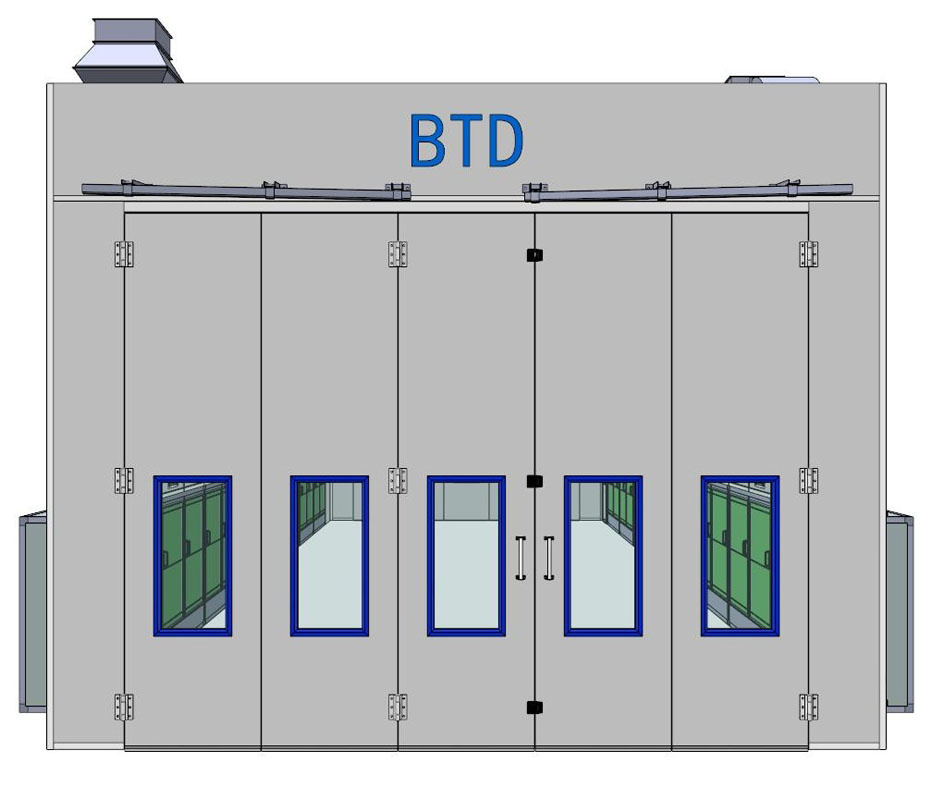

3-Folded Entrance
Door With
Safety Glass Window | 3200×2700 mm (B×H) |
-Operators Door
With Safety ,
Glass Window | 800×2000 mm (B×H) |
| Lighting | |
| - Ceiling Lightings | 8 Units, each 4×36 W,
Total 1152W |
| - Side Lightings | 8 Units, each 2×36 W,
Total 576W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Pre filters | Fiberglass, Paint-Stop-Filters Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fiberglass, Paint-Stop-Filters |
| Ventilation System | |
-Direct Drive
Motor (Fresh Air) | 2×7.5KW,970RPM,380V,50HZ motor certification CE |
-Direct Drive
Motor (Exhaust Air) | 2×7.5KW,970RPM,380V,50HZ Domestic
motor certification CE |
| - Fan Capacity | 50.000m³/h |
| - Air Flow Speed | +/- 0.20 m/s in an empty booth |
| Heating System | |
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
-Heating
Exchange Capacity | 2×232KW(260.000cal/H) RIELLO |
| -Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60°)
by Drying Phase |
-Heating Type
(on option) | Diesel / Gas Burner |
| Control Board | |
| -Control system | Stander control
Delta Depressurization
start system
EN60204-1-2006 |
| -Function | Spraying ,baking, warming
spray paint, emergency
stop switch |
| -PLC | yes |
| -Inverter control | On option |
| -Import element | master device import element |
| -Overpressure Manometer | yes |
| - Alarm equipment | yes |
Other conditions and terms:
1. Payment term: T/T 50% advanced after order confirmed, T/T 50% balance paid before delivery.
2. Delivery date: 10-15 days after order confirmed.
3. Warranty: 2 years. During the warranty time, any problem caused by products' quality, BTD has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
4. Quality: Our products are welcomed in Europe, our quality meets the requirement of European market.
5. Service time: Life long maintenance
Dear friends, if you have any problem and requirment for CE approved auto maintenance tools painting camera China paint room, you can feel free to contact with us.
