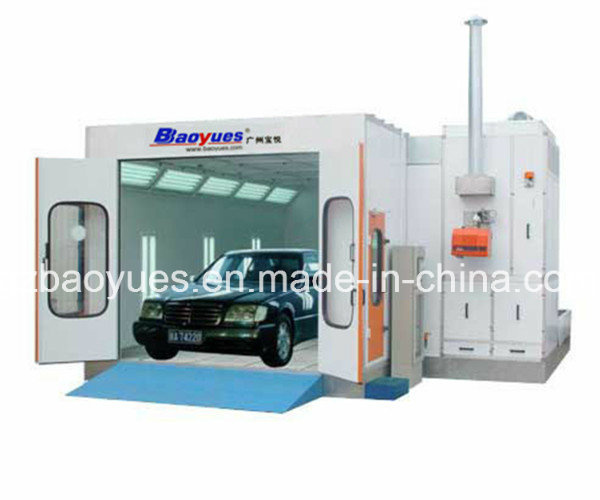

Prefect, Good Quality for Automotive Painting Oven
| Price: |
Negotiableset |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
non-standard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Baoyues |
| Voltage: |
1X220V,3X380V,50Hz |
| Color: |
Optional |
| Purification: |
≥95% |
| Noise Db (a): |
≤75 |
| Certificate: |
CE,CCS |
| Air Capacity: |
25000m3/H |
| Control System: |
PLC Controler |
| Usage: |
for Car Spraying and Baking |
| Wararanty: |
1years |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CSA |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Baoyue |
Product Description
Guangzhou Baoyue Electromechanical Equipment Co., Ltd.
We specialize in the design, manufacture and sale for car spray booth and paint booth, industry painting equipment, and high temperature drying plant. No matter for car painting or baking, our products maintainhigh levels of safety and performance together with top quality construction.
CLEAR ADVANTAGE
1. Good after sale service
2. Professional design team
3. Experienced installing team and Abord installation service
4. Life-long technical support service
5. Unique designs and competitive prices;
PRODUCT FUNCTION
Provides auto painting and drying operation in accordance with health and security norms. Conformity to TSEK quality factor and conformity values is determined with quality conformity certificate no. 35-14.02/1557 of 2001. In accordance with the Law no. 132 and TSE legislation, " production compliance certificate " had been consigned. Analysis result executed by TUBITAK ENREGY SYSTEMS and ENVIRONMENT RESEARCH INSTITUTE ENVIRONMENT DIVISION, approved through the report no.
B. 02.1 BAK. 5.01.52.00/2015 and Project no. 51H2402, that FIRAT auto painting spray booths does not constitute any environment pollution.
Company advantage
As a professional manufacturer, we have a wealth of production experience, can be very good control of the production cost and help you to lower your purchase cost
Our products had sold to Australia, Germany, Nigeria, Philippine, Romania, Singapore, Russian Federation, Kingdom of Saudi Arabia, The United Arab Emirates, etc...
Please believe our strength, quality and service; You will not disappoint when you inspection and using the product
|
Inside dimension |
6900 × 3900 × 2650mm (L×W×H) |
|
Outside dimension |
7000 × 5350 × 3400mm (L×W×H) |
|
Front door |
F olding door, 3 folds, 3000×2600 mm(W×H), without frame cover , colour : blue. |
|
Emergency door |
1 unit, 650×1800mm ( W×H ) , colour: white |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized. 2 ramps, 750×2000mm/pc. |
|
Wall Panels |
Thickness:50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with polystyrene (EPS) insulation inside, colour: white . |
|
Light |
Ceiling Lights: 8Units × 4Pcs=32Pcs × 36W, Side Lights: 8Units ×2 Pcs= 16 Pcs ×18 W, with electronic ballasts, lighting boxes are powered coated. Illuminate: ≥1000LUX |
|
Generator cabinet |
Intake from side upper, exhaust from back uppe r galvanized steel frame; white coated steel covered, filled with heat preservation material inside. |
Intake and Exhaust system |
Inlet: 2×3 KW double-intake centrifugal fans, model YDW4.5M1, air capacity for each fan: 10500m 3 /h. |
|
Outlet: 1× 4KW double-intake centrifugal fan, model YDW4.5L1 , air capacity: 12500m 3 /h . |
|
Heating system |
RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 2000 0 0kcal/h, Max temperature: 80 °C . |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
|
Roof |
Galvanized steel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller, exhaust with manual damper, all motors are normal start. |
|
Total Power |
12KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
