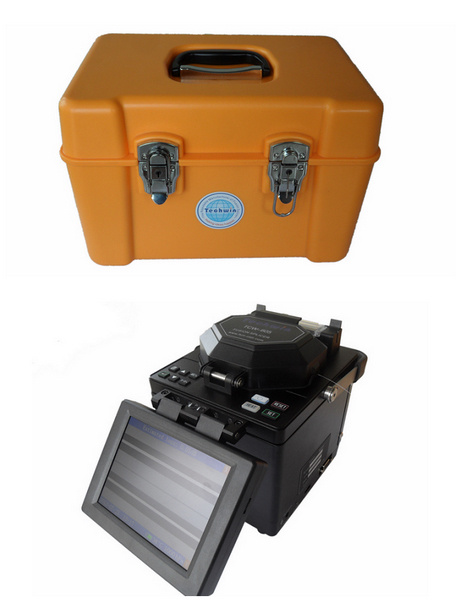

Precising Digital Fiber Splicer
A. CE and ISO9001certified
B. 15 years' exporting experience in fiber communication industry
C. The first manufacturer of Fusion Splicer in China.
Features
Anyone anytime anywhere can use easily
Not only a Fusion Splicer, but also your partner who make your job easy and happy
The rugged construction plus improved reliability by resisting shock, dust, and rain
5.6 inch TFT color LCD monitor with anti-reflective coating
The advanced core to core fiber profile alignment system(PAS)
ARC Calibration FREE system
ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary
X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times
8 seconds splicing time, 30 seconds Heat-Shrinking
Battery capacity was display in real time, precisely
Built-in high capacity battery, support 220 cycles(splicing /tube heating), to meet one days' work
Long Electrode Lifetime, up to 4000 times
The new wind-cover design, enhance the ability to prevent the dust & wind, Max. Wind velocity of 15m/s
Three Splicing modes: Auto, half-auto, manual
Built-in super high-brightness LED supply convenience for night work
Auto calculate splicing loss based dual camera cladding axis alignment data
Small bulk and light weight, only 2.8kg include battery
4000 results Storage
2.0 USB data interface &VGA
One button operation to finish results download or software update
Close shield splice automatically, Close heater lid heat automatically
One year warranty( TWO years or THREE years warranty is available for special order)
|
Optical Specifications |
TCW-605 |
|
Fiber Types |
Single mode (ITU-T G. 652), multimode (ITU-T G. 651), dispersion shifted (ITU-T G. 653), non-zero dispersion shifted (ITU-T G. 655) and other SMF including ITU-T G657 fibers |
|
Average Splicing Loss |
0.02dB with G. 652, 0.01dB with G. 651 and 0.04dB with G. 653 and G. 655 |
|
Splicing Time |
Typical splicing time: 8s |
|
Heating Time |
Typical heating time: 30s |
|
Return Loss |
60dB or greater |
|
Fiber Coating |
100μ m to 1000μ m |
|
Fiber Cladding |
80μ m to 150μ m |
|
Fiber Cleave Length |
8~16mm(coating diameter< 250µ m), 16mm(coating diameter 250~1000µ m) |
|
Program |
10 units factory setting SM program, 10 units factory setting MM program, and 30 units user setting SM program, 30 units user setting MM program |
|
Align Mode |
Advanced profile alignment system(PAS) |
|
Storage |
4000 results |
|
Data Transmission |
USB port & VGA |
|
Heater |
Auto Heat Mode, the typical heating time is 30 seconds |
|
Heat-Shrinkable Tube |
40mm, 60mm and a series of micro Heat-Shrinkable Tubing |
|
Screen Display |
Two CMOS cameras, 5.7 inch 640*480 LCD., core of the fiber is clearly visible |
|
Lighting for Construction |
Built-in super High-brightness LED supply convenience for night work |
|
Magnifications |
Vertical 152times, horizontal 304times |
|
Work mode |
Automatic, Half Automatic, Manual |
|
General Specifications |
|
|
Power Supply |
Alternating Current: 100-240 50Hz/60Hz 30W, Direct current: 13.5V/4.5A Built in 11.1VLi-ion battery charger and AC adaptor |
|
BatteryLife |
Support 220 times splicing and heating on one charge(3.5hours) at least |
|
BatteryLifetime |
Cycle life up to 300~500 times, replaceable |
|
Tension Test |
2N |
|
Electrode Lifetime |
> 4000 times, replaceable |
|
Operating Temperature |
-20 ~ 50 |
|
Storage Temperature |
-40 ~ 80 |
|
Relative Humidity |
0 to 95% (non-condensing) |
|
Work Altitude |
0~5000 meters |
|
Instrument Weight |
2.3kg(no battery ), 2.8kg(including battery) |
|
Dimensions(L x W x H) |
160mm*150mm*140mm |
|
Package G. W/N. W |
8.0/7.0kg |
|
Package (L x W x H) |
500mm*350mm*400mm |
