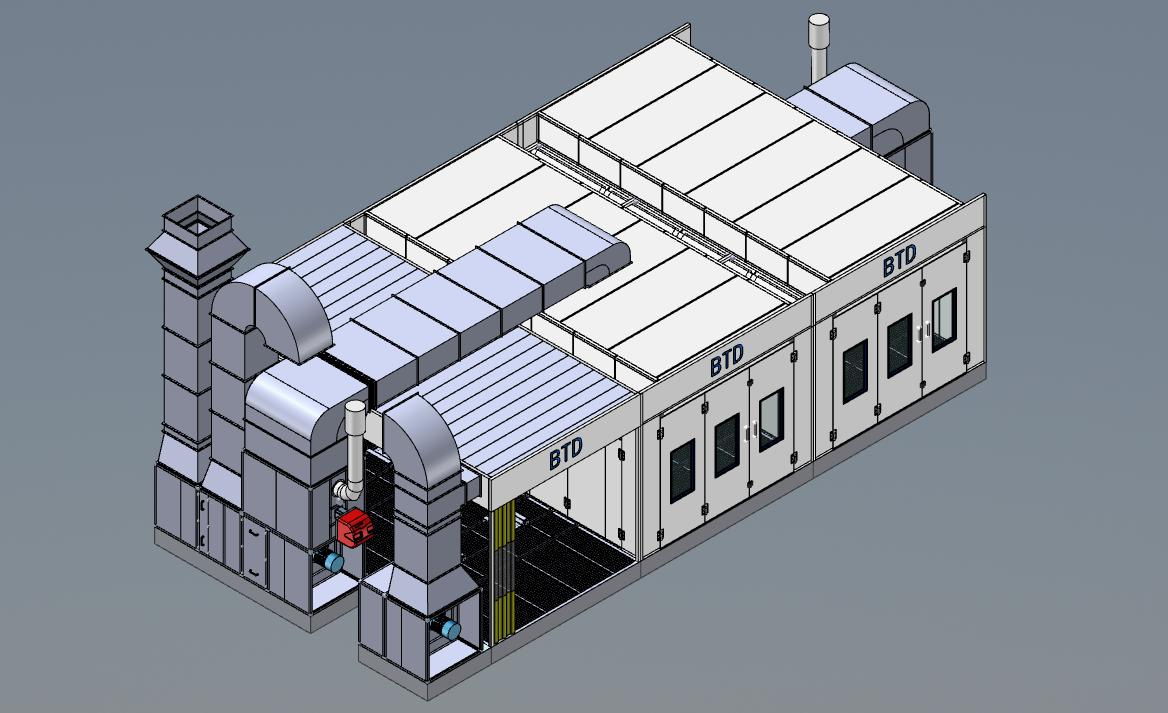

Name: Pre Painting Baking Line for Sales
Brand: ibuyautoparts.com
SKU: 669666832
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 20000-30000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Pre Painting Baking Line for sales
1. CE approved
2. German Technology
3. Suitable for 4S garage
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement

Model: BTD-1B

Model	BTD-1B Preparation-Painting and Drying production line
Booth Dimensions
- Internal Size(L×B×H)	Preparation 7000×4000×2800mm Painting booth 7000×4000×2800mm Drying booth 7000×4000×2800mm
- External Size(L×B×H)	7120×15500×3460mm
Foundation and Floor
- Loading Capacity of Galvanized Grating	650KG/ wheel,
- Surface Area	27M²Full Galvanized Grating gills×3unit
- Metal Basement	800mmHeight should be need to dig foundation
- Drive-in Ramps	NO
Wall and Door
- Steel Wall and Roof Panel	Double Construction with Insulations EPS 60mm
- Thickness	with Insulations EPS 50mm
5-Folded Entrance Door With Safety Glass Window	3200×2700 mm (B×H) -2unit
-Operators Door With Safety ,Glass Window	800×2000 mm (B×H) 2PCS
Lighting
- Side Lightings	Preparation 24 Units, each 4×58W, Total 1392W Painting booth 32 Units, each 4×58W, Total 1856W Drying booth 4 Units, each 2×58W, Total 464w
- Brightness	Preparation >800 Lux, IP54 Grade Painting booth >1000 Lux, IP54 Grade Drying booth >300 Lux, IP54 Grade
Filtration
- Prefilters	Fiberglass,Paint-Stop-Filters Plate type duel filters
- Ceiling Filters	EU5 Fine Filters, 6 Units
- Floor Filters	Fiberglass, Paint-Stop-Filters
Ventilation System 1 Unit Preparation
- Direct Drive Motor (Fresh Air)	1×5.5KW,970RPM,380V,50HZ motor certificationCE
- Direct Drive Motor (Exhaust Air)	NO
- Fan Capacity	18000m³/h
- Air Flow Speed	+/- 0.15m/s
Ventilation System 1Unti Painting booth
-Direct Drive Motor (Fresh Air)	2×7.5KW,970RPM,380V,50HZ motor certificationCE
- Direct Drive Motor (Exhaust Air)	2×7.5KW,970RPM,380V,50HZ Domestic motor certificationCE
- Fan Capacity	25000m³/h
- Air Flow Speed	+/- 0.28m/s in an empty booth
Ventilation System 1 Unit Drying booth
- Direct Drive Motor (Fresh Air)	1×7.5KW,970RPM,380V,50HZ motor certificationCE
- Direct Drive Motor (Exhaust Air)	NO
- Fan Capacity	25000m³/h
- Air Flow Speed	+/- 0.28m/s in an empty booth
Heating System 1Unit Painting booth
- Heating Exchanger	Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity	2×200KW(260.000cal/H) RIELLO
- Max. Drying Temperature	80 °C
- Heating time	3-5 min (from 20 to 60°) by Drying Phase
Heating System 1Unit Drying booth
- Heating Exchanger	Stainless Steel 1Gr18Ni9Ti
-Heating Exchange Capacity	2×200KW(260.000cal/H) RIELLO
- Max. Drying Temperature	80 °C
- Heating time	3-5 min (from 20 to 60°) by Drying Phase
- Heating Type	Diesel
Control Board
-Control system	Stander control Delta Depressurization start system EN60204-1-2006
- Function	Spraying ,baking, warming spray paint, emergency stop switch
-PLC	yes
-Import element	master device import element
- Overpressure Manometer	yes
- Alarm equipment	yes

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.

BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.

FQA:
Q1: Are you Manufacturer or Trading company?
A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.

Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.

If you wish to discuss any aspect of your project,

Please feel free to contact us.

Prod Model:	BTD-1B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Management Certification:	ISO9001: 2000
Technology:	German Technology
Warranty Time:	2 Years
Service Time:	Lifelong Maintenance
Usage:	4s Garage Spraying and Baking
Color:	White
Heating Type:	Diesel
PLC:	Yes
Overpressure Manometer:	Yes
Alarm Equipment:	Yes
Certification:	CE
Airflow Direction:	Cross-flow Type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spray Booth
Brand:	Btd

BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.

BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.

BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
