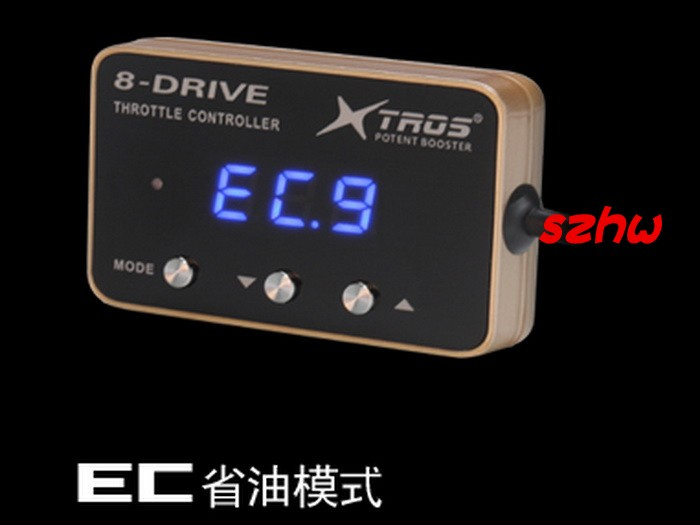

Potent Booster 6th 8-Drive Electronic Throttle Controller, Ultra-Thin, Ak-207, for Hyundai 8th Sonata

Potent Booster 6th 8-Drive Electronic Throttle Controller, Comfortable / Sports /
Racing mode, Ultra-thin, Dedicated
For


Hyundai 8th Sonata
etc
( AK- 207 )
, free shipping!



Note: Please note your car make and manufacturered year when placing the order!






I. Product Details





II. Product Function:


1, Shorten the response speed of the electronic throttle


2, Improve the electronic throttle\'s sensitivity


3, Plug and play without external power supply


4, 8modes/48degrees adjustable


5, Full accelerating mode / semi accelerating mode / original accelerator mode /


Economic mode available


6, It can get inio the original car mode while revsersing for optional


7, Super bright LED digital display screen, blue / red for optional

(


Default blue

)




III.
Installation steps



1 Find the original electronic throttle pedal of your car


2 When automobile is stalled and start key is off, pluck the port of electronic throttle pedal


3 Insert electronic throttle coupler into auto line port.


. Insert electronic coupler into the groove of throttle pedal and check to see whether it gets stuck in position


4 Insert electronic throttle coupler and display adjuster into each other in position.


5 Then fix display controller with self-attached glue to the central control position or any position you like. Finished




IV. Working principle





1. Electronic Throttle and Fly-by-wire Throttle

Along with rapid development of auto industry, auto manufacturers in America,


Germany, Japan and other countries successively adopted electronic throttle control


System early in 1990s. Electronic throttle control system mainly consists of throttle


Pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo


Motor and choker executing mechanism. Electronic throttle is generally adopted in


Fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle


Which features direct connection between throttle pedal and choker with thin steel


Wire. The treading depth of throttle pedal directly corresponds to the opening width


Of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted


Into resistance value after a potentiometer (with variable resistance) is mounted in


Pedal. Electronic system of automobile indirectly determines the depth of pedal through


Sampling of resistance value. Finally, ECU will activate stepping motor to control the


Opening width of choker. It can be easily found through principle comparison that fly-


By-wire
Throttle features simple system and direct control, with the proportion of the



Opening width of throttle and choker being 1: 1. Characteristics of electronic throttle


Are as follows: Throttle pedal only indicates drivers operating intention, while the


Final right to control choker belongs to ECU.





2. Characteristics of Electronic Throttle Control System and ECU(ECU)

In models with electronic throttle control system, ECU will analyze the treading depth


Of throttle in combination with auto conditions when controlling electronic choker, and


Then calculate appropriate opening width of choker at the current time. When diver


Speeds up suddenly at the time of startup (tread the
