PEAK CORPORATION >> Portable Four Columns Parking Lift with Ce Certificate

Portable Four Columns Parking Lift with Ce Certificate

Portable Four Columns Parking Lift with Ce Certificate
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 408-P
Lifting Time: 83s 40s
Lifting Height: 1872mm(73 3/4")
Motor: 110V/1.5HP; 220V/3.0HP
Gross Weight: 832kg(1,834lbs)
Color: Blue
Surface Treatment: Spray-Paint
Type: Four Cylinder Hydraulic Lift
Lifting Capacity: 3.5T
Certification: CE
Design: Four Post
Brand: Peak

Product Description

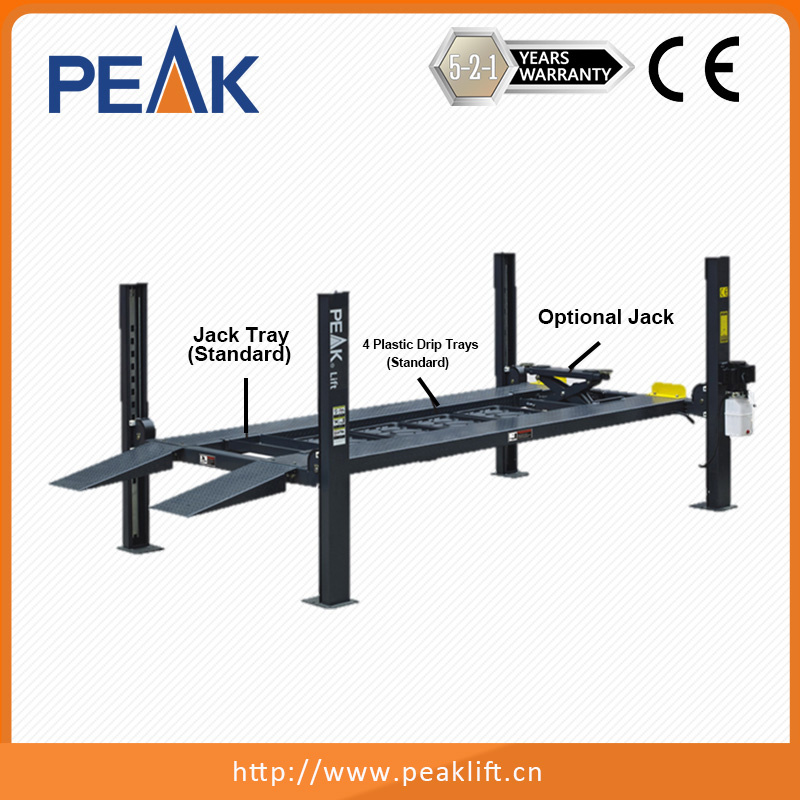

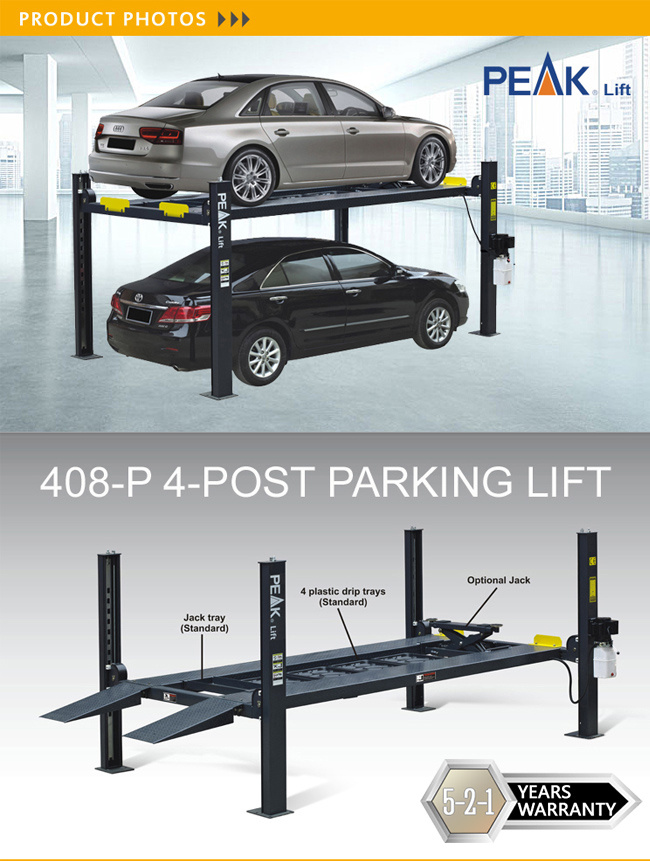

408-P   Portable Four Columns Parking Lift With CE Certificate

PEAK's Series of Parking Lift
ModelLifting Capacity
408-P3.5T
409-P4.0T
409-HP4.0T
* 409-P is similar to model 408-P, but longer, wider and heavier.
*409-HP is 12"(300mm) higher than 409-P.

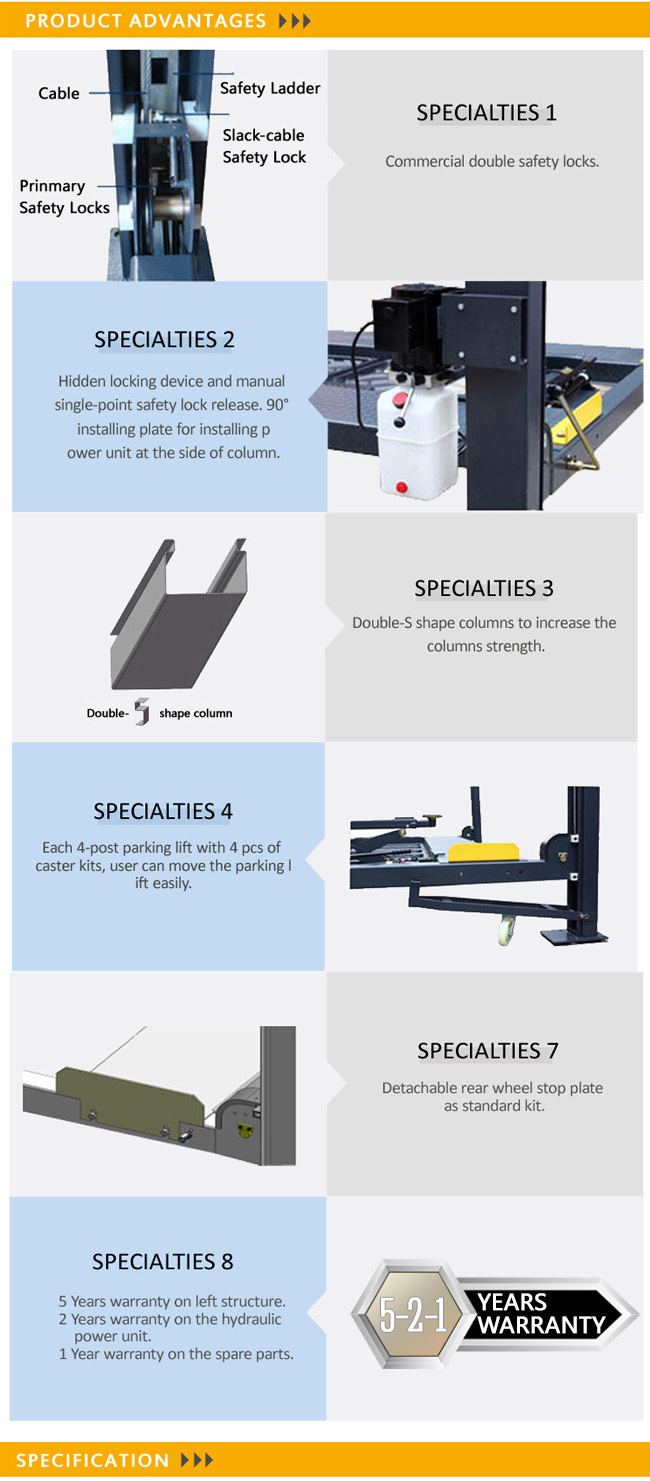

Feature
  • 8,000 Lb. capacity
  •  PEAK exclusive hidden safety locks and manual single-point release device.
  • Double-"S"  shape columns to increase the columns strength.
  • Cmomercial double safety locks.
  • Skid proof diamond platform.
  • Standard configuration: P
lastic drip trays(4 pcs), Jack tray (1 pc), Caster Kits(4 pcs)
  • Four steel stops as standard configuration for more safety.
  • Flexible design: Powerside column can be installed at each corner 220V or 110V single                         phase power unit.This parking lift is designed portable, it can be moved easily by using the                 optional caster kits.
  •
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

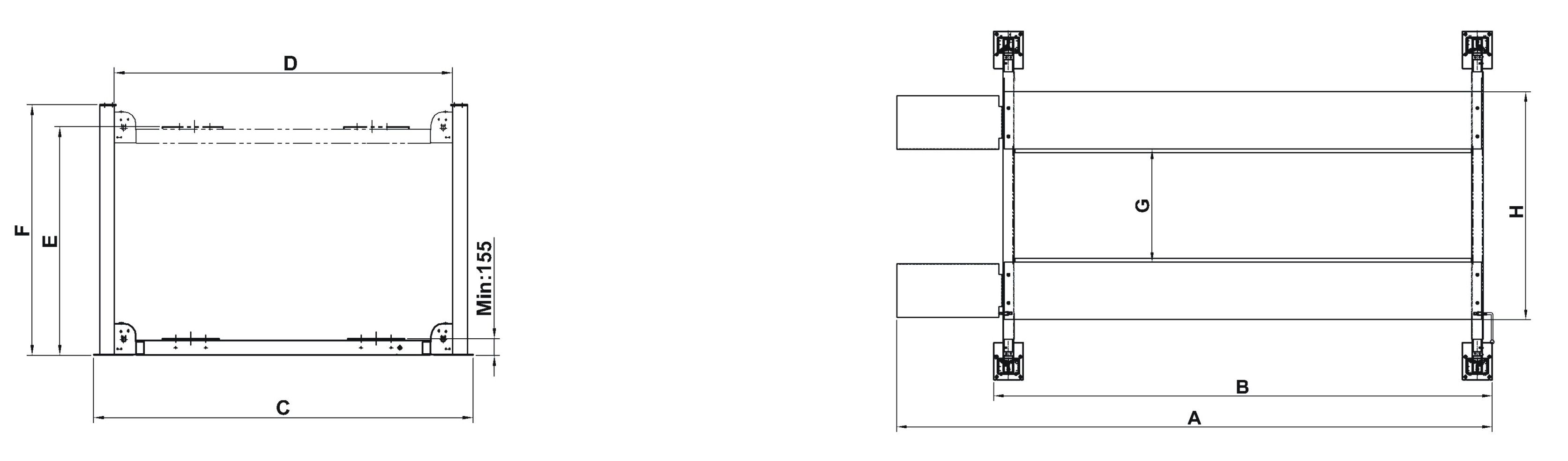

408-P   Portable Four Columns Parking Lift With CE Certificate
Model408-P
Style4 Post Parking Lift
Lifting Capacity3.5T (8,000lbs)
Lifting Time83 Seconds / 40 Seconds
AOverall Length (With Ramp)5257mm (207")
BOverall Length (No Ramp)4400mm(173 1/4")
COverall Width2784mm(109 5/8")
DWidth Between Columns2438mm(96")
ELifting Height1872mm(73 3/4")
FOverall Height2105mm(82 7/8")
GWidth between platforms940mm(37")
HPlatforms outer width1890mm(74 3/8")
Gross Weight832kg(1,834lbs)
Motor110V/1.5HP        220V/3.0HP
Packing Dimension4400 X 540 X 750 mm
QTY of Container12 Units/20'GP
24 Units/40'GP



EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

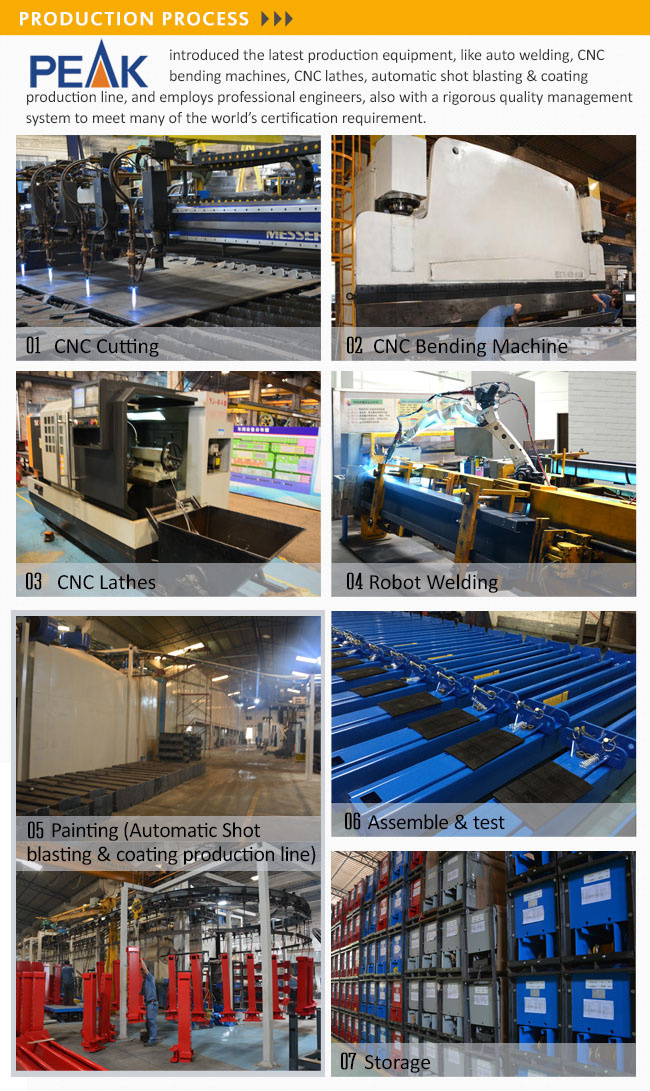

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.

At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.

PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.

Each PEAK lift is designed for customers who seek the world-class products!
