Popular Type North European Standard Spray Paint Booth
| Price: |
US $ 8820-16350/Set |
| Trade Terms: |
others |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
BZB-8000EUN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White,Red,Orange,Blue....... |
| Voltage: |
as Require |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Bzb |
Product Description

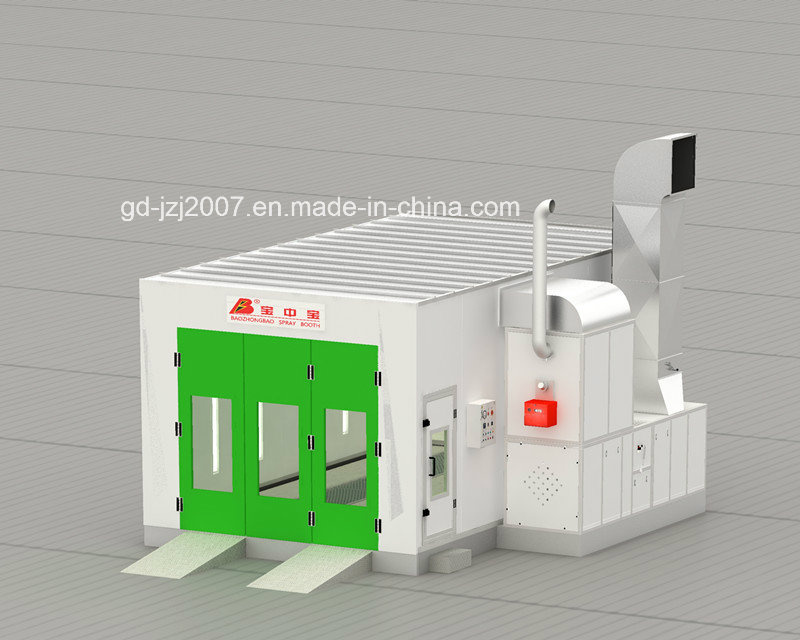

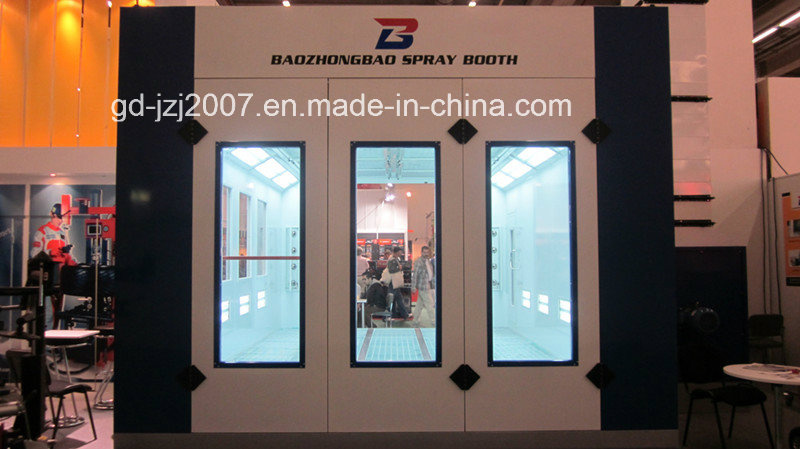

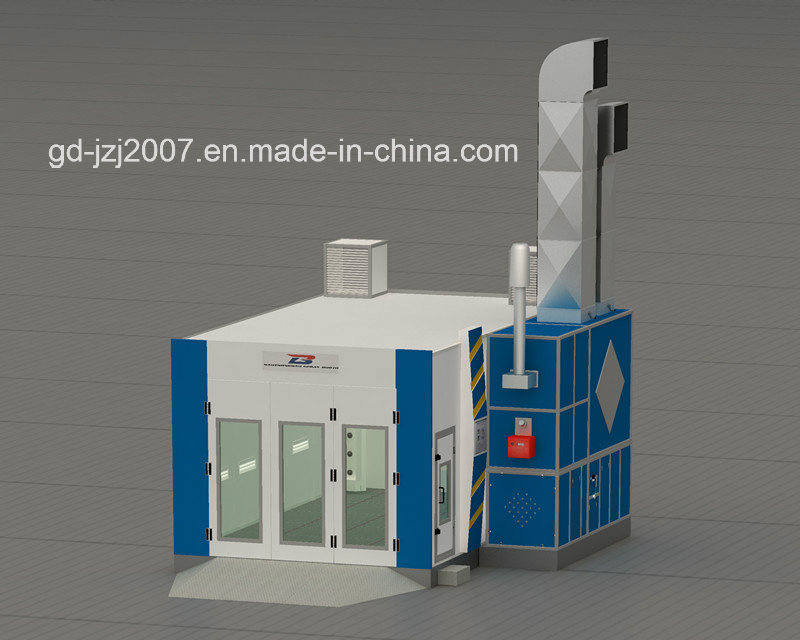

BZB-8000EUN Spray Booth(Northern Europe Standard)
Basic parameter: Inside Size (mm): 6900×4000×2650; Outside Size (mm): 7000×5660×3480;Front Door (mm): 3000(W) ×2600(H) Personal door(mm):800*2000mm(W×H) Room Body System 1) Wall panel: Rockwool panel, 50mm thick, tongue & groove style, compound construction, aluminum-alloy frame, anti-flame and heat-insulation. Roof panel: galvanized steel, roof use powdered steel plate cover. 2) Basement: Galvanized steel sheet and square steel pipe assembling, Full grid, Full Ramps made of embossed plate. Height: 330mm, 900mm width three ramps;3) Front Door: 3 folded glass door, toughened glass.
Air circulation system:
Intake
System
| Model: Siemens motor |
Exhaust System | Model: Siemens motor | |
| Blower Capacity: 25000m3/h | Blower Capacity: 25000m3/h |
| Pressure: Pa | Pressure: Pa |
| Rolling Speed: 970 rpm | Rolling Speed: 970 rpm |
| Power: 7.5kw | Power: 7.5kw |
| Quantity: 1sets | Quantity: 1sets |

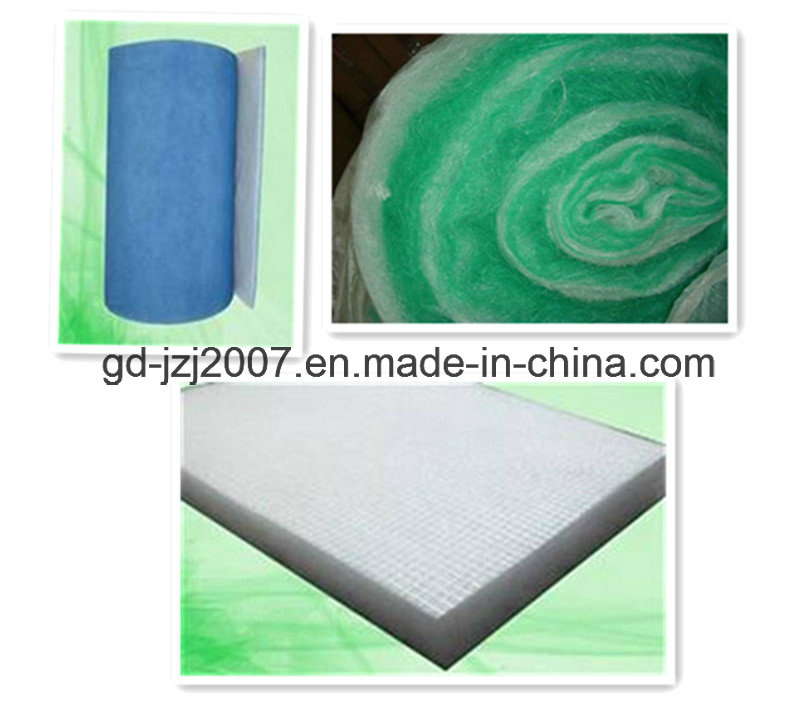

Generator setting:Back upper intake air, back up extract air, quadrate steel frame, coated steel; Air purification system:G3 grade, Pockets filter Pre-filter, EU5 / F5 high efficiency filter (ceiling filter), green fiber glass filter, G3 grade floor filter; Pocket filter or M green fiber glass filter and active carbon exhaust fan filter. Dual filtering structure, the primary filter can capture granules larger than 10 μm. Ceiling filter can capture granules bigger than 4μm. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.4mg/m3.
Heating system: Italy Riello RG5S diesel burner, heating capacity 260000Kcal/h, Switzerland original pneumatic damper motor can automatically achieve from spraying to baking cycle. SUS304 stainless steel heat exchanger, argon arc welding. Max temp: 80ºC, heating time: 6-8min(20-60ºC), fuel consumption: 6-8kg/vehicle.
Specially design of the heating recovery system for energy the second time used, effectively save energy. The efficiency of recovery is 30%.Lighting system:Ceiling Light: 8sets*4pcs=32pcs 36w Philips Lamp;Bottom light: 16 pcs 36w Philips lamp, Illumination: 1100 Lux. Ballasts Professional and durable.Control box:Micro-Computer Programmed Controlling, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm. Total power: 22.5KW Spare parts:
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.
Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.
It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
