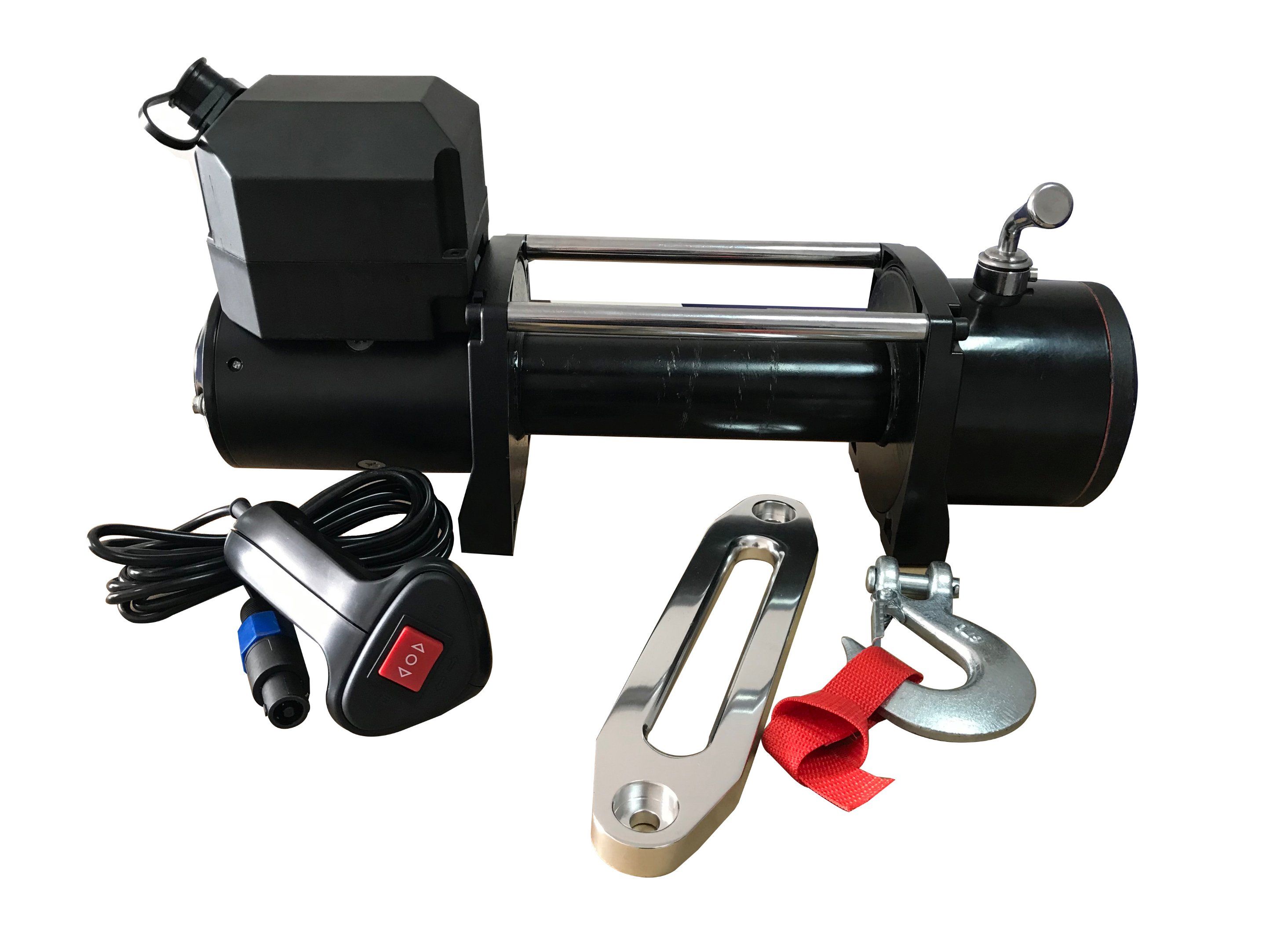

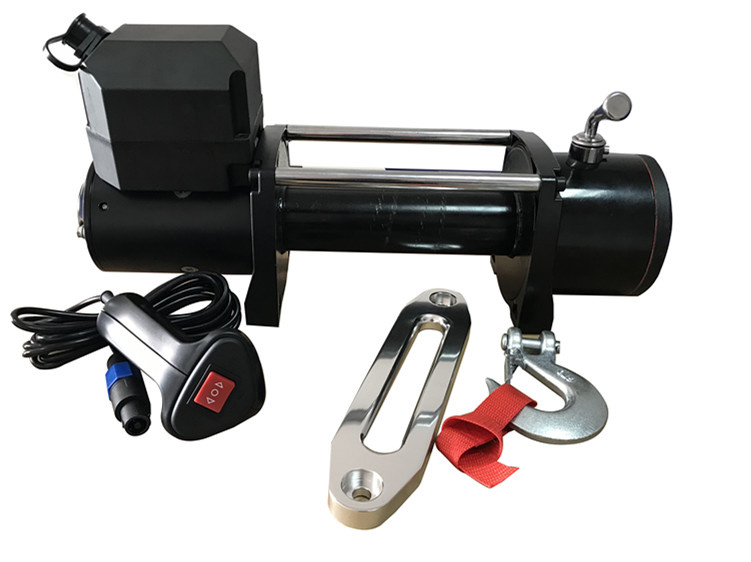

Popular Style Power Winch with 10500 Lb Pulling

Name: Popular Style Power Winch with 10500 Lb Pulling
Brand: ibuyautoparts.com
SKU: 838943775
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 158-162/Piece
Min Order:	24/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Classic design with heavy duty 10,500 lb winch . Powerful fast speed series would motor sealed ,mechanical design brake . sealed completed gear box with all steel gears , 265.2:1 gear ratio . steel cable and 4-way roller included . All -in-on remote control with the disassembled wire , two ends with airplane terminals ,waterproof .Reliable solenoid (450 A ,IP67 ) , control box pre-set on the motor side.More solenoid control boxes available !
Steel cable or Synthetic rope is upon demands !
OEM is acceptable all the time !
Features and Specifications :
PN: XM-TE906
Performance: 12 V or 24 V DC
Single line rated pull: 10,500lbs ( 4757kg)
Motor: 6.0hp/4.5kw series -wound Sealed
Braking action: Automatic locking with motor
Clutch: Sliding ring gear
Gear train : 3 -stage planetary
Gear ratio:                        265.2: 1
Remote Switch:                12ft ,wireless remote control integrated with Wired remote control
Battery:                              Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72"(1.83m)
Fairlead:                           4-way roller fairlead
Steel cable:                      Ф9.5 x 88 ft (Ф9.5 x 27 m ) or synthetic rope
Weight:                             82 pound (37kg )
Overall dimension:            21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm)
Mounting bolt pattern:       10" x 4.5" (254mm x 114.3mm)

Prod Model:	XM-TE916
Pulling Rate:	10500 Lb
Weight:	37 Kg
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
