POINT series of conveyor belt jointing machine
Specifications
1.For repair small rips, holes and punctures in rubber cover
2.Improved Construction
3.Lightweight and portable repair press
1. Specification

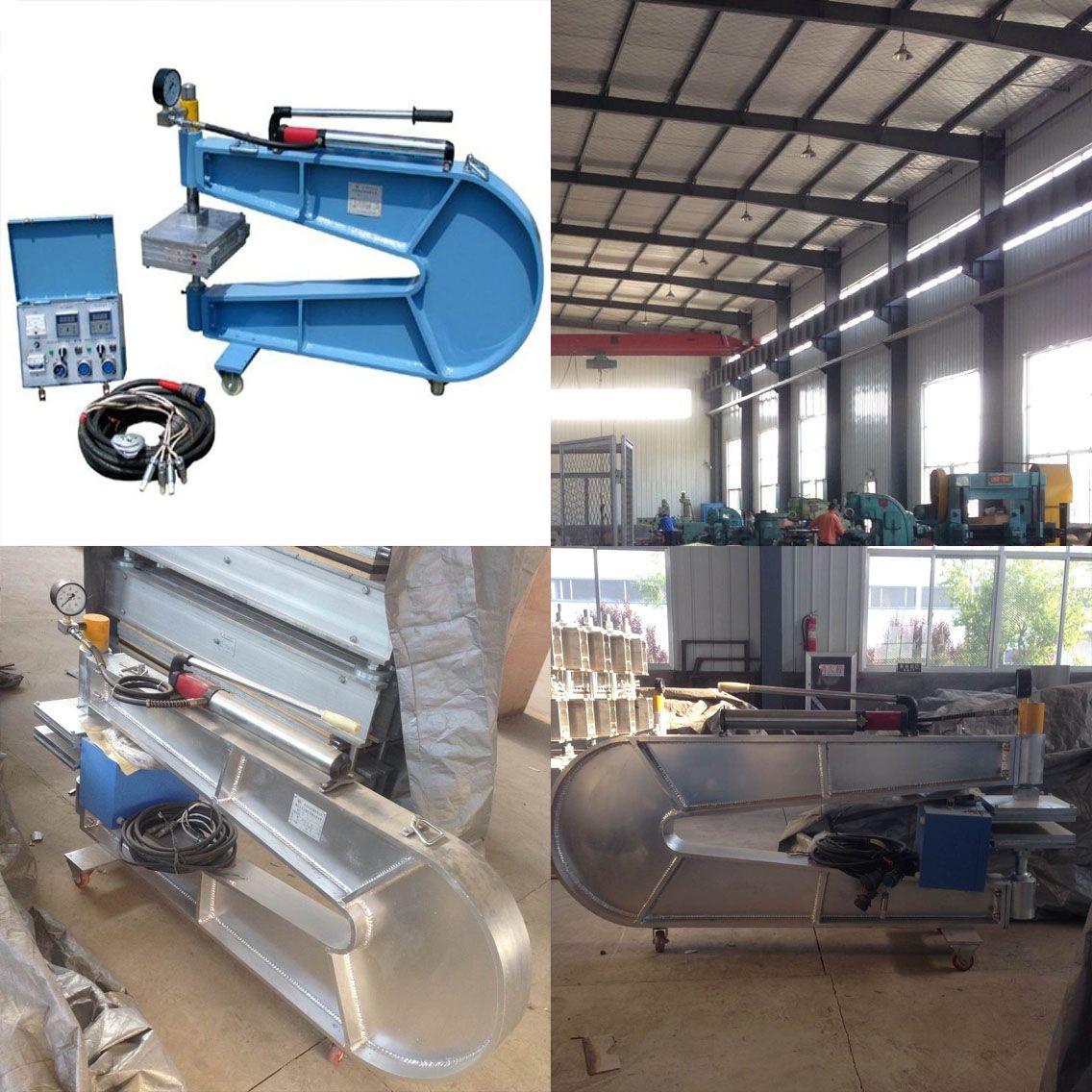

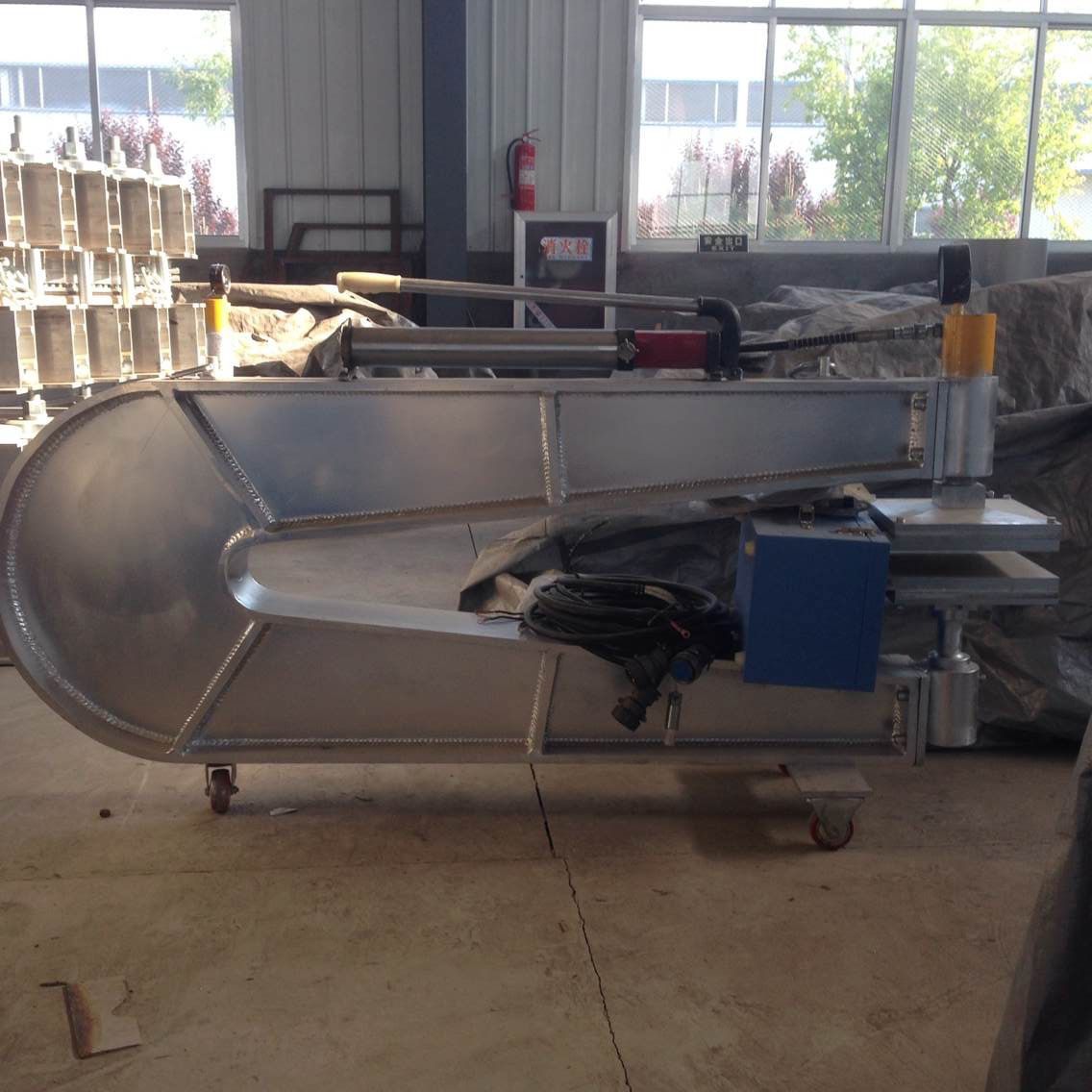

Compact spot repair vulcanizer in light-weight construction for spot repairs on rubber conveyor belts.
- In light-weight construction for spot repairs on rubber conveyor belts. All the parts use aluminum.
- Particularly easy-to-transport due to the low weight of the single parts
- Transportation by only one person is possible, as there are only two components and light weight.
- For belt width under 1600mm
- With hydraulic pressure bag for steelcord belt repairs or mechanical structure for low pressure requirements.
- Compare with belt vulcanizer, it used smaller controller, also with temperature and time automatic control.
- Compare with old spot repair press, the whole structure use aluminum alloy, easy operation and light weight.
- Pressure: 0.3~0.4Mpa
- Power 1.6~1.7KW
- Voltage: Single phase 220V
- Heating platen dimension: 350*350mm, (Almex SSP repair presses use 300*300mm heating platen)
Features of a Spot Repair Vulcanizer
1. spot repair vulcanizer ready for use for the repair of conveyor belts
2. particularly easy-to-transport due to the low weight of the single parts
3. transportation by only one person is possible, as there are only two components
Repair vulcanizers are constructed to customers requirements. Depending on the model and the size of the heating platens, c-clamp vulcanizers can be used for spot, edge, and rip-repairs.
For the side of the belt, long rips
Multifunction, combined type used for small holes or long rips
Conveyor Belt type
Model
|
DDQ-1 DDQ-2
|
DJQ
|
DZQ
|
Application
|
For small holes
|
For the side of the belt, long rips
|
Multifunction, combined type used for small holes or long rips
|
Conveyor Belt type
|
Canvas, nylon, steel cord belt
|
Canvas, nylon, steel cord belt
|
Canvas, nylon, steel cord belt
|
Repair Belt width
|
650-2600
DDQ-1 used for wider than 1400mm
DDQ-2 used for under 1400mm
|
650-2600
|
650-2600
|
Max rips size (mm)
|
250x250
|
100 (200) x 900
100 (200) x 1400
|
250x1380
|
Heating plate size (mm)
|
350x350
|
160x1000
160x1500
|
350x1500
350x1000
|
Temperature range
|
0~200°C
|
0~200°C
|
0~200°C
|
Voltage
|
380V or 220V or other special voltage
|
380V or 220V or other special voltage
|
380V or 220V or other special voltage
|
Pressure
|
0.4Mpa
|
0.4Mpa
|
0.4Mpa
|
| Prod Model: |
YXL-250x300~300x300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
250X300~300X300 |
