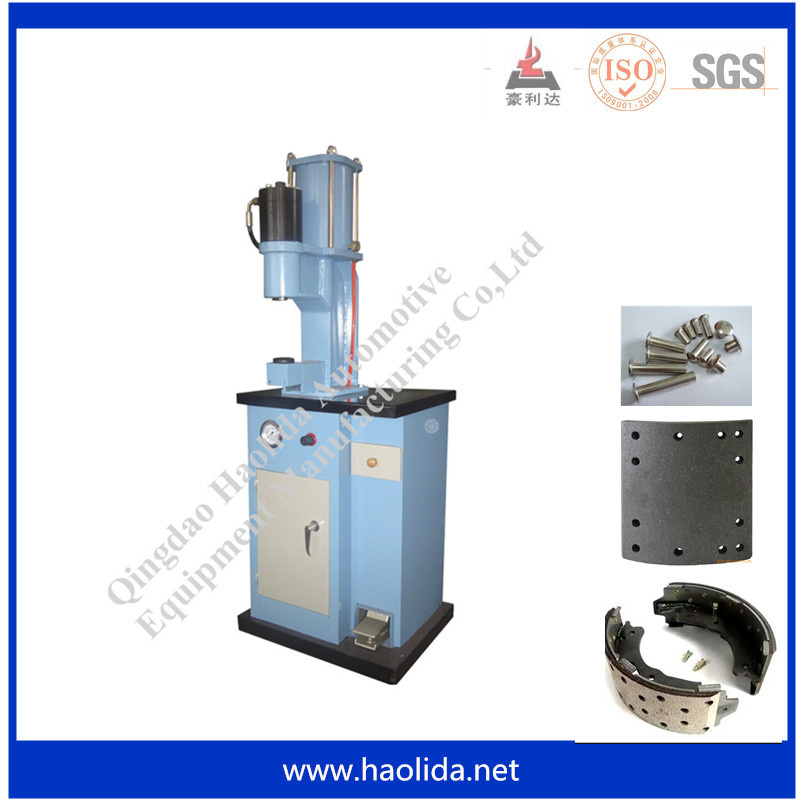

Pneumatic Hydraulic Brake Lining Rivet Machine
| Price: |
US $ 430-460/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Pneumtic hydraulic brake shoe riveting machine
1.Function introduction
Pneumatic brake shoe riveting machine uses compressed air as its power source and makes the riveting by hydraulic pressure. It features novel structure, easy operation, stable center alignment and adjustable riveting force etc.
This brake shoe riveting machine is suitable for riveting and punching of all kinds of truck braking shoe plate rivet, being copper or aluminum and also can used for riveting of other auto parts like clutch friction plate
2.Technical parameter
Max riveting force : 60KN (6T)
Rated working pressure : 0.5-1MPA
Diameter of allowable rivet : 3mm-10mm
Effective travel distance of the traveler : 40mm
Height adjusting distance of the shoe iron bracket : 20mm.

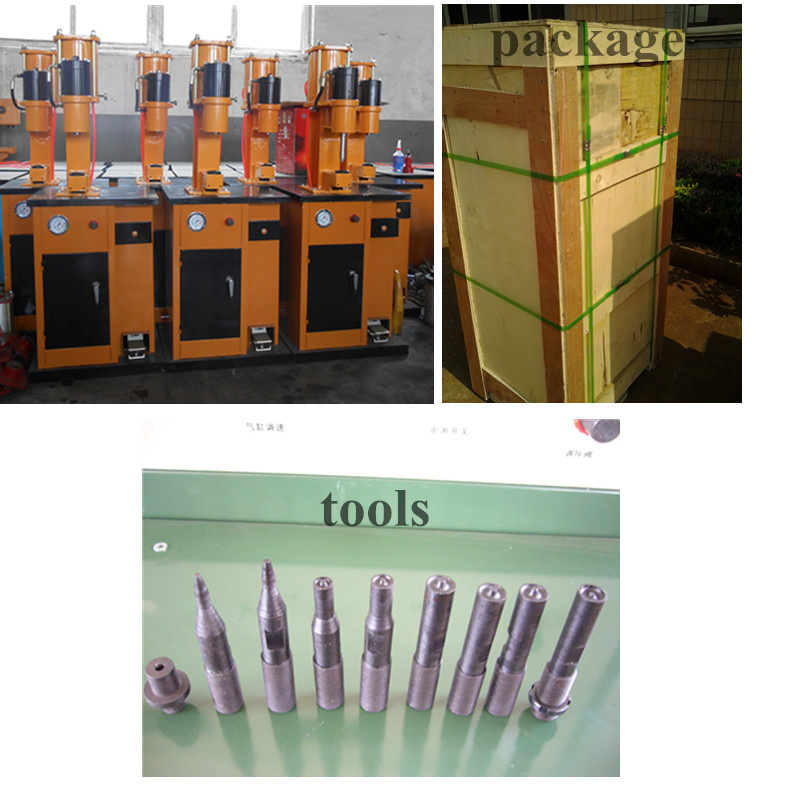

Tools & Accessories
Riveter: 6 Pcs, can be used to rivet or press Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets
Puncher: 2 Pcs, can be used to punch Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets
| Prod Model: |
QY-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Pneumatic Hydraulic |
| Max Rivet Diameter: |
10mm |
| Air Source Pressure: |
0.5-0.9MPa |
| Stroke: |
40mm |
