Pneumatic Forklift Tyres with Rim Guard for Heavy Duty Applications
| Price: |
US $ 130/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |

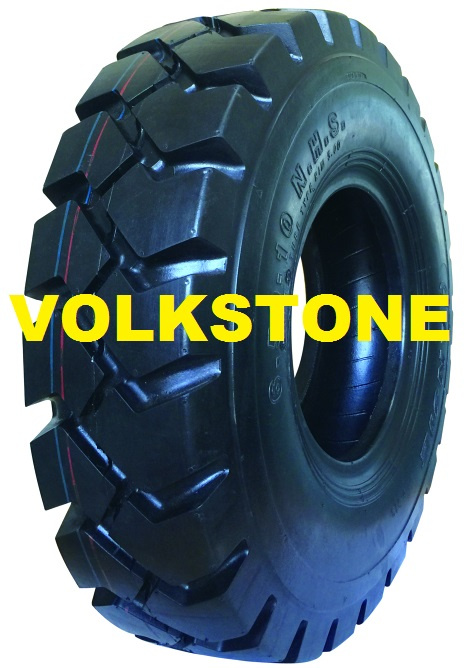

Pneumatic Forklift Tyres with Rim Guard for heavy duty applications:
Volk pneumatic forklift tires features a heavy duty cross-ply construction with a tough undertread and bead area.It has a reinforced sidewall to give additional puncture protection and lower deflection than other tires in its class. | SIZE | P.R. | STD.RIM | INFLATION PRESSURE | S.W. | O.D. | MAX LOAD(FORKLIFT DRIVE) | MAX LOAD(FORKLIFT ROTATION) |
| 10MPH | 10MPH | 15MPH | 15MPH | 15MPH | 15MPH | 20MPH | 20MPH |
| KPA | PSI | (INCH) | (INCH) | (PSI) | (KG) | (PSI) | (KG) | (PSI) | (KG) | (PSI) | (KG) |
| 15×7-8 | 16 | 5.5 | 1030 | 150 | 7.62 | 15 | 4724 | 2143 | 4255 | 1930 | 3594 | 1630 | 3158 | 739 |
| 16×6-8 | 16 | 4.33 | 1030 | 150 | 6.68 | 16 | 4083 | 1852 | 3679 | 1669 | 3108 | 1410 | 2730 | 639 |
| 18×7-8 | 8 | 4.33 | 655 | 95 | 6.63 | 18.3 | 2965 | 1345 | 2670 | 1211 | 2255 | 1023 | 1980 | 464 |
| 12 | 4.33 | 965 | 140 | 6.63 | 18.3 | 3720 | 1687 | 3345 | 1517 | 2825 | 1281 | 2485 | 581 |
| 16 | 4.33 | 1000 | 145 | 6.63 | 18.3 | 4695 | 2130 | / | / | 3615 | 1640 | / | 744 |
| 18 | 4.33 | *1030(high load) | *150(high load) | 6.63 | 18.3 | 3850 | 1746 | 3468 | 1573 | 2929 | 1329 | 2578 | 603 |
| 21×8-9 | 14 | 6 | 1000 | 145 | 8 | 21 | 5180 | 2350 | 4660 | 2114 | 3940 | 1787 | 3460 | 811 |
| 21×8-9 | 16 | 6 | *1030(high load) | *150(high load) | 8 | 21 | 5257 | 2385 | 4736 | 2148 | 4014 | 1821 | 3527 | 826 |
| 21×8-9 | 18 | 6 | *1100(high load) | *160(high load) | 8 | 21 | 5462 | 2478 | 4921 | 2232 | 4170 | 1891 | 3664 | 858 |
| 23×9-10 | 16 | 7 | 1030 | 150 | 9 | 23 | 6700 | 3039 | 6000 | 2722 | 5080 | 2304 | 4460 | 1045 |
| 23×9-10 | 18 | 7 | *1100(high load) | *160(high load) | 9 | 23 | 6962 | 3158 | 6233 | 2827 | 5282 | 2396 | 4637 | 1087 |
| 23×9-10 | 20 | 7 | *1170(high load) | *170(high load) | 9 | 23 | 7203 | 3267 | 6448 | 2925 | 5464 | 2478 | 4798 | 1124 |
| 23×9-10 | 22 | 7 | *1240(high load) | *180(high load) | 9 | 23 | 7413 | 3362 | 6678 | 3029 | 5659 | 2567 | 4969 | 1164 |
| 23×10.1-12 | 14 | 8 | 830 | 120 | 10 | 23.5 | 7250 | 3289 | 6500 | 2948 | 5500 | 2495 | 4820 | 1132 |
| 23×10.1-12 | 18 | 8 | 1030 | 150 | 10 | 23.5 | 8250 | 3742 | 7400 | 3357 | 6250 | 2835 | 5500 | 1286 |
| 23×10.1-12 | 22 | 8 | *1170(high load) | *170(high load) | 10 | 23.5 | 8787 | 3986 | 7887 | 3577 | 6662 | 3022 | 5896 | 1371 |
| 27×10-12 | 12 | 8 | 725 | 105 | 10 | 26.86 | 7160 | 3248 | 6445 | 2923 | 5445 | 2470 | 4785 | 1120 |
| 27×10-12 | 16 | 8 | *930(high load) | *135(high load) | 10 | 26.86 | 8298 | 3764 | 7475 | 3391 | 6314 | 2864 | 5548 | 1299 |
| 27×10-12 | 20 | 8 | *1030(high load) | *150(high load) | 10 | 26.86 | 8827 | 4004 | 7952 | 3607 | 6716 | 3046 | 5902 | 1382 |
| 27×10-12 | 24 | 8 | *1100(high load) | *160(high load) | 10 | 26.86 | 9165 | 4157 | 8256 | 3745 | 6973 | 3163 | 6125 | 1435 |
| 28×9-15 | 12 | 7 | 830 | 120 | 8.7 | 27.8 | 6880 | 3121 | 6190 | 2808 | 5230 | 2372 | 4595 | 1076 |
| 28×9-15 | 14 | 7 | 965 | 140 | 8.7 | 27.8 | 7530 | 3416 | 6775 | 3073 | 5720 | 2595 | 5030 | 1177 |
| 28×9-15 | 16 | 7 | *1030(high load) | *150(high load) | 8.7 | 27.8 | 7815 | 3545 | 7040 | 3193 | 5941 | 2695 | 5220 | 1222 |
| 28×12.5-15 | 26 | 9.75 | 1030 | 150 | 13 | 28 | 14102 | 6397 | 12705 | 5763 | 10730 | 4867 | 9429 | 2208 |
| 32×12.5-15 | 26 | 9.75 | 1030 | 150 | 12 | 32.5 | 17623 | 7994 | 15877 | 7202 | 13410 | 6083 | 11784 | 2759 |
| 32×12.5-15 | 32 | 9.75 | 1100 | 160 | 12 | 32.5 | 18303 | 8302 | 16489 | 7479 | 13927 | 6317 | 12238 | 2865 |
| 38×16-20 | 32 | 11.5 | 1030 | 150 | 16 | 38.5 | 16800 | 7620 | 13200 | 5987 | / | / | / | / |
| 4.00-8 | 6 | 2.5 | 725 | 105 | 4.25 | 16.65 | / | / | / | / | / | / | / | / |
| 5.00-8 | 8 | 3 | 790 | 115 | 5.15 | 18.46 | / | / | / | / | 1830 | 830 | 1605 | 377 |
| 5.00-8 | 10 | 3 | *860(high load) | *125(high load) | 5.15 | 18.46 | / | / | / | / | 1910 | 866 | 1675 | 393 |
| 5.00-8 | 12 | 3 | *1000(high load) | *145(high load) | 5.15 | 18.46 | / | / | / | / | 2084 | 945 | 1828 | 429 |
| 6.00-9 | 10 | 4 | 860 | 125 | 6.3 | 21.46 | 3715 | 1685 | 3340 | 1515 | 2820 | 1279 | 2480 | 580 |
| 6.00-9 | 10 | 4 | 860 | 125 | 6.3 | 21.46 | 3715 | 1685 | 3340 | 1515 | 2820 | 1279 | 2480 | 580 |
| 6.00-9 | 12 | 4 | 1030 | 150 | 6.3 | 21.46 | 4130 | 1873 | 3715 | 1685 | 3140 | 1424 | 2760 | 646 |
| 6.50-10 | 10 | 5 | 790 | 115 | 7 | 23.5 | 4225 | 1916 | 3805 | 1726 | 3210 | 1456 | 2825 | 660 |
| 6.50-10 | 12 | 5 | *860(high load) | *125(high load) | 7 | 23.5 | 4562 | 2069 | 4110 | 1864 | 3468 | 1573 | 3053 | 714 |
| 6.50-10 | 14 | 5 | *1000(high load) | *145(high load) | 7 | 23.5 | 4976 | 2257 | 4483 | 2033 | 3783 | 1716 | 3330 | 778 |
| 6.50-16 | 8 | 5 | 620 | 90 | 7 | 29.5 | 4960 | 2250 | 4460 | 2023 | 3780 | 1715 | 3320 | 778 |
| 6.50-16 | 10 | 5 | *1030(high load) | *150(high load) | 7 | 29.5 | 5255 | 2384 | 4725 | 2143 | 4008 | 1818 | 3522 | 825 |
| 7.00-9 | 10 | 5 | 830 | 120 | 7.48 | 23.23 | 5029 | 2281 | 4724 | 2143 | 4008 | 1818 | 3634 | 825 |
| 7.00-9 | 10 | 5 | 830 | 120 | 7.48 | 23.23 | 5029 | 2281 | 4724 | 2143 | 4008 | 1818 | 3634 | 825 |
| 7.00-12 | 12 | 5 | 860 | 125 | 7.57 | 26.88 | 5995 | 2719 | 5395 | 2447 | 4555 | 2066 | 4005 | 937 |
| 7.00-12 | 14 | 5 | 1000 | 145 | 7.57 | 26.88 | 6535 | 2964 | 5885 | 2669 | 4970 | 2254 | 4365 | 1023 |
| 7.00-12 | 16 | 5 | *1030(high load) | *150(high load) | 7.57 | 26.88 | 6639 | 3011 | 5981 | 2713 | 5052 | 2292 | 4439 | 1039 |
| 7.00-15 | 12 | 5.5 | 860 | 125 | 8 | 30 | 6780 | 3075 | 6185 | 2805 | 5220 | 2368 | 4590 | 1074 |
| 7.00-15 | 14 | 5.5 | 1000 | 145 | 8 | 30 | 7495 | 3400 | 6745 | 3059 | 5695 | 2583 | 5005 | 1172 |
| 7.00-15 | 16 | 5.5 | *1030(high load) | *150(high load) | 8 | 30 | 7622 | 3457 | 6866 | 3114 | 5799 | 2630 | 5096 | 1193 |
| 7.50-15 | 12 | 6 | 790 | 115 | 8.45 | 31.82 | 7690 | 3488 | 6920 | 3139 | 5845 | 2651 | 5135 | 1203 |
| 7.50-15 | 14 | 6 | *860(high load) | *125(high load) | 8.45 | 31.82 | 8073 | 3662 | 7273 | 3299 | 6143 | 2786 | 5398 | 1264 |
| 7.50-15 | 16 | 6 | *1000(high load) | *145(high load) | 8.45 | 31.82 | 8805 | 3994 | 7932 | 3598 | 6699 | 3039 | 5887 | 1378 |
| 7.50-16 | 10 | 6 | 655 | 95 | 8.45 | 32.82 | 7150 | 3243 | 6450 | 2926 | 5440 | 2468 | 4780 | 1119 |
| 7.50-16 | 12 | 6 | *790(high load) | *115(high load) | 8.45 | 32.82 | 7969 | 3615 | 7192 | 3262 | 6070 | 2753 | 5333 | 1249 |
| 8.25-12 | 12 | 6.5 | 760 | 110 | 9.25 | 30.12 | 8259 | 3746 | 7477 | 3391 | / | / | 5748 | / |
| 8.25-12 | 12 | 6.5 | 760 | 110 | 9.25 | 30.12 | 8259 | 3746 | 7477 | 3391 | / | / | 5748 | / |
| 8.25-15 | 12 | 6.5 | 725 | 105 | 9.3 | 33.36 | 8680 | 3937 | 7810 | 3543 | 6595 | 2991 | 5800 | 1357 |
| 8.25-15 | 14 | 6.5 | 830 | 120 | 9.3 | 33.36 | 9385 | 4257 | 8445 | 3831 | 7135 | 3236 | 6270 | 1468 |
| 8.25-15 | 16 | 6.5 | *1000(high load) | *145(high load) | 9.3 | 33.36 | 10446 | 4738 | 9411 | 4269 | 7948 | 3605 | 6984 | 1635 |
| 10.00-20 | 16 | 7.5 | 790 | 115 | 10.95 | 42.23 | 14910 | 6763 | 13420 | 6087 | 11330 | 5139 | 9960 | 2331 |
| 10.00-20 | 20 | 7.5 | *860(high load) | *125(high load) | 10.95 | 42.23 | 15563 | 7059 | 14021 | 6360 | 11862 | 5380 | 10423 | 2441 |
| 10.00-20 | 26 | 7.5 | *1000(high load) | *145(high load) | 10.95 | 42.23 | 17005 | 7713 | 15320 | 6949 | 12939 | 5869 | 11370 | 2662 |
| 12.00-20 | 16 | 8.5 | 690 | 100 | 12.4 | 45.1 | 17095 | 7754 | 15385 | 6978 | 12995 | 5894 | 11420 | 2674 |
| 12.00-20 | 20 | 8.5 | *860(high load) | *125(high load) | 12.4 | 45.1 | 19472 | 8832 | 17542 | 7957 | 14816 | 6720 | 13019 | 3048 |
| 12.00-20 | 26 | 8.5 | *1000(high load) | *145(high load) | 12.4 | 45.1 | 21238 | 9633 | 19134 | 8679 | 16160 | 7330 | 14200 | 3325 |
| 250-15 | 16 | 7.5 | 930 | 135 | 9.84 | 28.94 | 9450 | 4286 | 8500 | 3856 | 7200 | 3266 | 6300 | 1481 |
| 250-15 | 18 | 7.5 | 1030 | 150 | 9.84 | 28.94 | 10100 | 4581 | 9050 | 4105 | 7650 | 3470 | 6700 | 1574 |
| 250-15 | 26 | 7.5 | 1170 | 170 | 9.84 | 28.94 | 10844 | 4919 | 9717 | 4408 | 8214 | 3726 | 7205 | 1690 |
| 300-15 | 18 | 8 | *900(high load) | *130(high load) | 11.81 | 33.08 | 14143 | 6415 | 12673 | 5748 | 10712 | 4859 | 9397 | 2204 |
| 300-15 | 20 | 8 | 930 | 135 | 11.81 | 33.08 | 14500 | 6577 | 13100 | 5942 | 11000 | 4989 | 9700 | 2263 |
| 300-15 | 26 | 8 | *1170(high load) | *170(high load) | 11.81 | 33.08 | 16589 | 7525 | 14945 | 6779 | 12559 | 5697 | 11075 | 2584 |
FEATURES:
Superior puncture protection
Excellent driver comfort
High resistance to sidewall damage
Lower deflection
| Prod Model: |
28x9-15/8.15-15 |
| Guarantee: |
Until Safetyline |
QINGDAO VOLKSTONE RUBBER TECHNOLOGY CO., Ltd is the professional manufacturer of industrial tyres. As an enterprise for researching, developing, producing and selling of industrial tyres, we have strict quality control system, great technology and test method.
"VOLKSTONE" is our excellent brand. Our main products include solid and pneumatic tyres, for forklifts, skid steers, loaders, port equipments etc. All our products are with a premim cooler compound, with a lower heat built-up. So they could be widely used in steel works, mining areas, construction and others areas in tough operations, and exported to USA, EU, South Africa, Brazil, Japan, Korea, Australia and so on.
In the light of the company management philosophy"be responsible to products, be responsbile to customers", the company will preservce in providing high quality products and service to customers from all over the world.
