Painting Room Electric Drive Lift Platform
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

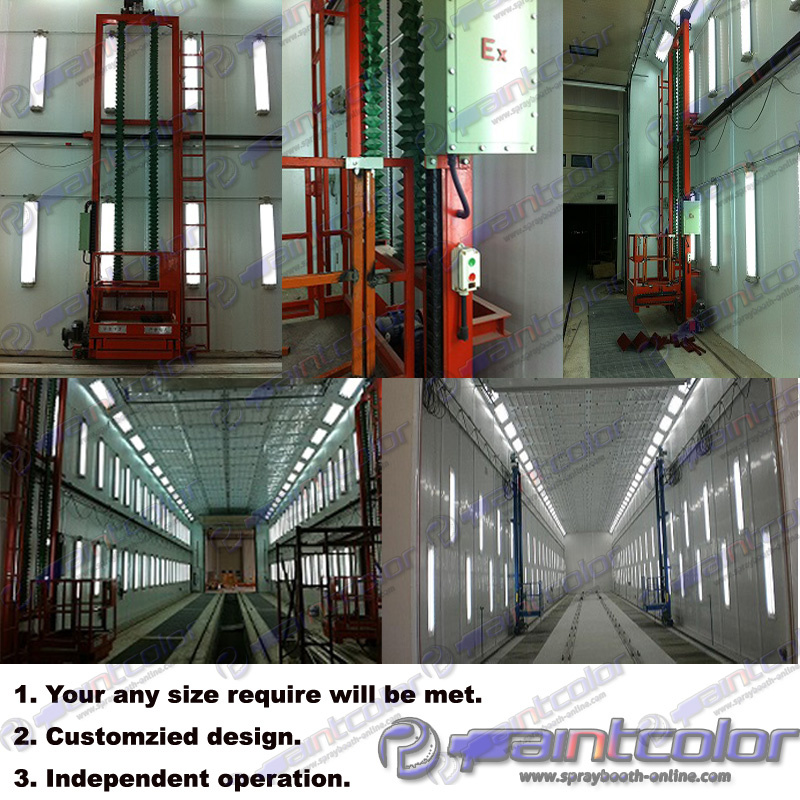

Electric Drive Lift Platform for spray booth, painting room, industrial paint booth and large spray booth.
Working principleFor the convenience of the operators at the top and the end face of the workpiece spraying operations, it is set the three-dimensional electric drive movable workbench on each side of the workpiece, a total of two sets. The workbench has three directions of movement, the first is along the horizontal motion of the ground orbit, the second is the lifting movement up and down the double columns, and the third is perpendicular to the horizontal motion of the column of forklift device workbench, so as to realize the action of three dimensional requirements. Workbench is equipped with safety protection device, the falling prevention device; the limit of rise and fall protection devices; workbench rail protection, three direction movements pneumatic chain protection, etc. It is with the feature of safe and reliable, convenient operation and low noise performance. All operating switch located in the movable workbench, in order to facilitate operation. At the same time three-dimensional workbench with the safety device ensure the safety of operating personnel when the power cut off. Technical parameters1. Max lifting height(Y-axis): 4500mm2. Max transverse expansion(Z-axis): 1000mm3. Max lateral travel(X-axis): 18000mm4. Workbench(L×W×H): 1200x1000mm5. Safety load: ≤150kg6. Moving speed: ≤8m/min7. Lifting speed: ≤8m/min8. Power: 3kw (1.5kw for X-axis drive, 0.75kw for Y-axis drive, and 0.75kw for Z-axis drive)
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
