Paintcolor Paint Booth
| Price: |
US $ 4000-5000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Paintcolor standard auto paint booth
Model: PC-EC14-2S
| Specification in detail |

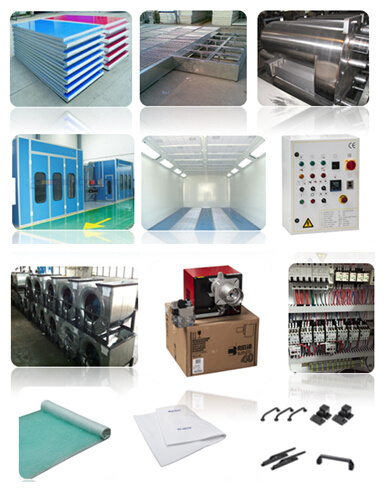

| Body structure | 1) Outside dimension: 7000*5250*3150mm (L*W*H) |
| 2) Inside dimension: 6900*3900*2500mm (L*W*H) |
| 3) Basement: galvanized steel assemble, 280mm high with quadrate steel support. 2 rows of grills made by flat bar and twisted steel, 3 rows of indented plates. 2ramps external setting with the size 500*1800mm(W*L)/pc |
| 4) Main door: 3-fold( 3 leaf), 3000*2500mm (W*H);1pcs |
| Working door: 650*1800mm (W*H), 1pcs |
| 5) Wall Panels: thickness is 50 mm, and insulation is flame-resistant and heat-preserving EPS panel 0.326mm double skinned sheet;galvanized sheet roof plate |
| 8) Generator: back upper intake air, back upper extract air, quadrate steel frame, no powder coating steel |
| Lighting system | 6) Lighting: Ceiling Lights: 8Groups*3Pcs=24Pcs *36W;Philips lamps |
| 7) Glass: all glass is toughened glass; |
| Air ventilation system | 9) Air ventilation system: |
| Intake fan: 2sets centrifugal fan, 3KW motor, air capacity: 20000m3/h |
| Air exhaust pipe: 2.5m from the cabin and 1 elbow; |
| Heating system | 10) Heating system: SUS202 stainless steel material, argon arc welding. Riello G10 diesel burner with max heating capacity 100000kcal/h; 10N BELIMO electric damper from spray to baking |
| Filtering system | 11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter |
| Electric control system | 12) Control box: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, emergency stop, failure indicator, temperature control meter |
| The Voltage Require: 380V, 3PH, 50Hz |
| The Total Power: 7.5KW |
EC series Paintcolor spray booth is our new batch production to meet different area customer groups. Its feature is the lower price, the more simple installation work and the more effective container space utilization. One 40' container would be full in 4 sets such spray booth. To get the latest price, please contact me by:
MB: 86-(0) 183 1681 9815 .
| Prod Model: |
PC-EC14-2S |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Configuration Level: |
Economic Type Spray Booth |
| Warranty Time: |
1 Year |
| Service Time: |
Lifelong Maintenance |
| Color: |
White, Blue, Red or Orange |
| Intake Fan Air Volume: |
20000m3/H |
| Inside Unloaded Air Speed: |
0.2m/S |
| Max Working Temperature: |
80 Degree Centigrade |
| Noise: |
Less Than 80dB |
| Tsp (Mg/ M3): |
Less Than 1.4 |
| The Voltage Require: |
380V/3p, 220V/3p, 220V/1p |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Auto Paint Booth |
| Brand: |
Paintcolor |
| Airflow Direction: |
Full Downdraft Airflow Way |
