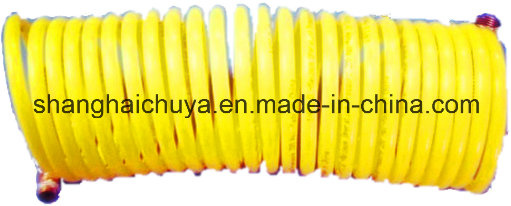

PA12 Brake Tube for Trailer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
SAEJ844 Suzi Brake Hose
Use for trailer or truck and so on
With 1/2"BSP Metal connector and spring
SAEJ844 Air Brake Hose, Pa12 Brake Tube for Trailer, Suzi Brake Hose
Product Characteristic
Besides has the nylon tube characteristic, it also has:
The loss of pressure is small
The brake reacts quickly PA12 -12*9 Air brake tube
The good reversion after use
The good wear-ability and the service life is long
Product Use:
The gas braking systems joint pipeline of saddle type semi-trailer and hauling trailer
As the follows are some standard size of the NY coil Hose
Product specs
Item No.
| Metric Measurement | Working
Pressure | Disruptive
Pressure | Bevelling
Radius |
| I.D. | O.D. |
| mm | mm | Kgf/cm2 | Kgf/cm2 | mm |
| PA0420 | 2.0 | 4.0 | 45.0 | 135.0 | 30.0 |
| PA0530 | 3.0 | 5.0 | 34.0 | 102.0 | 35.0 |
| PA0640 | 4.0 | 6.0 | 27.0 | 81.0 | 40.0 |
| PA0860 | 6.0 | 8.0 | 19.0 | 57.0 | 50.0 |
| PA1075 | 7.5 | 10.0 | 15.0 | 45.0 | 60.0 |
| PA1080 | 8.0 | 10.0 | 15.0 | 45.0 | 65.0 |
| PA1290 | 9.0 | 12.0 | 19.0 | 57.0 | 70.0 |
| PA1410 | 10.0 | 14.0 | 19.0 | 57.0 | 100.0 |
| PA1612 | 12.0 | 16.0 | 19.0 | 57.0 | 130.0 |
| Prod Model: |
12*9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Original: |
Shanghai |
| Type Of Fitting: |
1/2"Bsp |
| Demands: |
SAE G844,DIN |
| Length: |
3m,6m,7.5m,9m |
| Type: |
Brake Hose |
| Position: |
Front |
| Certification: |
ISO9001 |
| Material: |
Nylon |
