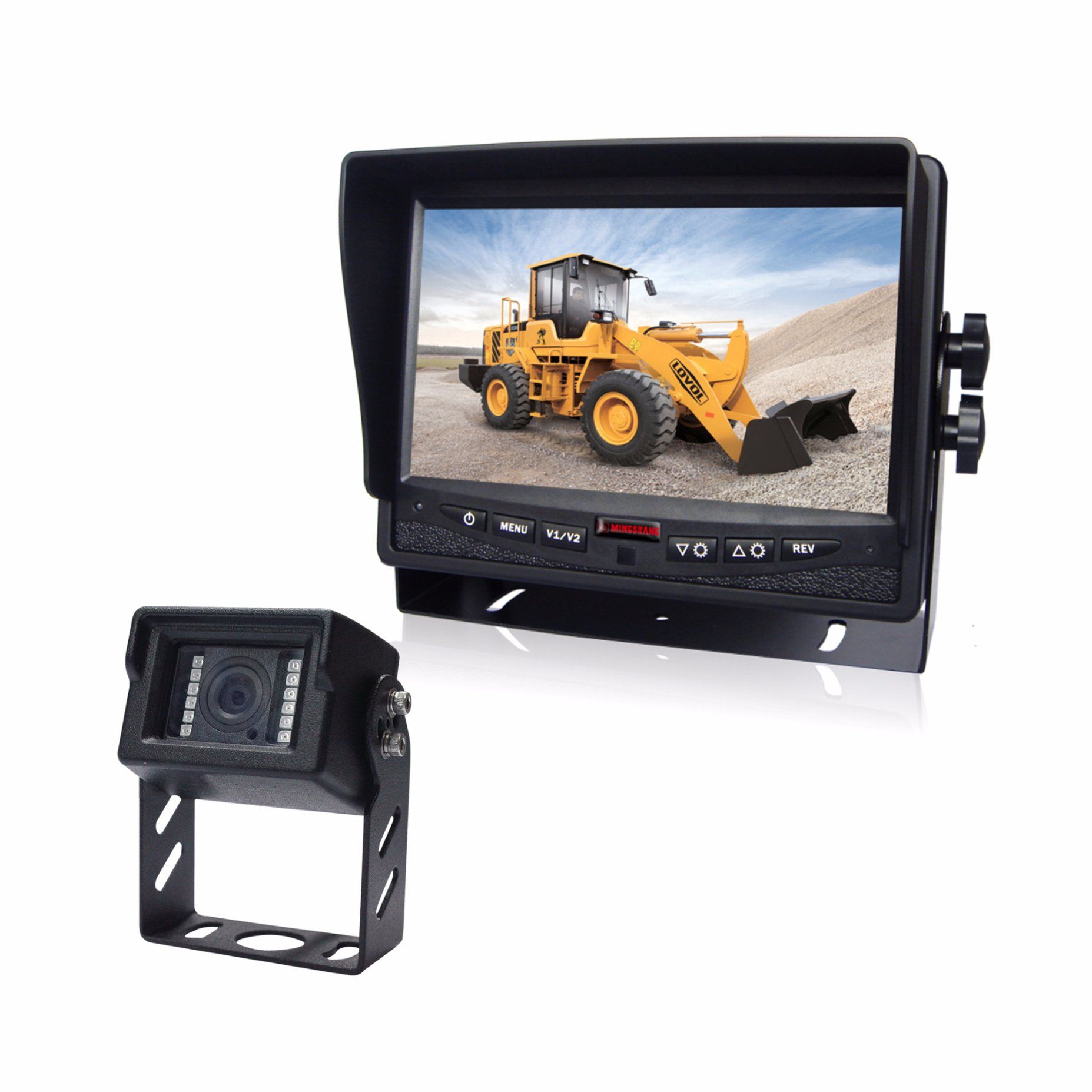

MS-708RSC
1. SET: 1pcs monitor , 1pcs camera , 1pcs extension cable and extra accessories.
2. 7" digital TFT LCD color monitor
3. 8 languages selection for user operation
4. Varied installation, butterfly or fan brackets or U-stand optional
5. Waterproof IP68 CCD IR camera with good night vision
Technique Information:
1. Input voltage available from DC 10V~ DC 36V
2. Mirror could be set separately in each channel with dimming function
3. 3 Channels video ,audio and 3 triggers
4. Grid lines could be adjusted up or down ,left or right
5. Built to withstand the shock and vibration associated with industrial applications
6. Dust and waterproof design, all connectors are waterproof
7. User could adjust the OSD menu.
7" TFT LCD monitor
1. Picture display format: 16:9
2. Resolution: 800*3(RGB)*480
3. Video system: Pal / NTSC automatically
4. Contrast : 500:1
5. Brightness : 400cd/m2
6. IR remote control
7. Visible angle: U: 40/D:40 L/R:70
8. Power supply: DC12V~24V
9. Operation temperature: - 20ºC~+70ºC
10. Storage temperature: - 30ºC~+ 80ºC
CCD IR Camera
1. 1/3 CCD sharp sensor
2. Waterproof: IP68
3. Pixels: NTSC: 769( H ) X494 ( V)
PAL: 752( H ) X582 ( V)
4. Resolution: 600 TV Lines
5. Minimum Light: 0Lux (LED ON)
6. S/N ratio; More than 48 Db
7. Video output: 1Vp-p 75Ω
8. Voltage:DC12V(+/-15%)
9. View angle : 120 degree
10. 12 pcs SMR IR LED for good night vision
11. Material: Zinc-alloy
Why do you must choose Mingshang?1. Having various test machines to ensure product quality and owning SMT line. More than 14years OEM and ODM experience. 2. Certificated with TS16949:2009&ISO9001:2008, passed CE, FCC, E-mark.etc and compliant with RoHs requirement.3. We have a strong and enthusiastic team to support you at anytime. Competitive price, top quality, good warranty and after-service are provided.
Other products you may be interested:
Welcome to contact us!
Welcome to visit our website ----http://www.mingshang.com/
Mingshang International Group has its head office in the Shenzhen China and consists of Shenzhen mingshang industrial co, Ltd, Mingzong technology co, Ltd and Mingshang high technology(huizhou) co, Ltd
Found in 2003, Mingshang has produced excellence car visual safety solutions to the worldwide vehicles markets, is the one of China's leading suoopliers of backup camera system, Rear view camera system, mobile DVR and so on.
MINGSHANG is one of China's leading suppliers and manufacturers for Wired and Wireless Rear View Camera Systems, and Mobile DVR for
- Commercial and School Buse
- RV's and Motorhomes.
- Cargo and Delivery Vans.
- Trucks and Trailers.
Products:
1. Trailer camera system
2. Forklift camera system
3. HD heavy duty camera system in wired and digital wireless
4. Mobile DVR
5. Wireless hitch camera system---for trailer, horsebox, caravan, forklift, Boat
6. Recordering 4CH wireless camera system
MINGSHANG has over 14 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.
MINGSHANG is proudly to server Ford, GMC, YUTONG BUS, KINGLONG, and Dometic (Waeco).
MINGSHANG certified with TS16949: 2009 & ISO9001: 2008 International Quality Management System since 2011, also compliant with RoHS requirements. The certificates include CE, FCC, and E-MARK...etc.
