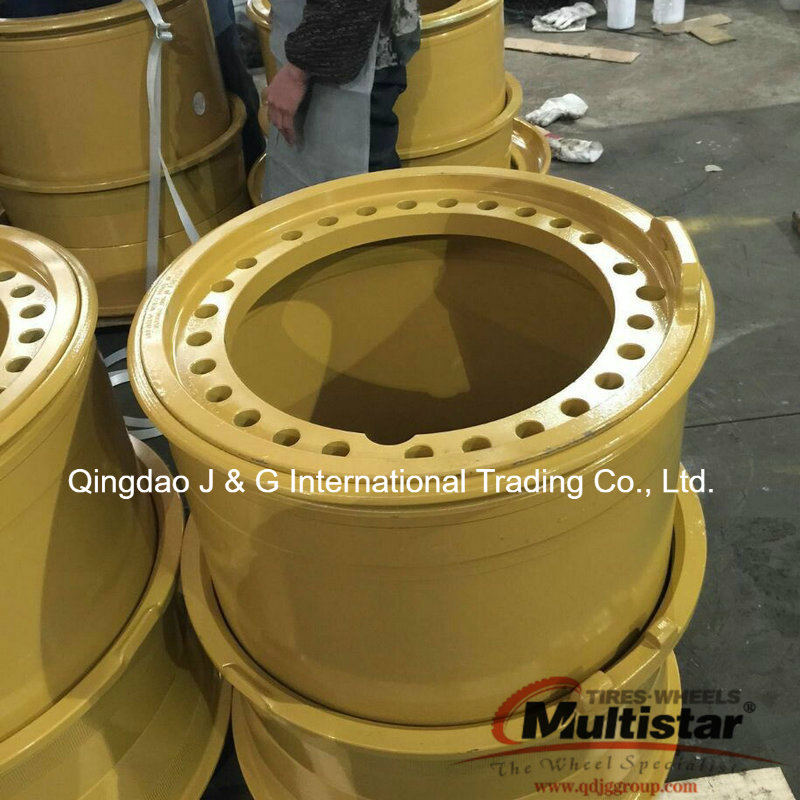

| Prod Model: |
33-28.00/3.5, 33-17.00/3.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Size: |
33-28.00/3.5, 33-17.00/3.5 |
| Fitted Tyre: |
35/65r33, 24.00r35 |
| Type Of Rim: |
Tubeless |
| 3PC Or 5PC: |
5PC |
| Colour: |
Black, Yellow etc. |
| Assembly (Tyre With Rim ): |
Available |
| Fitted Machinery: |
Dump Truck, Mining Equipment etc. |
| Material: |
Steel |
| Type: |
Rim |
| Drive Wheel: |
RWD |
| Certification: |
ISO |
| Wheel Hub Diameter: |
35 Inch, 33 Inch |
| Finishing: |
Painting |
| Spoke Type: |
Weld Disc |
| Wheel Hub Brand: |
Multistar |
Product Description
Specialized in manufacturing and exporting tyres and wheels to all over the world. And we can supply wheel rims and tires, and are especially professional in truck wheel, agricultural wheel and assemblies and components for OTR wheel and engineering wheel with multi-pieces for earthmover.
And we believe that the quality is the soul of an enterprise. Therefore, we always put quality as the frist consideration.
And we have dealed with OTR wheel for many years. Our main markets are Australia, South Africa, South America and Asia. We also supply OEM service to many vehicle factories not only in domestic but also abroad. And We are now available a wide range of Earthmover wheels with diam from 20" to 63" for mine, underground, port and bridge, etc. And the rim components such as bead bands, lock rings, side rings also can be supplied.
Components are also can be supplied such as
- rim base,
- bead seat band,
- lock ring,
- side ring/flange
- Drive key
- Drive pocke
- Gutter section
- Back section
And we can supply wheel rims for below models.
CAT785
CAT12G
CAT777
CAT 797
CAT AD55
CAT R2900
CAT AD45
CAT 980
CAT972
CAT966F
CAT950G
CAT930G
CAT 938G
CAT914G
CAT140G
KOMATSU HM 300-2
KOMATSU HD 785-5
KOMATSU HD 785-7
Other available OTR WHEEL RIM sizes as following
| Diameter | Type | Description | Tyres |
| 15" | Multipieces | 15-9.75/1.37 | 12.00-15 |
| 15-11.00/1.5 | 14.5-15 |
| 15-11.50/1.5 | |
| 16" | Multipieces | 16-8.00/0.83 | 11L-16 |
| 16.5 | Multipieces | 16.5-8.25/0.5 | 10-16.5 |
| 16.5-9.75/0.5 | 12-16.5NHS |
| 17.5" | Multipieces | 17.5-10.50/0.5 | 14-17NHS |
| 18" | Multipieces | 18-9.00/1.0 | 12.5/80-18 |
| 20" | Multipieces | 20-7.50/1.7 | 10.00-20 |
| 20-8.0/1.7 | 11.00-20 |
| 20-8.0/2.0 | 12.00-20 |
| 20-8.50/1.7 | 12.00-20 |
| 20-9.00/1.7 | 13.00-20 |
| 20-10.00/1.7 | 14.00-20 14.00R20 365/80-20 |
| 20-10.00/2.0 | 14.00-20 14.00R20 |
| 20-11.00/1.6 | 12.5-20 |
| 20-12.00/2.0 | 15.5-20 16.00-20 |
| 20-13.00/1.0 | 16/17-20 |
| 20-14.00/2.0 | 17.5-20 |
| 20-15.00/1.0 | 500/70-508 |
| 20-15.00/1.7 | 18L-20 |
| 20-15.30/2.0 | 500/70-508 |
| 21" | Multipieces | 21-11.25/2.0 | 16.00-21 |
| 21-17.00/2.0 | 20.00-21 1300X530-533 |
| 21-18.00/1.5 | 24.00R21 24.00-21 |
| 21-18.00/1.7 | 24.00R21 24.00-21 |
| 22" | Multipieces | 22-17.00/2.0 | |
| 23" | Multipieces | 23-11.00/1.5 | 14.00-23 |
| 23-18.00/2.0 | 24.00-23 |
| 24" | Multipieces | 24-8.00/1.7 | 13.00-24 |
| 24-8.50/1.7 | 12.00-24 |
| 24-10.00/1.7 | 14.00-24 |
| 24-10.00/2.0 | 14.00-24 |
| 24-10.00VA | 14.00-24 16.00-24TG |
| 24-11.25/2.0 | 16.00-24 |
| 24-15.00/1.0 | 17.5-24 |
| 24-16.00/1.1 | 19.5-24 |
| 24-16.00/1.7 | 54*21-24 |
| 25" | Multipieces | 25-8.50/1.3 | 13.00-25 |
| 25-9.50/1.7 | 14.00R25 |
| 25-10.00/1.5 | 14.00-25 14.00R25 |
| 25-11.00/1.7 | 16.00-25 |
| 25-11.25/2.0 | 16.00-25 |
| 25-12.00/1.3 | 15.5-25 |
| 25-13.00/2.5 | 18.00-25 |
| 25-14.00/1.5 | 17.5-25 |
| 25-14.00/2.0 | 17.5-25 |
| 25-15.00/3.0 | 21.00-25 |
| 25-17.00/1.7 | 20.5-25 |
| 25-17.00/2.0 | 20.5-25 |
| 25-19.50/2.5 | 23.5-25 |
| 25-22.00/1.84 | 26.5-25 |
| 25-22.00/3.0 | 26.5-25 |
| 25-24.00/2.5 | 29.5-25 |
| 25-24.00/3.0 | 29.5-25 |
| 25-25.00/3.5 | 26.5-25 |
| 25-36.00/1.5 | 24.00R35 |
| 26" | Multipieces | 26-16.00/1.1 | 18.4-26 |
| 26-20.00/1.1 | 23.1-26 |
| 27" | Multipieces | 27-21.50/2.4 | 57X25-27/50 |
| 27-23.50/2.5 | 57X25-27/50 |
| 27-24.50/2.4 | 26.00-27 |
| 28" | Multipieces | 28-15.00/1.0 | 16.9-28 |
| 29" | Multipieces | 29-17.00/3.5 | 24.00-29 |
| 29-24.00/3.0 | 776/65R29 775/65R29 |
| 29-24.00/3.5 | 776/65R29 775/65R29 |
| 29-25.00/3.5 | 29.5R29 |
| 29-27.00/3.5 | 33.25R29 |
| 33" | Multipieces | 33-13.00/2.5 | 18.00-33 |
| 33-26.00/1.14 | |
| 33-28.00/3.5 | 33.5R33 36/65R33 |
| 33-32.00/4.5 | 37.5 R 33 |
| 34" | Multipieces | 34-14.00/1.3 | |
| 34-16.00/1.3 | 53X18-34 |
| 35" | Multipieces | 35-15.00/3.0 | 21.00-35 |
| 35-17.00/3.5 | 24.00-35 |
| 35-22.00/3.5 | SOLID TYRE |
| 45" | Multipieces | 45-36.00/4.5 | 45/65R45 |
| 49" | Multipieces | 49-17.00/3.5 | 24.00-49 |
| 49-19.50/4.0 | 27.00-49 |
| 51" | Multipieces | 51-22.00/3.0 | SOLID TYRE |
| 51-28.00/4.5 | SOLID TYRE |
| 57" | Multipieces | 57-29.00/6.0 | 40.00R57 46/90R57 |
| 63" | Multipieces | 63-36.00/5.0 | 53/80R63 |
| 63-41.00/5.0 | 55/80-63 |
| 63-44.00/5.0 | 58/80-63 |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 25" | 25-8.50/1.3 | 13.00-25 | 10 | 24 | 335 | 281 | -10 |
| 25-9.50/1.7 | 14.00R25 | 10 | 27 | 335 | 281 | 61 |
| 25-10.00/1.5 | 14.00-25 | 10 | 24 | 335 | 281 | 80 |
| 25-11.00/1.7 | | 10 | 26 | 335 | 281 | 110 |
| 25-11.25/2.0 | 16.00-25 | 10 | 32.5 | 335 | 281 | 0 |
| 25-12.00/1.5 | 15.50-25 | WITHOUT DISC A=35 B=556 |
| 25-13.00/2.5 | 18.00-25 | 10 | 31 | 480 | 430 | 65 |
| 25-13.00/2.5 | 18.00-25 | WITHOUT DISC A=15 B=520 C=576 |
| 25-13.00/2.5 | 18.00-25 | DOUBLE DISC A=414 B=240 |
| 25-14.00/2.0 | 17.50-25 | 10 | 26 | 335 | 281 | 40 |
| 25-14.00/2.0 | 17.50-25 | WITHOUT DISC A=35 B=556 |
| 25-15.00/3.0 | 21.00-25 | WITHOUT DISC A=452 B=290 |
| 25-15.00/3.0 | 21.00-25 | DOUBLE DISC A=452 B=240 |
| 25-15.00/3.0 | 21.00-25 | 24 | 26 | 425 | 371 | 0 |
| 25-17.00/2.0 | 20.50-25 | 10 | 17 | 480 | 371 | 0 |
| 25-17.00/2.0 | 20.50-25 | WITHOUT DISC A=35 B=556 |
| 25-19.50/2.5 | 23.50-25 | 10 | 26 | 335 | 281 | 0 |
| 25-19.50/2.5 | 23.50-25 | WITHOUT DISC A=30 B=560 |
| 25-22.00/1.84 | 26.50-25 | 20 | 21 | 511.18 | 462 | -98.8 |
| 25-22.00/3.0 | 26.50-25 | 20 | 22 | 425 | 370 | -14 |
| 25-24.00/2.5 | 29.50-25 | WITHOUT DISC |
| 25-25.00/3.5 | 29.50-25 | 10 | 26 | 335 | 281 | 51 |
| 25-25.00/3.5 | 29.50-25 | WITHOUT DISC A=50 B=544 C=572 |
| 25-36.00/1.5 | 24.00R35 | WITHOUT DISC A=432 B=889 C=89 |
We can supply all kinds of steel wheel rims for many models which you can see below.
More information about us:
If you are interested with our wheel rims, welcome to contact with us.
With presence in over 70 countries across 6 continents, Qingdao J&G International Trading Co., Ltd has fastly grown up an One-stop professional supplier of a wide range of tires & wheels, and axles in China. We are to deliver superior value to our customers through focus on products, innovation, technology and cost efficient manufacturing and distribution practices.
The main component of Qingdao J&G's business is to supply the Mulitstar brand tires & wheels, and axles for the global "OEM" and aftermarkets, particularly for the farming applications, comerical vehicles, construction & earthmover equipments. Meanwhile, we are also supply a full specifications of steel wheels for mining, port handlings, Off-the-Road construction equipments. As well Alloy truck wheels are also available by us.

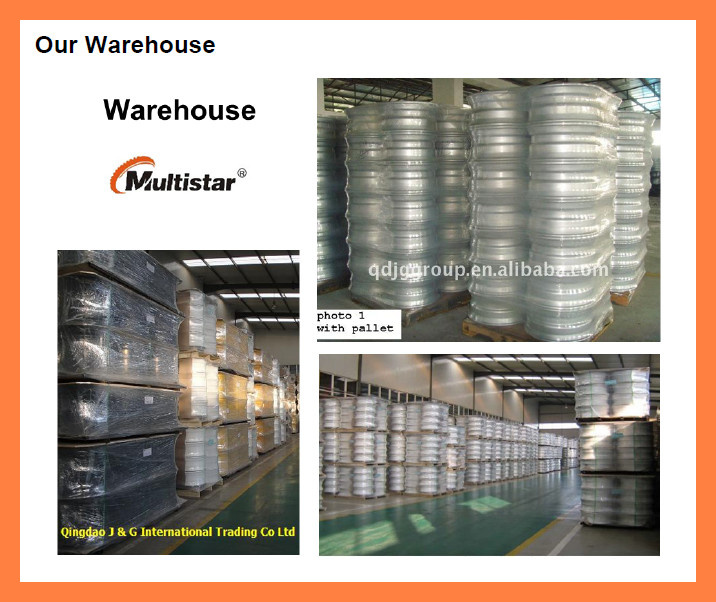

We have a well stocked warehouse in the Harbor of Qingdao now. A new bigger warehouse owned us is under construction, which is more than 2, 000 square meters. We can not only meet the demands of prompt shipment but also meet the demand of wheel assembly of tyres and rims for "OE" manufactures for the domestic and overseas markets.
Our extensive inventory of over 3000 units of complete wheel assemblies, and various range of tyres and rims, and also inner tubes and valves, clearly separaters them from our competition.
