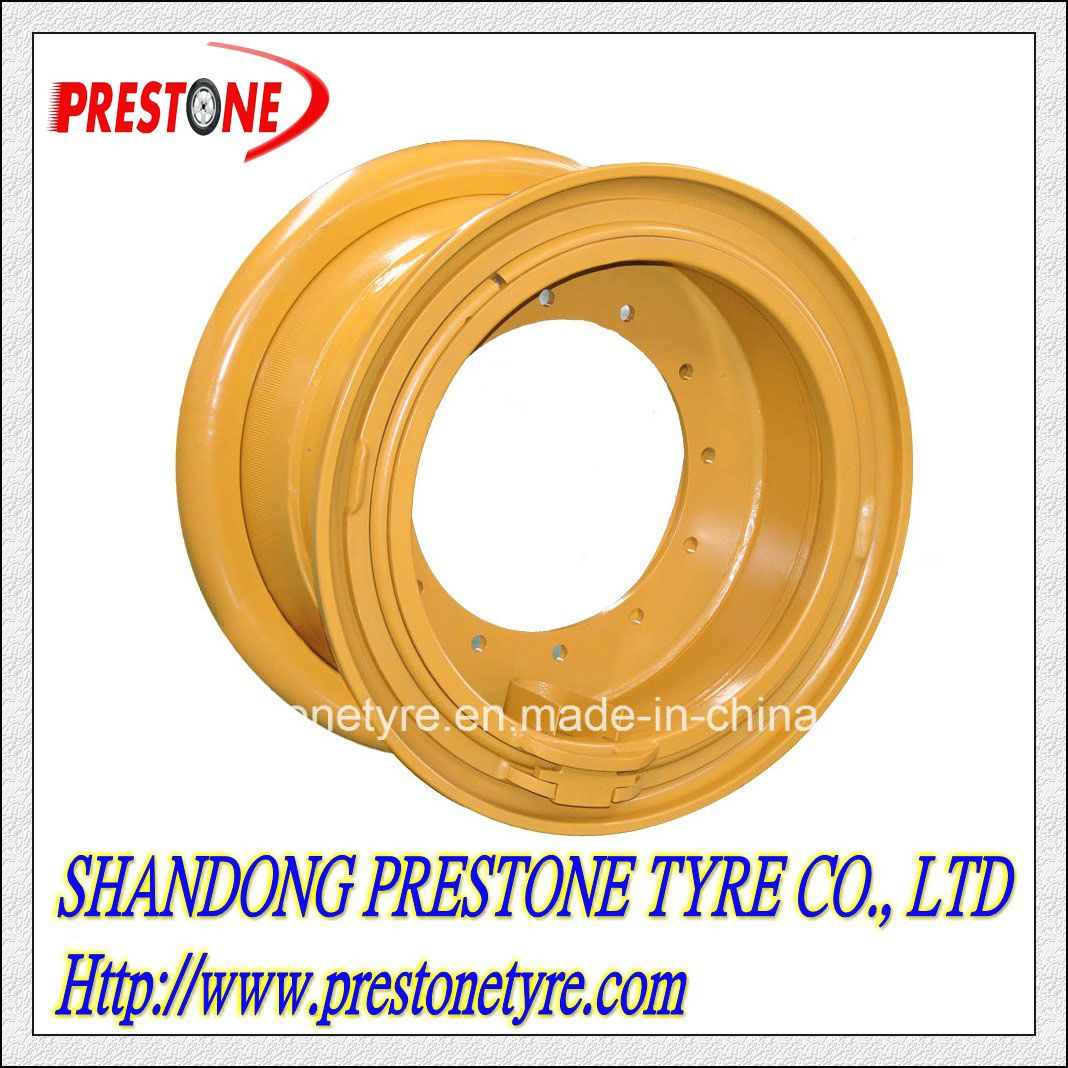

OTR rim/wheel(25X11.25 25X14.00 25X17.00 25X22.00 25X25.00):
Product Description
1. This rim features:
3-piece/5-piece rim: To ensure product quality, the company established the ISO9001 quality system, and configure the universal testing machine, air tightness testing machine, chemical detector and many other test equipment. Product quality by customers.

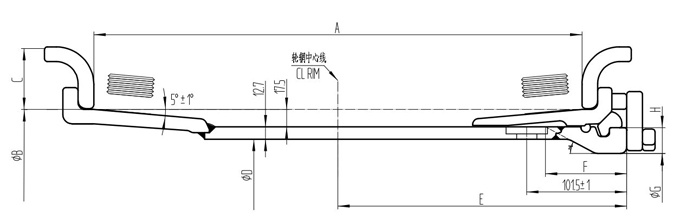

2. The detailed specification about OTR WHEELS/RIMS:
WHEEL
SIZE | STANDARD
TYRE | SPECIFICATION(MM) | WEIGHT
(KGS) | SPARE PARTS NO. |
| A | B | C | D | E | F | G | H | RIM BODY | SIDE RING | BEAD SEAT RING | LOCK RING |
| 25×10.00/1.5 | 14.00-25 | 254.00 | 635.00 | 38.10 | 574.60 | 173.30 | 82.70 | 546.00 | 27.00 | 125.00 | RB2510001505EM | SR1525EM | BS25EMS01 | LR25EM |
| 25×11.25/2.0 | 16.00-25 | 285.80 | 635.00 | 50.80 | 574.60 | 185.70 | 82.70 | 546.00 | 27.00 | 136.00 | RB2511252005EM | SR2025EM | BS25EMS01 | LR25EM |
| 25×13.00/2.5 | 18.00-25 | 330.20 | 635.00 | 63.50 | 574.60 | 211.40 | 82.70 | 546.00 | 27.00 | 166.00 | RB2513002505EM | SR2525EM | BS25EMS01 | LR25EM |
| 25×14.00/1.5 | 17.5-25 | 356.00 | 635.00 | 38.10 | 574.60 | 224.10 | 82.70 | 546.00 | 27.00 | 153.00 | RB2514001505EM | SR2155EM | BS25EMS01 | LR25EM |
| 25×15.00/3.0 | 21.00-25 | 381.00 | 635.00 | 76.20 | 574.60 | 236.50 | 82.70 | 546.00 | 27.00 | 188.00 | RB2515003005EM | SR3025EM | BS25EMS01 | LR25EM |
| 25×17.00/2.0 | 20.5-25 | 431.80 | 635.00 | 50.80 | 574.60 | 262.00 | 82.70 | 546.00 | 27.00 | 167.00 | RB2517002005EM | SR2025EM | BS25EMS01 | LR25EM |
| 25×19.50/2.5 | 23.5-25 | 495.30 | 635.00 | 63.50 | 574.60 | 293.00 | 82.70 | 546.00 | 27.00 | 195.00 | RB2519502505EM | SR2025EM | BS25EMS01 | LR25EM |
| 33×13.00/2.5 | 18.00-33 | 330.20 | 838.20 | 63.50 | 574.60 | 211.40 | 82.70 | 749.20 | 27.00 | 223.00 | RB3313002505EM | SR2533EM | BS33EMS01 | LR33EM |
| 25×22.00/3.0 | 26.5-25 | 558.80 | 635.00 | 76.20 | 574.60 | 328.60 | 82.70 | 546.00 | 27.00 | 223.00 | RB2522003005EM | SR3025 | BS25EML01 | LR25EM |
| 25×25.00/3.5 | 29.5-25 | 635.00 | 635.00 | 88.90 | 574.60 | 363.80 | 82.70 | 546.00 | 27.00 | 243.00 | RB2525003505EM | SR3525 | BS25EML01 | LR25EM |
| 25×24.00/3.0 | 30/65-25 | 610.00 | 635.00 | 76.20 | 574.60 | 352.70 | 82.70 | 546.00 | 27.00 | 234.00 | RB2524003005EM | SR3025 | BS25EML01 | LR25EM |
| 29×17.00/3.5 | 24.00-29 | 431.80 | 736.60 | 88.90 | 676.20 | 263.60 | 82.70 | 647.60 | 27.00 | 255.00 | RB2917003505EM | SR3529 | BS29EML01 | LR29EM |
| 29×22.00/3.0 | 26.50-29 | 558.80 | 736.60 | 76.20 | 676.20 | 327.10 | 82.70 | 647.60 | 27.00 | 273.00 | RB2922003005EM | SR3029 | BS29EML01 | LR29EM |
| 33×17.00/3.5 | 24.00-33 | 431.80 | 838.20 | 88.90 | 777.80 | 263.60 | 82.70 | 803.20 | 27.00 | 283.00 | RB3317003505EM | SR3533 | BS33EML01 | LR33EM |
| 33×28.00/3.5 | 35/65-33 | 711.20 | 838.20 | 88.90 | 777.80 | 403.30 | 82.70 | 803.20 | 27.00 | 347.00 | RB3328003505EM | SR3533 | BS33EML01 | LR33EM |
| 35×15.00/3.0 | 18.00-35 | 381.00 | 889.00 | 76.20 | 828.60 | 238.20 | 82.70 | 854.00 | 27.00 | 276.00 | RB3513003005EM | SR3035 | BS35EML01 | LR35EM |
| 35×17.00/3.5 | 21.00-35 | 431.80 | 889.00 | 88.90 | 828.60 | 263.60 | 82.70 | 854.00 | 27.00 | 309.00 | RB3517003505EM | SR3535 | BS35EML01 | LR35EM |
| 29×24.00/3.0 | 30/65-29 | 609.60 | 736.60 | 76.20 | 676.20 | 355.20 | 90.60 | 631.80 | 35.10 | 289.00 | RB2924003005EM | SR3029 | BS29EML01 | LR29EM |
| 29×24.00/3.5 | 26.5-29 | 609.60 | 736.60 | 88.90 | 676.20 | 355.20 | 90.60 | 631.80 | 35.10 | 204.00 | RB2924003505EM | SR3529 | BS29EML01 | LR29EM |
| 29×25.00/3.5 | 29.5-29 | 635.00 | 736.60 | 88.90 | 676.20 | 363.50 | 90.60 | 631.80 | 35.10 | 301.00 | RB2925003505EM | SR3529 | BS29EML01 | LR29EM |
| 33×22.00/4.0 | 27.00-33 | 558.80 | 838.20 | 101.60 | 777.20 | 334.70 | 90.60 | 768.00 | 35.10 | 301.00 | RB3322004005EV | SR4033 | BS33EV | LR33EV |
| 33×28.00/4.0 | 33.5-33 | 711.20 | 838.20 | 101.60 | 777.20 | 410.90 | 90.60 | 768.00 | 35.10 | 385.00 | RB3332004005EV | SR4033 | BS33EV | LR33EV |
| 35×15.00/3.0 | 21.00-35 | 381.00 | 889.00 | 76.20 | 828.00 | 245.80 | 90.60 | 818.80 | 35.10 | 292.00 | RB3515003005EV | SR3035 | BS35EV | LR35EV |
| 35×17.00/3.5 | 24.00-35 | 431.80 | 889.00 | 88.90 | 828.00 | 271.20 | 90.60 | 818.80 | 36.10 | 323.00 | RB3517003505EV | SR3535 | BS35EV | LR35EV |
| 35×27.00/3.5 | 33.25-35 | 685.60 | 889.00 | 88.90 | 828.00 | 398.10 | 90.60 | 818.80 | 36.10 | 528.00 | RB3527003505EV | SR3535 | BS35EV | LR35EV |
| 35×31.00/4.0 | 37.25-35 | 787.40 | 889.00 | 101.60 | 828.00 | 449.00 | 90.60 | 818.80 | 36.10 | 569.00 | RB3531004005EV | SR4035 | BS35EV | LR35EV |
| 39×28.00/4.0 | 33.5-39 | 711.20 | 990.60 | 101.60 | 929.60 | 410.90 | 90.60 | 920.40 | 36.10 | 493.00 | RB3928004005EV | SR4039 | BS39EV | LR39EV |
| 39×32.00/4.0 | 40/65-39 | 812.80 | 990.60 | 101.60 | 929.60 | 461.70 | 90.60 | 920.40 | 36.10 | 529.00 | RB3932004005EV | SR4039 | BS39EV | LR39EV |
| 39×32.00/4.5 | 41.25/70-39 | 812.80 | 990.60 | 114.30 | 929.60 | 461.70 | 90.60 | 920.40 | 36.10 | 562.00 | RB3932004505EV | SR4539 | BS39EV | LR39EV |
| 45×36.00/4.5 | 45/65-45 | 914.40 | 1143.00 | 114.30 | 1082.00 | 512.50 | 90.60 | 1019.80 | 36.10 | 739.00 | RB4536004505EV | SR4545 | BS45EV | LR45EV |
| 49×15.00/3.0 | 21-49 | 381.00 | 1244.60 | 76.20 | 1183.60 | 245.80 | 90.60 | 1174.40 | 36.10 | 457.00 | RB4915003005EV | SR3049 | BS49EV | LR49EV |
| 49×17.00/3.5 | 24-40 | 431.80 | 1244.60 | 88.90 | 1183.60 | 271.20 | 90.60 | 1174.40 | 36.10 | 489.00 | RB4917003505EV | SR3549 | BS49EV | LR49EV |
| 49×19.50/4.0 | 27.00-49 | 495.30 | 1244.60 | 101.60 | 1183.60 | 303.00 | 90.60 | 1174.40 | 36.10 | 537.00 | RB4919504005EV | SR4049 | BS49EV | LR49EV |
| 49×22.00/3.5 | 31/80-49 | 558.80 | 1244.60 | 114.30 | 1183.60 | 334.70 | 90.60 | 1174.40 | 36.10 | 553.00 | RB4922003505EV | SR4049 | BS49EV | LR49EV |
| 33×32.00/4.5 | 37.5-33 | 812.80 | 838.20 | 88.90 | 771.20 | 464.30 | 90.60 | 710.70 | 46.70 | 452.00 | RB3332004505EV | SR4533 | BS33EV | LR33EV |
| 51×22.00/4.5 | 30.00-51 | 558.80 | 1295.40 | 114.30 | 1212.60 | 379.50 | 149.00 | 710.70 | 48.00 | 895.00 | RB5122004505HD | SR4551 | BS51HD | LR51HD |
| 51×24.00/5.0 | 33.00-51 | 609.60 | 1295.40 | 127.00 | 1212.60 | 404.90 | 149.00 | 710.70 | 48.00 | 963.00 | RB5124005005HD | SR5051 | BS51HD | LR51HD |
| 51×26.00/5.0 | 36.00-51 | 660.40 | 1295.40 | 127.00 | 1212.60 | 430.30 | 149.00 | 710.70 | 48.00 | 975.00 | RB5126005005HD | SR5051 | BS51HD | LR51HD |
| 51×40.00/4.5 | 50/60-51 | 1016.00 | 1295.40 | 114.30 | 1212.60 | 608.00 | 149.00 | 710.70 | 48.00 | 1323.00 | RB5140004505HD | SR4551 | BS51HD | LR51HD |
| 57×27.00/6.0 | 37.00-57 | 685.80 | 1447.80 | 152.40 | 1365.00 | 443.00 | 149.00 | 761.60 | 48.00 | 1251.00 | RB5727006005HD | SR6057 | BS57HD | LR57HD |
| 57×29.00/6.0 | 40.00-57 | 736.60 | 1447.80 | 152.40 | 1365.00 | 470.00 | 149.00 | 761.60 | 48.00 | 1268.00 | RB5729006005HD | SR5057 | BS57HD | LR57HD |
| 57×32.00/5.0 | 44/80-57 | 812.80 | 1447.80 | 127.00 | 1365.00 | 507.00 | 149.00 | 863.20 | 48.00 | 1383.00 | RB5732005005HD | SR5057 | BS57HD | LR57HD |
| 57×32.00/6.0 | 46/90-57 | 812.80 | 1447.80 | 152.40 | 1365.00 | 512.00 | 149.00 | 863.20 | 48.00 | 1401.00 | RB5732006005HD | SR6057 | BS57HD | LR57HD |
| 57×32.00/6.5 | 48/95-57 | 812.80 | 1447.80 | 165.10 | 1365.00 | 512.00 | 149.00 | 863.20 | 48.00 | 1422.00 | RB5732006505HD | SR6557 | BS57HD | LR57HD |
| 57×34.00/6.0 | 50/90-57 | 863.60 | 1447.80 | 152.40 | 1365.00 | 534.40 | 149.00 | 1015.60 | 48.00 | 1635.00 | RB5734006005HD | SR6057 | BS57HD | LR57HD |
| 57×36.00/6.0 | 50/80-57 | 914.40 | 1447.80 | 152.50 | 1365.00 | 584.20 | 149.00 | 1117.20 | 48.00 | 1538.00 | RB5736006005HD | SR6057 | BS57HD | LR57HD |
| 57×44.00/5.0 | 55/80-57 | 1117.60 | 1447.80 | 127.00 | 1365.00 | 685.80 | 149.00 | 1117.20 | 48.00 | 1837.00 | RB5744005005HD | SR5057 | BS57HD | LR57HD |
| 57×44.00/6.0 | 55.5/80-57 | 1117.60 | 1447.80 | 152.40 | 1365.00 | 685.80 | 149.00 | 1117.20 | 48.00 | 1913.00 | RB5744006005HD | SR6057 | BS57HD | LR57HD |
| 57×47.00/5.0 | 60/85-57 | 1193.80 | 1447.80 | 127.00 | 1365.00 | 701.00 | 149.00 | 1117.20 | 48.00 | 1851.00 | RB5747005005HD | SR5057 | BS57HD | LR57HD |
| 57×47.00/6.0 | 58/85-57 | 1193.80 | 1447.80 | 152.40 | 1365.00 | 701.00 | 149.00 | 1117.20 | 48.00 | 1866.00 | RB5747006005HD | SR6057 | BS57HD | LR57HD |
Packaging & Shipping
Packaging Details: As per buyer's requirement
Delivery Details: Within 20 days after receiving the deposit
Our Services
1) Wide range of products
2) Top quality
3) Fast delivery
4) Competitive price
5) Super warranty and service
Company Information
We Shandong Prestone Tyre is developing into an integrated group that combines tyres and rims designing, manufacturing and marketing. "PRESTONE" are our own brand, including PCR, TBR, OTR and Agricultural tyres and rims etc.
Top quality always comes first for our company. We are building the high-end brand tyres and rims, working to enter the ranks of the technical level. Our tyres and rims have passed all kinds of international certificates, including ISO9001, ISO14001, ISO/TS16949, ISO9000, DOT, ECE, REACH, LABEL, BIS, SABS, INMETRO, SONCAP, SNI, NOM, GCC, CCC etc.
Our tyres and rims have won an excellent reputation not only in the domestic market, but also in more than 80 countries worldwide, North America, South America, Asia, Africa and Australia. Prestone Tyre is committed to developing in the field of anto parts to be the best.
Why choose our Prestone
- best tyre and rim manufacturers in China
- Chinese military supplier, products experience a complexity of the environment with a variety of tests
- From the pure technology, high-speed safety is super good
- OEM on many of the automobiles in china
- competitive prices and fast delivery
- powerful tire manufacturer and famous brand
- wide range of sizes
Sincerely hope we will have a chance to cooperate with your esteemed company in near future !
The best supplier in here for you !!!
Contact Details:
Shandong Prestone Tyre Co., Ltd
Albert Zhang
Tel: +86-532-86993848 Fax: +86-532-86993848
Mobile: +86-13863937900
Http://www.prestonetyre.com
Your early enquiry will be highly appreciated.
Shandong Prestone Tyre Co., Limited, founded in 1990, is a new enterprise group mainly in producing TBR tyres, PCR tyres, Agricultral tyres and OTR tyres, integrating the development, production and sales.
The leading export products are PRESTONE radial tyres. The company possesses the first-class management and technical talents, sets up the perfect quality control and sales service systems, and also has the advanced manufacturing and testing equipments at domestic and international levels. The key equipment was imported from France, the United Sates and Germany.
The PRESTONE and XIANGTONG brand radial tires have been up to the world leading level. The products are sold well at home and abroad, which are praised as "economical and practical famous brand product.
In 2006, the group newly set up the project of annual production of 1, 200, 000 sets of heavy-duty TBR tires, 10 million sets of PCR tires on the basis of annual output of 1.5 million sets of heavy-duty TBR tires. Ourproducts are sold to America, Eurpe, Middle East, Southeast Asia, Africa and other places, being well received by customers. Depending on the perfect product quality, we passed the certification of ISO9001 Quality System, national CCC, the United States Department of Transportation(DOT), European Union ECE, and Branzilian INMETRO.
Any of the sizes we produce do you need, pls feel free to contact us. We would like to supply our tyres at a competitive price, good quality and perfect service to cooperate sincerely with you.
