iKeycutter CONDOR XC-MINI Master Series Automatic Key Cutting Machine
7'' Capacitive Touch Screen

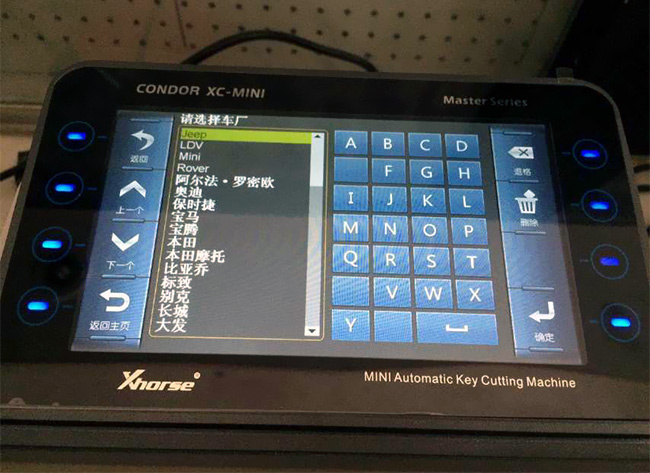

With Built-in Database, can easily find key information
Software supports online-update
It is most powerful and competitive auto key cutting machine
iKeycutter CONDOR XC-MINI Master Series Automatic Key Cutting Machine

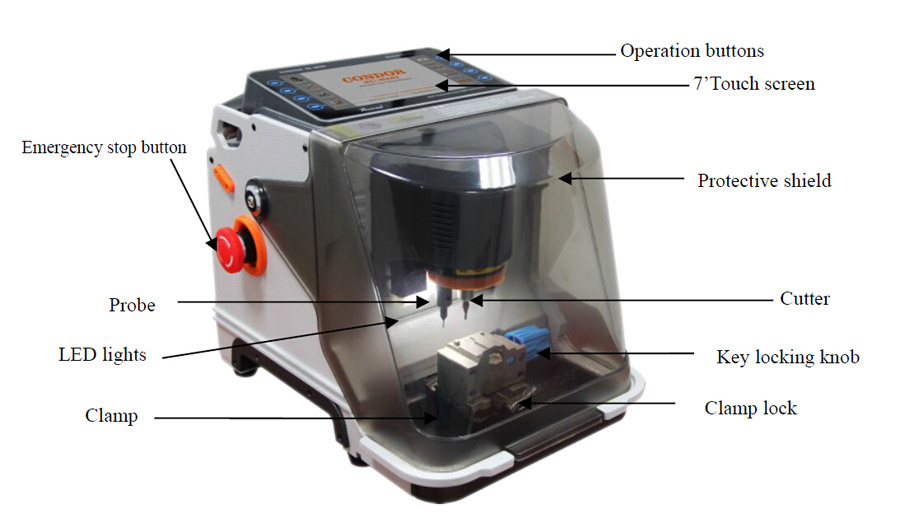

Condor XC-MINI Profile
iKeycutter CONDOR XC-MINI Highlight Characteristics:
1. Built-in Database
2. Support Multi-languages: Portuguese/Spanish/French/Germany/Russian/Czech/Arabic/Turkish/Dutch/Polish/Bulgarian/Norway/Slovakia/Italian/English/Chinese
(Turkish language will be released in the future)
3. Update Online Lifetime
4. 3-Axis Precision Ball Screw Transmission
5. Cross Rail
6. All Aluminum Machine Body

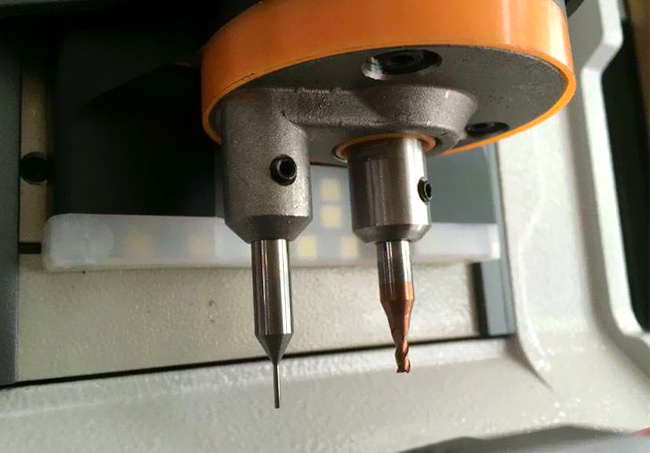

7. Single machine with both Tracer/Cutter
8. Standardly include three clamps M1/M2/M3
9. Support Sided/Track/Dimple/Tibbe keys
10. Some Dimple/Tibbe keys need optional clamps
iKeycutter CONDOR XC-MINI Master Update Steps:
1. Connect iKeycutter CONDOR XC-MINI Master to the PC with a USB cable.
2. Turn on the iKeycutter CONDOR XC-MINI Master.
3. Click "Update online" button to start update.
4. The screen will appear "Updating" prompt.
5. Wait for the update completed.
Notice:
1: Do NOT turn off PC or unplug USB cable duing updating.
2: Data downloading and firmware upgrading may take a while, please be patient.
3: If the update fails, turn off anti-virus software and then try again.

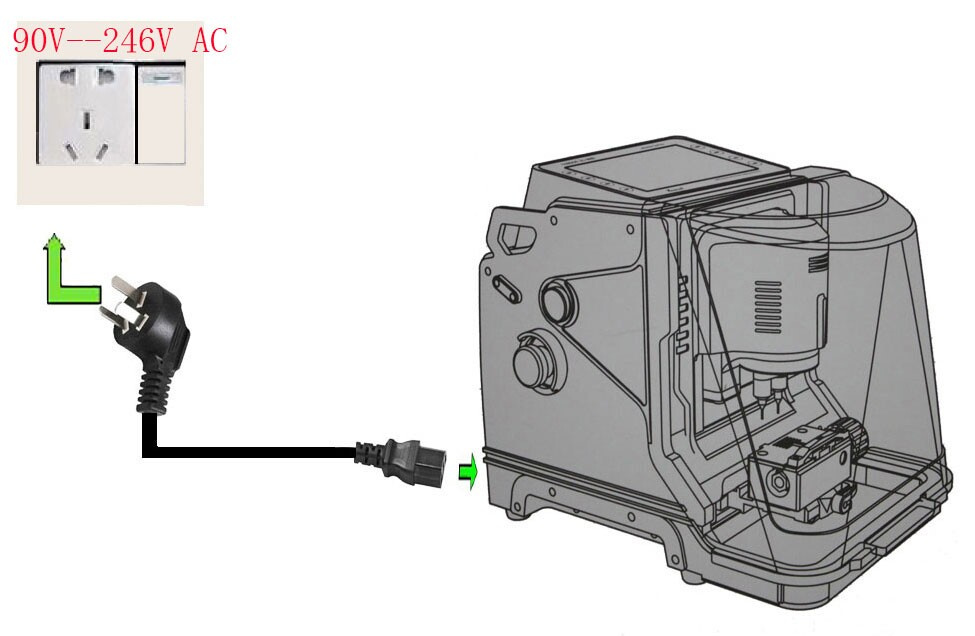

Guidence pic to show you how to connect the Condor XC-MINI in office

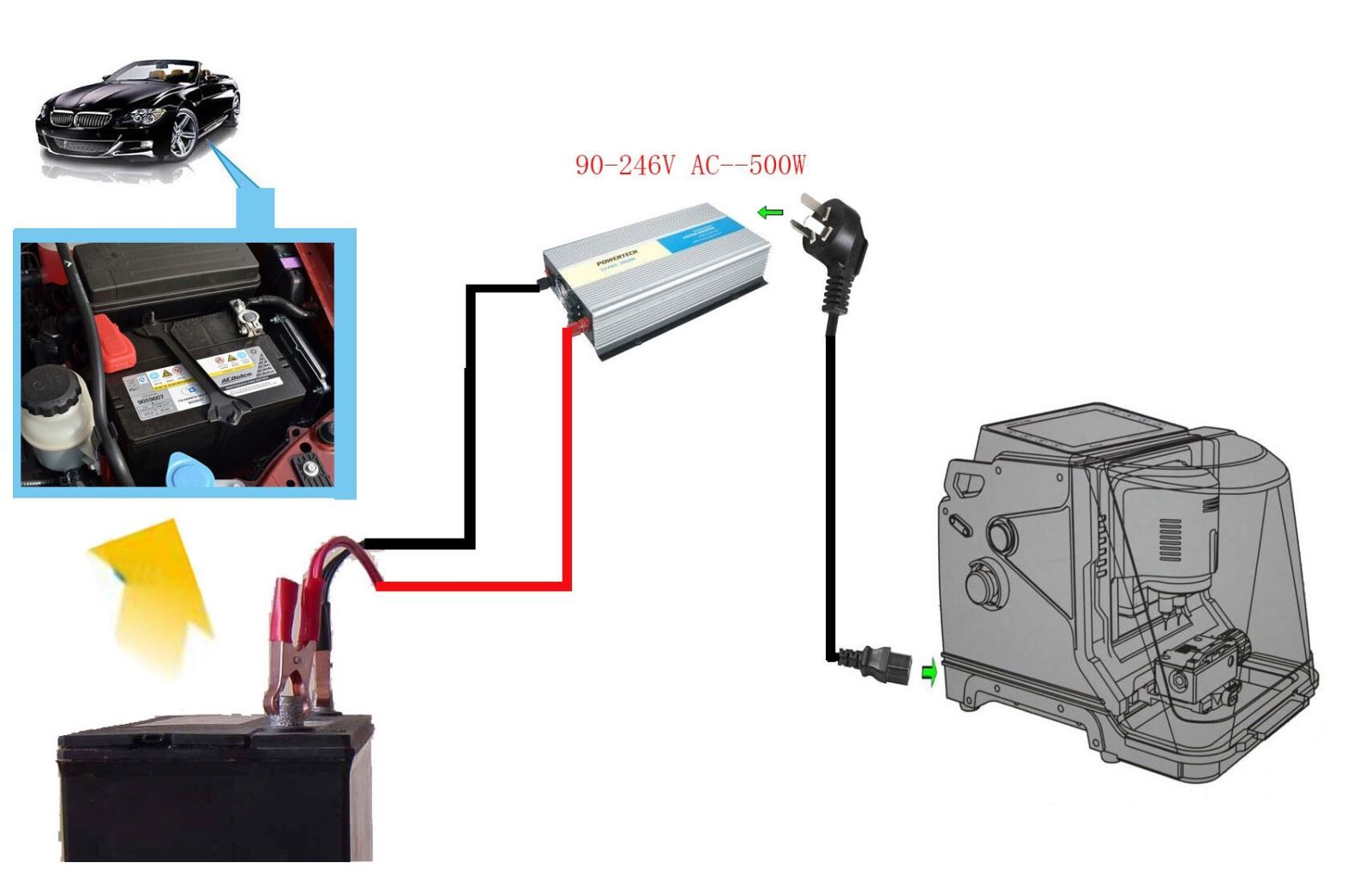

Guidence pic to show you how to connect the Condor XC-MINI with car ( this package do not contains inverter, you have to buy it separately, and the power of the inverter must above 300W)
Condor XC-MINI Specification:
Input voltage: 90V-264VAC
Input frequency: 47-63Hz
Consume: 200W
Package Dimensions: L450xW450xH350mm
Machine Dimensions: L265xW362xH301mm
Display: 1024x600
Spindle Speeds: 900rpm
USB: USB2.0
Working Temperature: 0-50ºC
Humidity: 10-90%
Net Weight: 18Kg
Gross Weight: 22.9Kg
Package List:1pc x 2.5mm Cutter1pc x 1.5mm Cutter1pc x 1.0mm Probe1pc x 2mm Allen wrench1pc x Power cord(1.5m)(optional)(USA/European/British/Chinese Standard)1pc x USB Cable(2.0m)1pc x Brush1pc x M1 Clamp for Single/Double sided keys1pc x M2 Clamp for Channel-track keys (Contained Functions of both M2)1pc x Condor xc-mini key machine body1pc x Quality certificate1pc x Product packaging checklist1pc x User's Manual
