Original Tango Car Key Programmer with Basic Software Tango Programmer

Philips transponders:
PCF7930-31 writing, reading
PCF7935 writing, reading, shadow memory, crypto calculator
PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings
PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7943 transponder, remote, Manchester & Biphase encodings
PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7946 transponder, remote, Manchester & Biphase encodings
PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings
PCF7961 transponder, remote, Manchester & Biphase encodings
*Auto switching between PCF7936-PCF7961 windows if invalid type detected.
*Autodetect manchester / biphase
Temic transponders:
Temic 11 reading, writing to T5
Temic 12 reading, writing to T5
Megamos transponders:
Megamos (13) reading, writing to T5, emulating on PCF7930-35
Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation
Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey
Texas transponders:
Tiris (4C) reading
Tiris (4D) DST crypto reading, writing, crypto calculator
Tiris (4E) DST crypto reading, writing, crypto calculator
Tiris (8C) reading
1. Open an immobilizer dump file.
2. Choose number of the key you want create.
3. Place a transponder into the coil and click the WRITE button.
4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.
1. Original transponder---Informs you about type of the original transponder
2. Allowed transponder---Informs you what type of transponders is suitable for the key maker
3. Data location---The immobilizer memory may be stored in various chips, the description informs you about from where you have to read a dump. Some immobilizers can have various chipsets. In this case the field displays several possible chips. Find one of them inside of the immobilizer and read it.
4. Data size---Each chip has certain memory size, the key maker accepts files with the described size.
5. Data format---This field appears in case of 93CXX eeprom seria.
There are two standards of data layout:
Intel format and Motorola format or Little Endian and Big Endian respectively.
The data layout depends on a chip-programmer that is used for eeprom reading. This field informs you what kind of format is suitable for the key maker. Usually you can see that both formats aresuitable. It means that the program can understand any data layout.
Create a key step by step
Firstly, run the key maker interface according to the vehicle and read information in the "Info" window. Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).
Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.
The program will analyse the dump.
If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.
Take a look at the "Info" window, the Allowed transponder field.
Ensure you use a transponder exactly the indicated type.
Place the transponder into the coil.
Choose the key position you want create in the "Keys" window.
Click the "WRITE" button.
This starts the writing process and transponder will be stored with the appropriate data.
At this point you may be asked to save a new immobilizer dump.
The program displays a standard File Save dialog where you have to save the data.
After this you will be informed about the new data saved and must be written into the immobiliser.

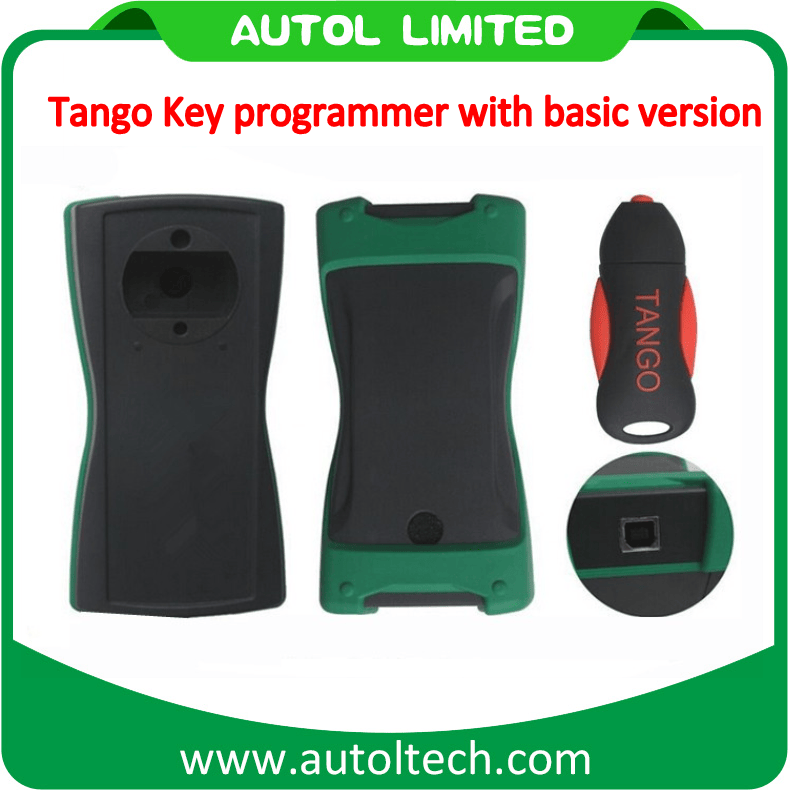

Introduction for Tango Key Programmer with Basic Software:

Tango programmer is a new generation of transponder programmer which is developed to cover, read, write and generate the latest transponders used in the latest vehicle immobilizer technologies. New function for reading the Kilometers, VIN and transponder type for all BMW keys was added to the BMW software module! Immo pin code is also displayede for some car models. With this programmer you can generate images for many different original transponders like Philips ID33, Philips Crypto for different ID's and Texas crypto!

Descriptions for Tango Key Programmer with Basic Software:

TANGO KEY PROGRAMMER WITH BASIC SOFTWARE Tango programmer is a new generation of transponder programmer which is developed to cover, read, write and generate the latest transponders used in the latest vehicle immobilizer technologies. New function for reading the Kilometers, VIN and transponder type for all BMW keys was added to the BMW software module! Immo pin code is also displayede for some car models. With this programmer you can generate images for many different original transponders like Philips ID33, Philips Crypto for different ID's and Texas crypto! !!!!!! VERY IMPORTANT !!!!!! After generating a new transponder with TANGO Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system! List of supported transponders: Philips transponders: PCF7930-31 writing, reading PCF7935 writing, reading, shadow memory, crypto calculator PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings PCF7943 transponder, remote, Manchester & Biphase encodings PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings PCF7946 transponder, remote, Manchester & Biphase encodings PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings PCF7961 transponder, remote, Manchester & Biphase encodings *Auto switching between PCF7936 ?PCF7961 windows if invalid type detected. *Autodetect manchester / biphase Temic transponders: Temic 11 reading , writing to T5 Temic 12 reading , writing to T5 Megamos transponders: Megamos (13) reading , writing to T5 , emulating on PCF7930-35 Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey Texas transponders: Tiris (4C) reading Tiris (4D) DST crypto reading, writing, crypto calculator Tiris (4E) DST crypto reading, writing, crypto calculator Tiris (8C) reading Atmel: TK5551M (T5 replacement) SAAB reading , writing to T5 The product is in working out stages, therefore the list of the supported transponders will be developed later. Key maker usage. Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model. 1, Open an immobilizer dump file. 2, Choose number of the key you want create. 3, Place a transponder into the coil and click the WRITE button. 4, In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.
