| Prod Model: |
601010008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Ds708 |
| Other Name: |
Autel Ds708 |
| Connection: |
with WiFi |
| Software: |
Update Online |
| Feature: |
Print out Recorded Data Any Time |
| Support Car: |
Most of Cars |
| Weight: |
10kg |
| Performance: |
State-of-Art Diagnostic System |
| Function: |
Deep Vehicle System Coverage for All Electronic Sy |
| Keywords: |
Maxidas Ds708 |
| Diagnostic Tool Type: |
Car Computer Diagnostic Equipment |
Product Description

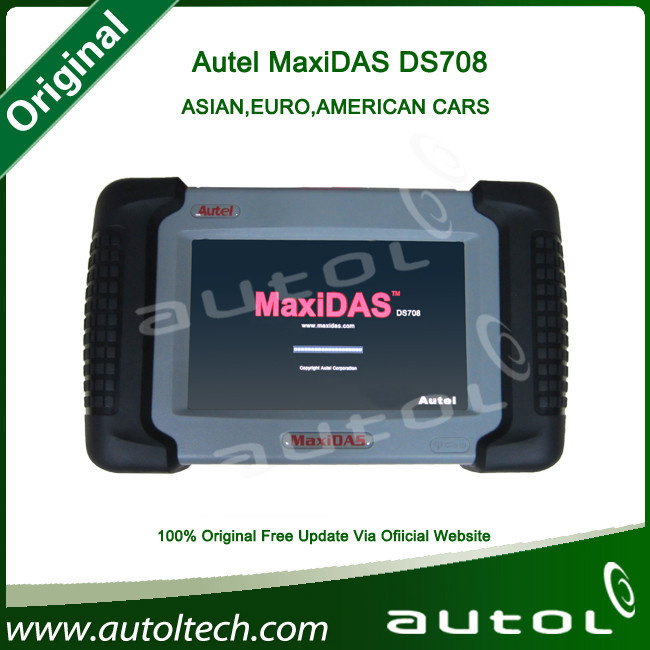

MaxiDAS DS708
Delicately developed by the most distinguished experts of this industry, the MaxiDAS DS708 is a state-of-art diagnostic system that delivers more accurate, more stable, more comprehensive, easier and faster diagnosis. The new generation platform stands out in a variety of tools by providing incredibly high performance with intuitive operation. For the first time, workshops.
And technicians could find an OE-level diagnostic solution designed for the aftermarket. The DS708 is the key to gain customer confidence and boost your bottom-line.
Can you affordto be left behind?
More Informaiton
Product Features & Functions
1. Extensive vehicle coverage for more than 30 domestic, Asian and European vehicle makes
2. Deep vehicle system coverage for ALL electronic systems
3. Complete function capability including live data.
4. Unparalleled OBDII functionalities supports ALL 5 OBDII protocols and ALL 9 test modes
5. Automatic Wi-Fi updates available in new software releases
6. Innovative dual-processor technology for quicker diagnostics and boot-up
7. The genuine Windows CE operating system allows for more stable performances, better compatibility and expandability
8. Internet explorer brings internet resource of your choice at your fingertips
9. WIFI internet capability allows for wireless access throughout the workshop
10. Extremely easy-to-us with touch-screen operation and intuitive operation
11. Unique shop tough ergonomic design features multi-layered rubber protection and strong housing
12. Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles
13. Captures, saves and prints screenshots for convenient troubleshooting
14. Displays live data in text, graph and analog for easy data review and analysis
15. Records and playbacks live data to pinpoint troubles of sensors and components
16. Innovative graph merging for easy and quick detection of intermittent problems
17. Automatic WIFI Data Logging for quick and accurate technical support and troubleshooting
18. Built-in overvoltage protection keeps the instrument and vehicle from unwanted damages
29. Creative remote diagnosis for convenient demonstrationand training
20. Powered by Autel Uni-SCANTM technology with no need for extra adaptors or "keys"
21. Prints out recorded data any time and anywhere with Wi-Fi printing capability
Autel DS708 Specifications:
| Autel DS708 Specifications: |
| Operating System | Windows CE |
| CPU | ARM9+ARM7 dual processor |
| Memory | Max. 4 Gigabyte SD card |
| Communication Interface | OBD,USB Ethernet |
| Input Voltage | 8.0-32.0V power provided via vehicle battery |
| Power Consumption | 8W |
| Operating Current | 500mA |
| Display | Backlit, 7" TFT (800*480 dpi) color display with touchscreen |
| Operating Temperature | 0 to 60ºC |
| StorageTemperature | -10 to 70ºC |
| Operation | Touchscreen and one rubber key (ON/OFF) |
| Printer Interface | Wi-Fi, USB, Ethernet |
| Housing | Strong plastic housing with protective rubber boot |
| Protocols | ISO 9141-2, K/L lins, flashing code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898 ISO15765-4, High-speed, Middle-speed, Low-speed and Single-wire CAN |
