We design and manufacture the spray gun oil and water separator, for supply the oiled-free and clean compressed air for spray guns. It can be installed in spray booths (or be called paint booths) and baking ovens.
For avoiding any trouble during spraying paint for vehicles or other stuffs, we have to make sure the compressed air in the whole working system has been filtered and de-oiled.

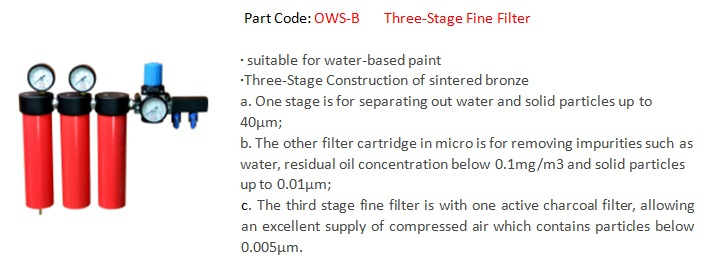

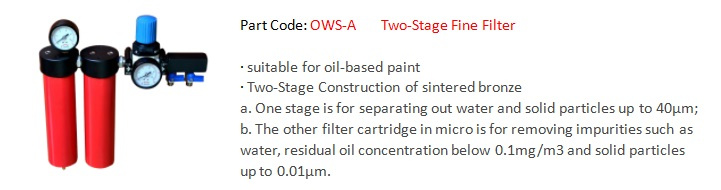

We have 2 kinds of spray gun oil and water separator for different based paint. One is two-stage fine filter( part code: OWS-A) and another is three-stage fine filter(part code:OWS-B).
TECHNICAL INFORMATION
Parameters of Spray Gun Oil and Water Separator
· The Air Flow: 2800l/min (98.6cfm)
· Air inlet: 1/2 inch
· Two outlet valves: 1/4 inch
· Max working pressure: 14 bar (210psi)
· Max working temperature: 120°C (67°F)
FEATURES
· The automatic condensate discharge valves prevents condensate from penetrating into the compressed air circuit.
· The frame is made with top quality materials and ensures perfect operation even under the circumstances where have mists, solvents.
· Easily fixed to walls using the special brackets.
· Pressure can be read before filtration at the pressure gauge mounted on the first and second stage of filters.
· The pressure regulator with gauge allows easy pressure adjustment for spray gun compressed air.
These Spray Gun Oil and Water Separators are highly effective for running a service site for car body shops.
The car body shops owners can contact ANONA for further details and information. For any queries kindly contact us at:
- Phone :0086-20-87460378 and 0086-13005123276
- Website: www.anonaauto.com

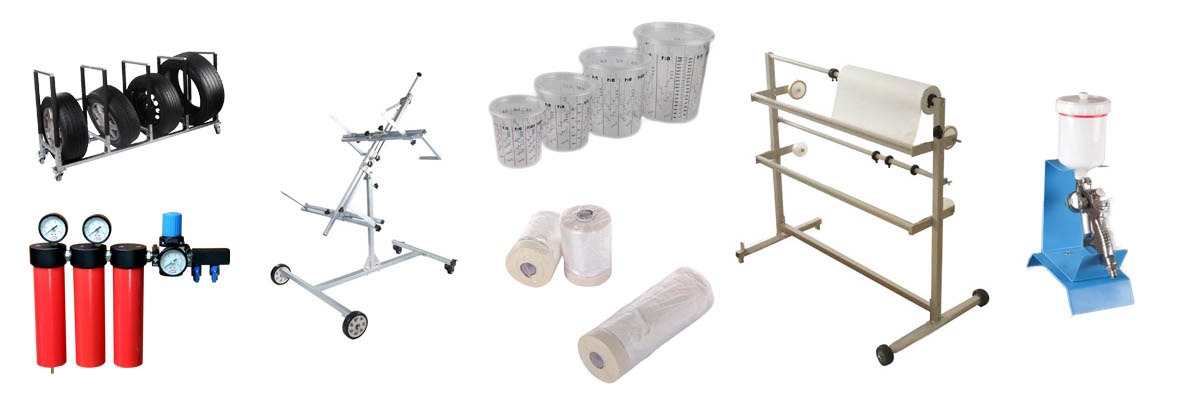

ANONA AUTO REPAIR EQUIPMENTS include "Moveable Dust-Free Dry Sanding Set", "Shortwave Infrared Curing Lamp", "Tyre Changer", "Wheel Balancer", "Air Compressor" and so on.
ANONA CAR REPAIR TOOLS include "Air Hose Reel", "Electric Polisher", "Paint Booth Filter", "Paint Stands", "Masking Paper, Film & Tape" and so on. For more details, please refer to our "Product Page-Auto Repair Equipments" & "Product Page-Car Repair Tools" .
