hot sale steel drum/oil drum manufacturing line high quality welding machine

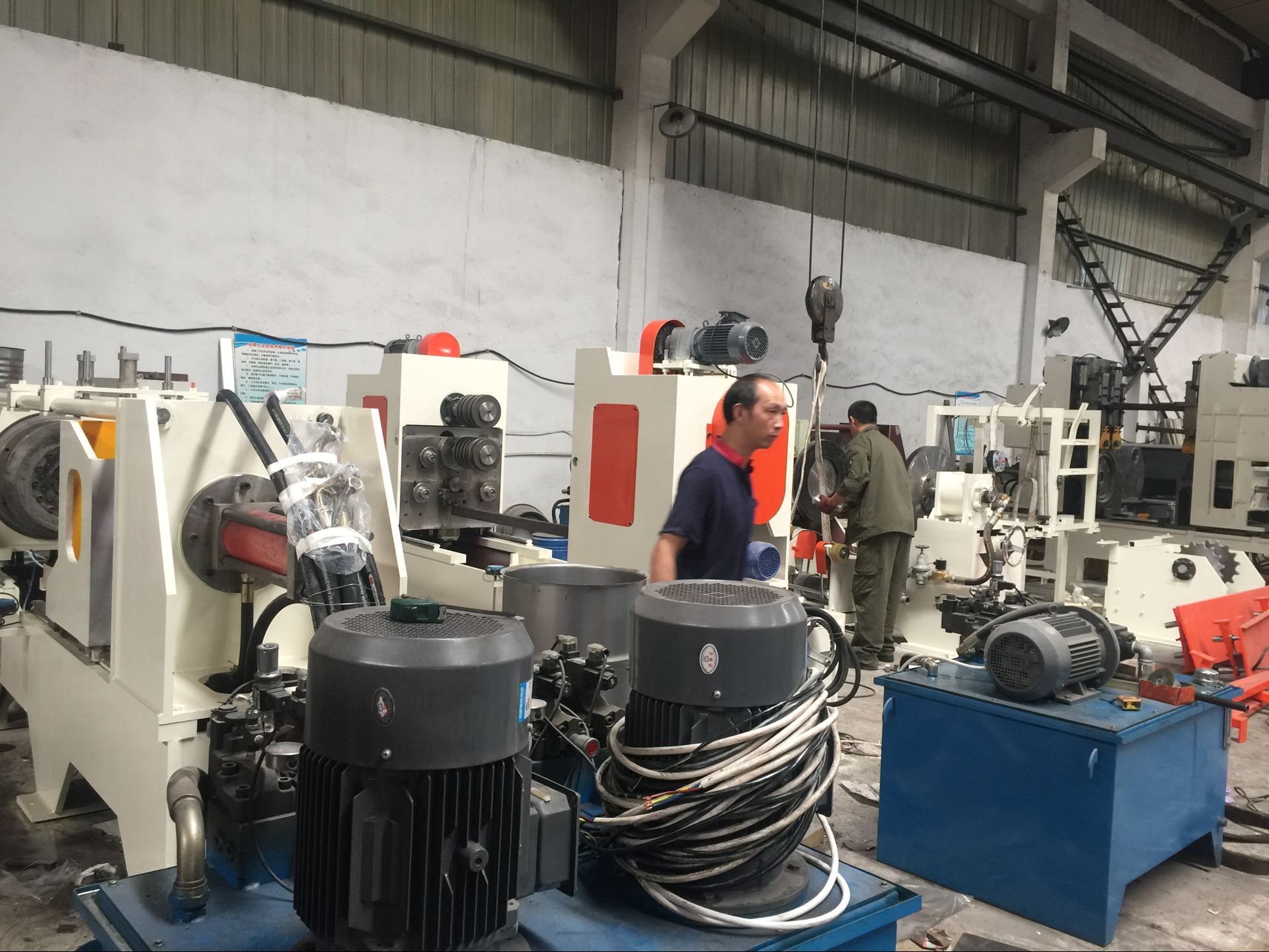

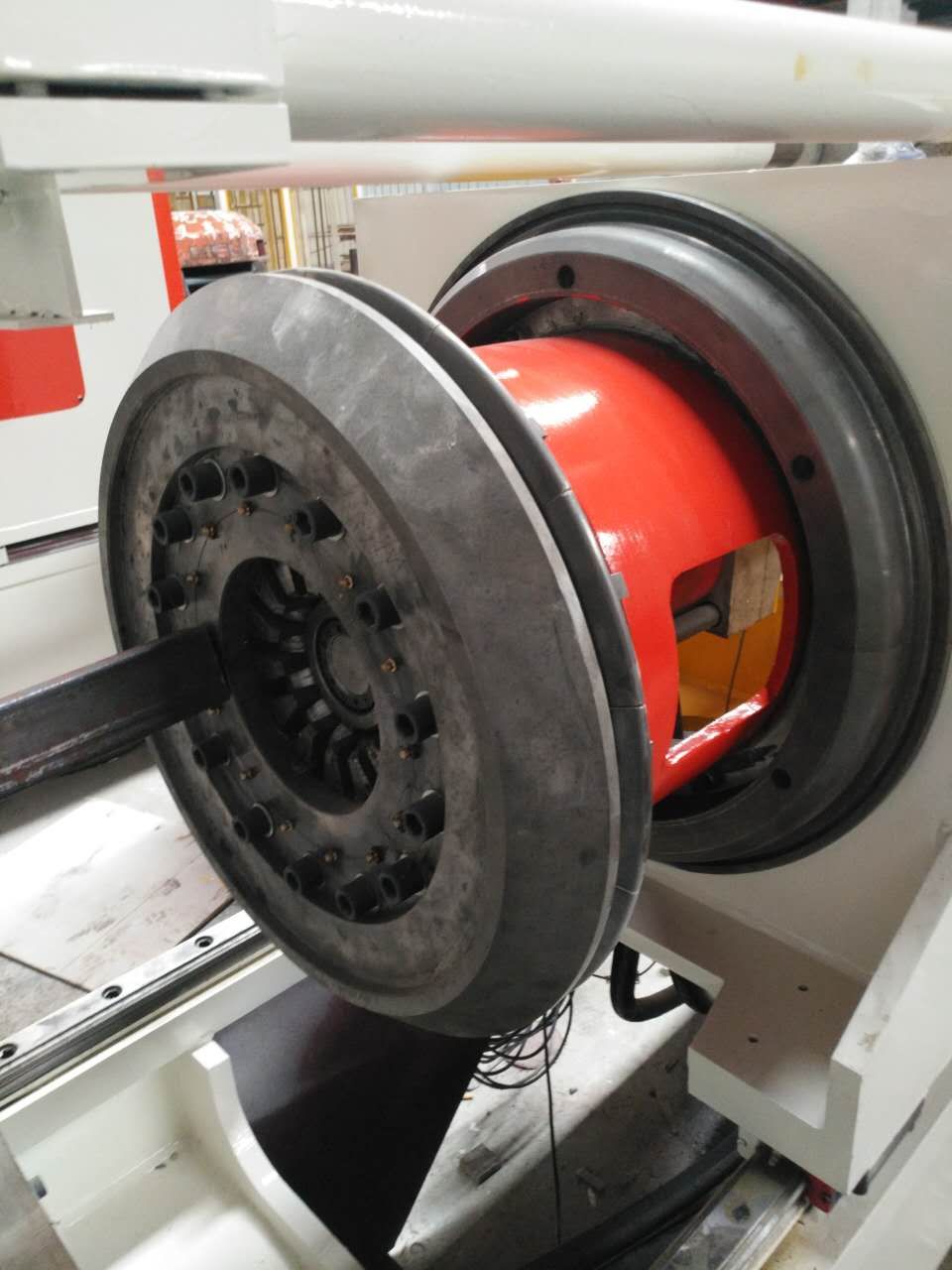

Detail pictures of steel drum manufacturing machines:
Product information
This machine can weld the oil drum automatically without spot welding.It can welds the drum high speed and high efficiency. fully satisfy a wide range of the industrial applications are equipped with microprocessor control, safety concomitant side buttons, electric pedal and solenoid valve, upon request they can be fitted with special controls to suit any special configurations.
- Lower round arm with adjustable height and lateral adjustment.
- Electrodeholders with electrodes for spot welding and possibility of easily fitting barholders for projection welding.
- Inferior arm holder can be rotated for use with larger arm gap.
| Description | Unit | Data |
| Rated capacity | KVA | 100 |
| Rated voltage | V | 380 |
| Rated current | A | 263 |
| Frequency | HZ | 50 |
| Continuous capacity | KVA | 45 |
| Continuous current | A | 118 |
| Duty cycle | % | 20 |
| Secondary floating voltage | V | 3.65~7.3 |
| Secondary voltage regulation | | 8 |
| Second voltage rating | | 7 |
| Rated Max.welding thickness of weldment | mm | 3+3 |
| Rated welding thickness of weldment | mm | 2+2 |
| Extension elongation of electrode arm | mm | 1150 |
| Adjustable top electrode strode | mm | 20 |
| Maximum working pressure | N | 11500 |
| Air pressure | MPa | 0.5 |
| Cooling water consumption | L/h | 700 |
| Weight of welder | kg | 850 |
| External dimension(length*width*height) | mm | 1610*730*1460 |
| Installation dimension (length*width*diameter) | mm | 1205*500*18 |
Company information
Our company is located in Wuxi National Hi-Tech Development Zone where there are more than 300 international famous companies.
Our company was established in the year of 1994, covering area more than 10000m2 and building area more than 8900m2. There are more than 100 employees working in our factory, among them, there are 10 engineers for design machineries.
We are very strong in Arc welding/Resistance welding, DN series spot welding, FN longitudinal seam welding, HN series circumferential seam welding, multi point spot welding, TN series protruded welding machine, UN series butt welding, etc..Max. power is 3000KVA.Our welding equipment are very popular for following industry:
1.Steel drum, 100L-225L,i .e.53galon, 55galon,etc..
2.Car/truck/motorcycle fuel tank including diesel, petro
3. Heat Exchanger
4. Radiator of transformer
FAQ for steel drum welding machine
1. Why choose us as your supplier?
We are most professional in steel drum welding equipment with more than 30
years of experience
2. What can you supply for steel drum manufacturing?
A. Full automatic longitudinal seam welding machine
B. Semi-automatic seam welding machine
C. Spot welding + seam welding machine
3. What sizes you machine can weld?
Standard international size:100L-225L
We need to know the following information to quote you correct machineries:
1.What power supply in your country?
Voltage and power
2. Size and Diameter of the Steel Drum
Size:100L-225L
3. Thickness and length of the Drum
For instance: 0.6--1.2mm
4.Material of the drum
Carbon steel or stainless steel
5.Technical drawing of the drum
Longterm Machinery Technologies are leading supplier of complete turnkey solutions for the LPG cylinder production facilities to manufacture all sizes/types of LPG gas cylinders. The whole process from blanking and body forming line, full automatic welding line, heat treatment, full automatic hydrostatic testing line, powder coating and finishing line.
Especially we have the best and automatic welding line from automatic trimming, joggling, valve bung welding, handle and bottom welding to automatic MIG body welding, the whole line involves only 7 workers, but output is 2000PCS per 8hrs.
We have been focused on cylinder welding technology since 30 years ago. During last 30 years, we keep improving our technologies on welding(TIG, MAG, MIG, SAW)and make a lot of improvement from SAW welding to MIG welding on LPG gas cylinder. Our equipment are widely used Aerospace, Petrochemical, Pressure Vessels, etc...We generated big profit by saving cost and improving welding quality on welding for our customers from all over the world, America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc...
I. Production Line of LPG Gas Cylinder
Including circumferential seam welding machine
Longtitudinal seam welding machine
Hydraulic leakage test
Automatic trimming machine
Valve seat welding machine
Foot ring welding machine
Protection enclosure welding machine
End dish shaping machine
Annealing furnace
Shot blasting machine
Sandblast machine
2. Production line for Solar Water Tank
Including pressurized and non-pressurized solar water tank manufacturing line
The main equipment are as follows:
Circumferential seam welding machine
Longitudinal seam welding machine
Pipe fitting welding machine
Hole punching machine
Grooving machine
3. Production line for Steel Drum Manufacturing Line
Sheet rolling machine
Spot welding machine
Longitudinal seam welding machine
Grooving machine
Leakage testing machine
Flanging machine
Sealing machine
4. CNG Tank & Fire Extinguishier Spinning machine
