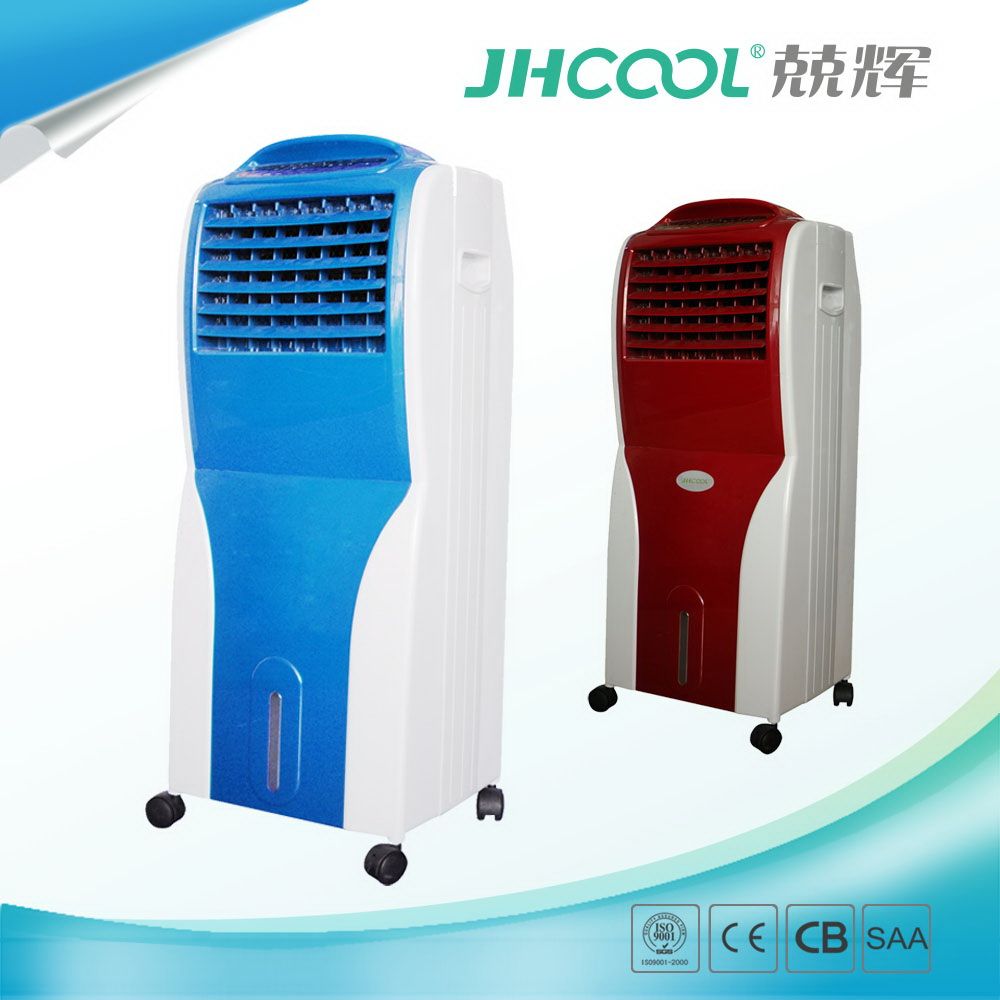

Office Use Cooling Fan (JH162)

1600m3/h Plastic axial fan evaporative air cooler with 5090 cooling pad


1. The main functions of evaporative air cooler

Energy saving
Low cost of working, evaporative air cooler only cost 1/6 -1/10 power of air conditioner!
Environment protection
No compressor and no freon!
Obvious effect of lowering temperature
Lower temperature 4-12 centigrade by water evaporation!
Removing dust and ventilation
Evaporative air cooler increase the air oxygen content, filter the dust and air smell!

2. The main features of evaporative air cooler
4 in 1: Air cooler, Fan, Purifier and Humidifier
Honeycomb wed pad for optimum performance
Adjustable air level to your comfort
Simple operation and good appearance
Intelligent trouble shooting
Over current and overvoltage protection
Mounted with castors for easy mobility
3. Factory View- evaporative air cooler
Production line of our 18000m3/h

3. Features of JHCOOL Portable evaporative air cooler!
Higher cooling effeciency, more cooling! ! !
Super attractive price. Most economical cooling device.
Super energy-saving. Only cost 1/10 than air conditioning.
100% green cooling by natural water evaporation
Not only high efficient cooling, but also fresh ventilation
High efficient cooling pad, filter dust and freshen the air.
Automatically clean function
Unique open style water distribution system, never jam
Nice designed luxury appearance
High quality single phase and three speed motor.
Professional stand type water pump for air cooler
Balanced fan, quiet and smooth airflow.

4. FAQS- evaporative air cooler
(1) How does an Evaporative Air Cooler work?

Evaporative Air Cooler cools the air by means of the evaporation of water. When water evaporates into the air, the result is a mixture of air and water molecules. This chemical change requires heat, thus energy or latent heat is taken from the air molecules - dropping the actual temperature of the air.

(2)Whether the Air Cooler can be used in enclosed spaces or not?

It must be kept level and there must be water in the tank. The room should have doors and windows opened to allow free air flow. Best scenario is for the Air Cooler to be placed near an open window from which the fresh air flows through the Air Cooler, which circulates the air, which then leaves via the door.

(3)What are the differences between air coolers and air conditions?

The Evaporative Air Cooler is not an air conditioner as it does not use a compressor or refrigerant gas. It should not be expected to cool to the same degree as a refrigerated air conditioner. It works best in hot and dry conditions.

Electric	Power	100w
	Speed	3
Fan	Single unit cover area	10-20 m2
	Airflow (M3/H)	1600
	Fan type	Centrifugal
	Pressure	30Pa
	Noise	<48db
Cabinet	Cabinet	plastic
	Discharge type	side
	Dimension (mm)	300*360*870
	Packed size(assembled)mm	360*410*915
	Loading quantity (assembled) in 40HQ	524pcs
	Water Tank	10L
	Water Consumption	1-3L/H
	Net weight	9.5
	Gross weight	11.4
Control	Control type	LED
	Remote	yes
