Specification

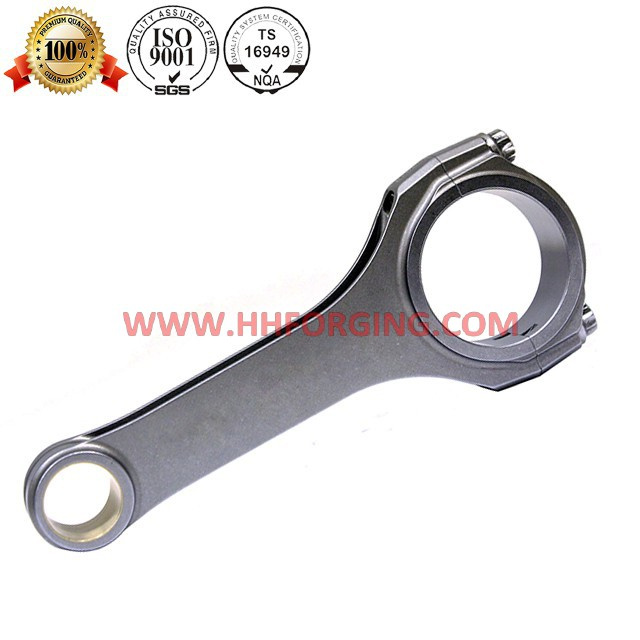

Item Name: Racing Connecting Rod (forged steel con rod)
Application for: Porsche, Audi, Chevy, Volvo, Opel, BMW, Mercedes Benz, VW, Toyota, Nissan, Honda, Mitsubishi, Suzuki, Ford, Peugeot, Volvo etc.
Material: Forged steel/40Cr/20Cr/aluminum
Production capacity: 10,000 Set/month
Warranty: 2 years
Delivery Day: about 30 days
Beam Style: I beam/H beam
Peugeot Con Rod |
| No. | Car model | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
| 93a | Peugeot | RDSX-1 (137.75) | 4 | 137.75 | 48.66 | 18 | 23.8 | 20 | 5/16" |
| 93b | RDSX-1 | 4 | 139 | 48.66 | 18 | 23.8 | 20 | 5/16" |
| 93d | RDSX-1-A | 4 | 137.75 | 48.66 | 18 | 23.8 | 20 | 3/8" |
| 93d |
| 4 | 137.75 | 48.7 | 18.02 | 23.9 | 20 | 3/8" |
| 93e | RDSX-1-A | 4 | 139 | 48.66 | 18 | 23.95 | 20 | 3/8" |
| 93f | JT139-21 | 4 | 139 | 48.656 | 21.015 | 23.8 | 20 | 3/8" |
| 93j | 145 | 4 | 145 | 48.66 | 18 | 23.8 | 20 | 3/8" |
| 94 | RDSX-S | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 5/16" |
| 94b | RDSX-S | 4 | 133.6 | 48.66 | 19.46 | 23.8 | 24 | 3/8" |
| 94C | RDSC-S | 4 | 133.6 | 48.66 | 20 | 23.8 | 24 | 3/8" |
| 94d | RDSX-S | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 3/8" |
| 95 | RDSX-S1 | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 5/16" |
| 95b | RDSX-S1-A | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 3/8" |
| 95c | RDSX-S1 | 4 | 133.5 | 48.6 | 18 | 23.8 | 24 | 3/8" |
| 95d | 106 16V | 4 | 133.5 | 48.6 | 19.436 | 23.8 | 24 | 3/8" |
| 95e | 106 kit car | 4 | 133.6 | 48.66 | 19 | 23.75 | 23.75 | 3/8" |
| 95m | 106 kit car | 4 | 133.5 | 48.66 | 18 | 24 | 24 | 3/8" |
| 95i | 106 1.6 16V | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 3/8" |
| 95f | XU9 | 4 | 156.5 | 48 | 21 | 24.3 | 19.5 | 3/8" |
| 95f | CR-PEU-133.5 | 4 | 133.5 | 48.66 | 19.5 | 23.8 | 19 | 3/8" |
| 95h | 206 S16 | 4 | 139.3 | 48.66 | 22 | 24.18 | 21 | 3/8" |
| 95k | 106 16V | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 3/8" |
| 96 | RD26-P | 4 | 139 | 48.66 | 18 | 24.2 | 15 | 3/8" |
| 100 | 98491001(RDSX-S) | 4 | 133.6 | 48.66 | 19.5 | 23.75 | 19 | 3/8" |
| 100b | 133.5-19.46 | 4 | 133.5 | 48.66 | 19.46 | 24 | 19.5 | 3/8" |
| 177 | PEU-158(4RS4) | 4 | 158 | 53.7 | 20.01 | 24.2 | 22 | 3/8" |
| 177b | PEU-XU10 | 4 | 158 | 53.7 | 18.01 | 24.2 | 22 | 3/8" |
| 177f | JXU158 | 4 | 158 | 53.7 | 20.015 | 24.2 | 22 | 3/8" |
| 177g | 306 KC L-158 | 4 | 158 | 53.7 | 20.01 | 24.3 | 19 | 3/8" |
| 177H | JXU163 | 4 | 163 | 53.7 | 18.015 | 24.2 | 18 | 3/8" |
| 300 | PEU-158 | 4 | 158 | 53.7 | 22 | 24.15 | 19.5 | 3/8" |
| 300b | PEU-4RS4 | 4 | 158 | 53.7 | 20 | 24.15 | 19.5 | 3/8" |
| 300c | PEU-4RS4 | 4 | 152 | 53.7 | 22 | 24.15 | 19.5 | 3/8" |
| 300j | 153 | 4 | 153 | 53.7 | 22 | 24.2 | 19 | 3/8" |
| 449 | 1.6v 143.15 | 4 | 143.15 | 53.7 | 22 | 22.5 | 22.5 | 3/8" |
| 449d | 1.6v 140.8 | 4 | 140.8 | 48.655 | 22 | 22.5 | 22.5 | 3/8" |
| 449d | 1.6v 140.8 | 4 | 140.8 | 48.655 | 18 | 23.9 | 23.9 | 3/8" |
| 449g | 106 | 4 | 139 | 48.66 | 18.02 | 23.95 | 23.95 | 3/8" |
| 449b | 1.6v 137.75 | 4 | 137.75 | 48.655 | 18.02 | 23.9 | 23.9 | 3/8" |
| 449f | 106 | 4 | 157 | 48.66 | 18.02 | 23.95 | 23.95 | 3/8" |
| 449c | 1.6v 133.5 | 4 | 133.5 | 48.655 | 18 | 23.95 | 23.95 | 3/8" |
| 449i |
| 4 | 148 | 48.655 | 20.02 | 23.9 | 23.9 | 3/8" |
| 453 | cc143.35 | 4 | 143.35 | 53.7 | 22.02 | 22.5 | 22.5 | 3/8" |
| 453b | CC143 | 4 | 143 | 53.7 | 22 | 22.44 | 22.44 | 3/8" |
| 463 | 206 rc 148 | 4 | 148 | 48.66 | 21 | 23.9 | 17 | 3/8" |
| 505 | 162 | 4 | 162 | 48.65 | 18 | 24.3 | 19 | 3/8" |
| 610 | 306 | 4 | 163 | 48.655 | 20 | 24.3 | 19 | 3/8" |
| 672 | 137.75-18-48.655 | 4 | 137.75 | 48.655 | 18.01 | 24 | 20 | 3/8" |
| 672b |
| 4 | 137.75 | 48.656 | 18.015 | 23.8 | 18 | 3/8" |
| 409 |
| 4 | 143 | 53.695 | 22 | 24.2 | 25.5 | 3/8" |
| 409b | PEU-143 | 4 | 143 | 53.695 | 22 | 24.2 | 22.45 | 3/8" |
1. Q: Why choose Honghe product?
A: We Honghe have our own plant-Nanjing Honghe Precision Forging Co.,Ltd, we can guarantee the quality and provide you competitive price and satisfied service.
2. Q: Do you provide Customized OEM Service?
A: Yes, we provide OEM Service, send your drawings or samples, we will provide the best scheme.
3. Q: What is your payment term and shipment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal etc.
B: We can send merchandise by sea or by air as per your request.
If you need a reliable forging manufacturer, please feel free to contact us anytime.
Nanjing Honghe precision forging Co., Ltd was established in 2004 which is located in famous historical city Nanjing Jiangsu province, only need less than 2 hours to Shanghai by high-speed rail.
The company has a registered capital of $740, 000 and specialized in manufacturing, producing, designing and researching precision forging parts for electric power, automobile, motorcycle, railway, shipping, mining, mechanical and so on. It covers more than 21, 000 square meters, 6000 square meters standard workshop.
Having 5 sets of forging production lines mainly include300T, 400T, 630T, 1600T friction presses, also 1 sets of free forging lines include some air hammers.
We had been passed ISO9001: 2008 and ISO/TS16949 quality management system, CAD/CAM system was implemented for design and fabrication of forging dies. We utilize effective inspection equipments to inspect every operation and detail from the raw material to the finished products, hence our quality is secured and reliable.
The products have been exported to Asian, Europe, South America, Africa etc, achieving client's prasise. Our clients contain Emerson, Ford Motor, Samsung, Energy China etc.
Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
