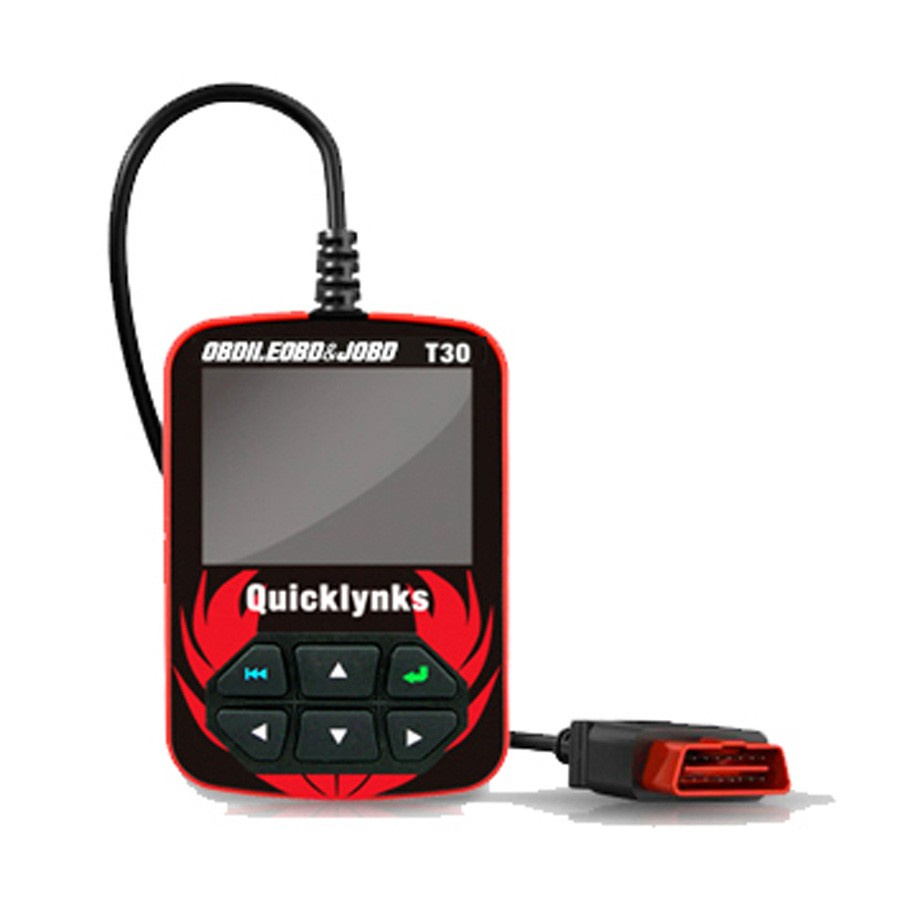

Obdii/Eobd/Jobd Quicklynks T30 Highen Diagnostic Scan Tool Auto Code Reader with Color-Screen Display
| Price: |
US $ 55-58/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Highen Diagnostic Scan Tool T30Top 8 Reasons to Get Auto Code Reader T30:
1. Large, 2.8" easy-to-read color TFT display
2. Easy to use with friendly menu interface
3. Unit upgradeable via flash programming
4. Wider vehicle coverage with CAN protocol support
5. Provides easy and quick access to Diagnostic Trouble Codes for all OBDII/EOBD+JOBD compliant vehicles sold worldwide
6. Highten Diagnostic scan tool T30 is designed to work on all JOBD/OBDII/EOBD compliant vehicles. (including the CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000 protocols), also Compliant with OBDII 16 PIN (include all 1996 and newer cars) for TOYOTA \ for HONDA \ for DAIHATSU \ for MITSUBISHI \ for MAZDA \ for NISSAN \ for SUZUKI \ for SUBARU
7. Highen Diagnostic Scan Tool T30 Language: English/Spanish
8. light trucks and SUVs sold in the United States,all 2000 and newer sold in the Europe, Japan and Asian Area) CAN, VPW, PWM, ISO9141, KW2000 protocols compliant vehicles(including those equipped with the next-generation protocol Control Area Network.),
Auto Code Reader T30 Function and Features:
1. Erases trouble codes and resets check engine lights;
2. It shows code definition on 2.8" TFT screen
3. Retrieves VIN(Vehicle Identification No.) on 2002 and newer vehicles that support mode 9
4. Displays the vehicle's sensors status information
5. Reads Generic Codes(P0, P2, P3, U0) and Manufacturer Specific Codes (P1, P3, and U1)
6. Displays I/M readiness status
7. Identifies and displays Pending Codes
8. Detects OBD2 freeze frame information
9. Determines the malfunction indicator lamp(MIL) status
10. Four live data graph can be chosen by the user and show in one screen.
11. Displays total # of codes retrieved, record all trouble code history
12. Code definitions displayed on unit color-screen
13. Supports data stream or live engine data(near 300 live data)
Auto Code Reader T30 Specifications:| Operating temperature | 0 to 50C (32 to 122 F) |
| Storage temperature | -20 to 70C (-4 to 158 F) |
| Power | 8 to 16 Volts provided via vehicle battery.
(we won't provide the battery in the product) |
| Display | backlight,
2.8'' color-screen display with contrast adjustment |
Car List:
1. European Cars
for Alfa Romeo, for Audi, for BMW, for Citroen, for Ferrari, for FIAT, for Jaguar, for Ivet40co t40, for Lamborghini, for Lancia, for Lotus, for Land Rover, for Merceder-Benz, for MINI, for Peugeot, for Porsche, for Renault, for Opel/Vauxhall, for Saab, for Seat , for Skoda, for VW, for Volvo, for Smart
2. American Cars
for Buick, for Pontiac, for Ford, for Chevrolet, for Cadillac, for Chrysler/Jeep, for G-M, for Rover, for Dodge
3. Janpanese and korean Cars
for Honda, for Hyundai, for Isuzu, for Daewoo, for Daihatsu, for Toyata, for Ssangyong, for Subaru, for Suzuki, for Kia, for Lexus, for Nissan, for Mazda, for Mitsubishi
Packing List
1pc x USB Cable (Used to update the scan tool)
1pc x User's Manual (Instructions on tool operations)
1pc x CD (Includes user's manual, DTCs lookup library, etc.)
| Prod Model: |
SC90 |
| Product Name: |
Auto Code Reader |
| Delivery Time: |
Within 2 Working Days After Payment |
| Warranty: |
One Year Warranty |
| Material Type: |
Plastic |
| Model Name: |
T30 Code Reader |
| Function: |
Code Reader |
| Function 1: |
Retrieves Vin |
| Function 2: |
Reads Generic Codes |
| Function 3: |
Displays I/M Readiness Status |
| Function 4: |
Detects OBD2 Freeze Frame Information |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
