No Noise Two Post Gantry Car Lift with Ce

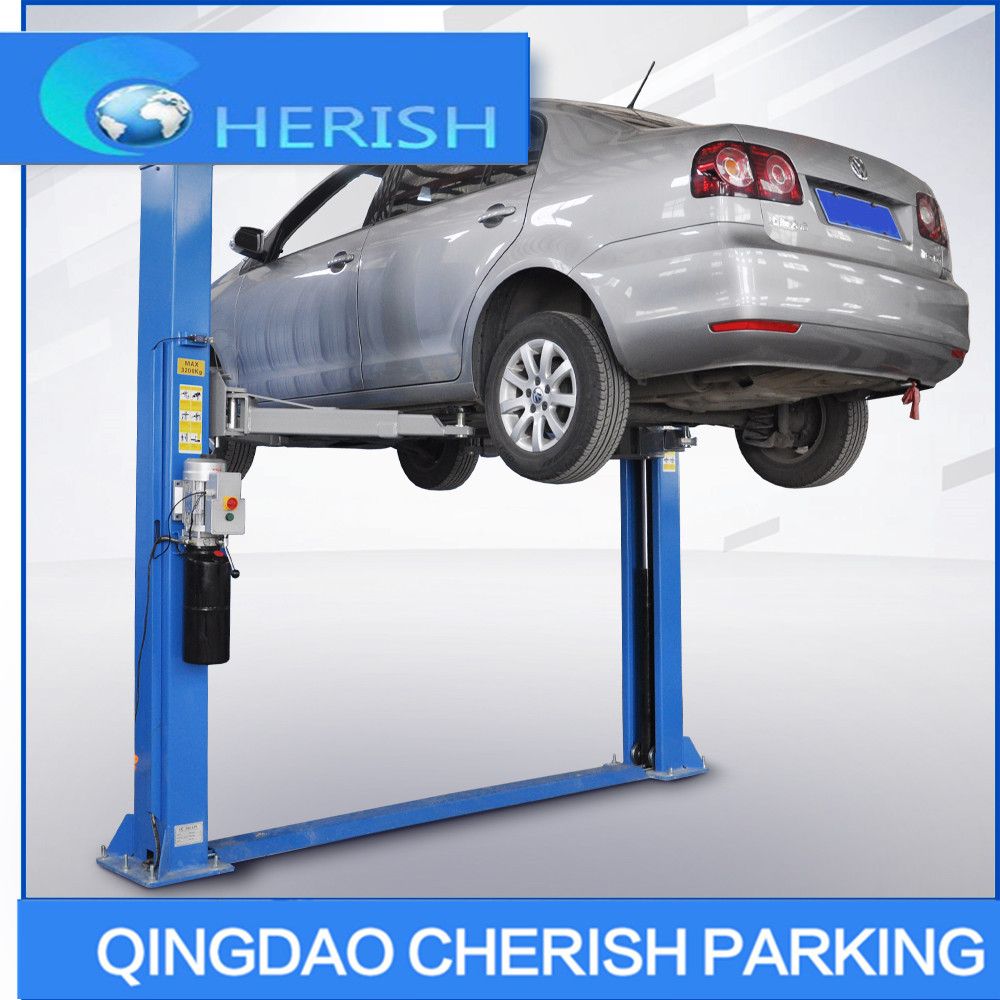

Name: No Noise Two Post Gantry Car Lift with Ce
Brand: ibuyautoparts.com
SKU: 725422042
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 750-900/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CHOL5500/6300
Colour:	White and Blue
Drive Mode:	Hydraulic
Construction:	Two Oil Cylinders+Two Chains
Surface Treatment:	Spraying Plastics or Galvanized
Unlock The Way:	Manual Unlocking or Electric Unlock
Electric Parts:	International Brand
Steel:	Q235A
Electric Control Voltage:	24V Safety Control
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	≥5T
Certification:	ISO
Design:	Two Post
Brand:	Cherish

Product Description

Feature:

No cover plate design, convenient for repairing and operation
Dual-cylinder lifting system, more stable and faster.
Cable-equalization system
Single lock release system, Safe and reliable.
adopt high wear-resistant nylon plate, prolong the life of slide block.
Mold machining through the whole process so that the parts are universal and interchangeable
Automatic Arm lock release
Automatic lifting height limitation.
120% capacity Dynamic load text and 150% static load test.
Italian oil seal to make sure no oil leakage
Optional Manual pump on power unit in case of power off.

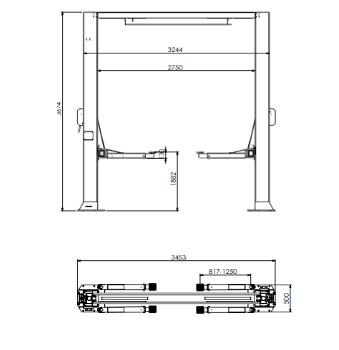

Main Parameter:

Model No.	Lifting Capacity	Lifting Height	Overall Height	Width Between Posts	/Rise/Drop Time	Power
CHOL5500	5500kgs/12000lbs	1882mm	3674mm	2750mm	75S/70s	2.2kw
CHOL6300	6300kgs/14000lbs	1882mm	3674mm	2750mm	75S/70s	2.2kw

Production time:

20-30 days after received the prepayment.

20' container load:10-12 sets; 40' container load: 20-24 sets.

Payment Term:

30%T/ T in advance + 70%T/T before the shipping,or 100%LC at sight
