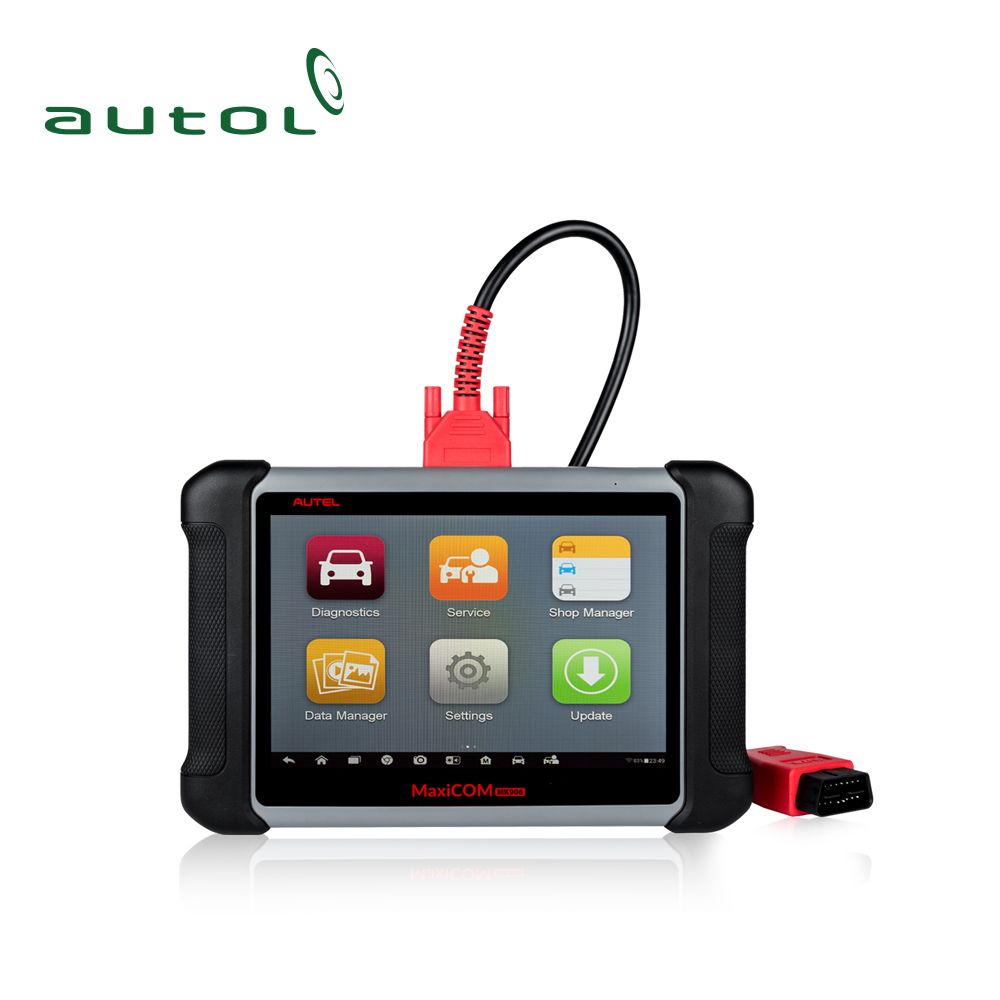

Newest Version Autel MaxiCOM MK906 Car Diagnostic Scanner Better Than Autel Maxidas DS708 Same Function With MS906
Top 10 reason to get the AUTEL MAXICOM MK906:
1. AUTEL MAXICOM MK906 is next generation of autel maxidas ds708
2. Online Update
3. Support Multi-languages
4. 1 year warranty and 1 year free online update .
5. With bigger screen, higher resolution run faster than autel maxidas ds708
6. Higher hardware configuration as Autel MaxiSYS MS906
7. AUTEL Authorized Distributor

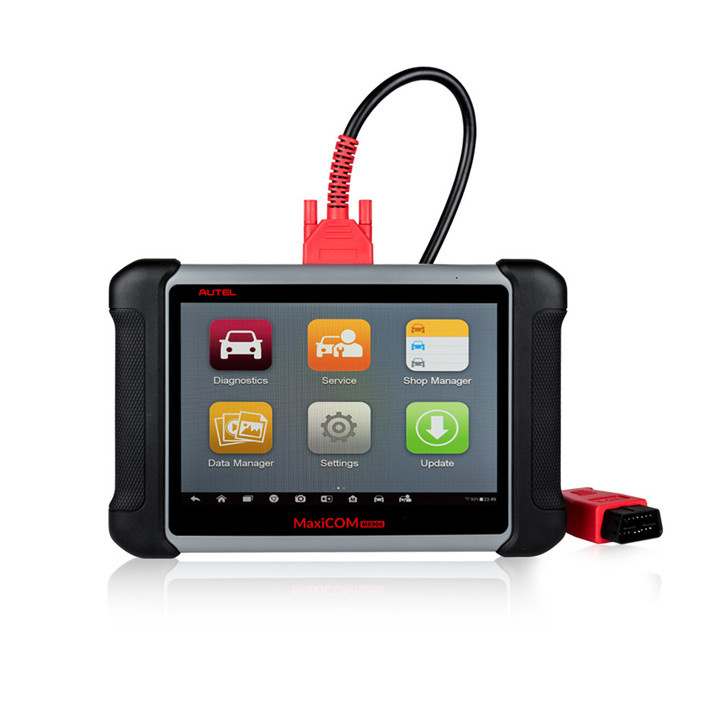

Autel MaxiCOM MK906 Car Diagnostic Scanner:
MaxiCOM MK906 is based on the Android operating system and is featured with an extensive coverage of OE-level diagnostics at an affordable price. Built with Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), a 32G SSD hard drive and an 8" capacitive HD touch screen, MaxiCOM MK906 efficiently provides comprehensive vehicle diagnostics and analysis.
New Generation of Autel MaxiDAS DS708 --- MK906 Features:
Extraordinarily powerful Samsung Exynos Hexa-core processor
8.0" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
Internal reliable 32GB SSD for better performance
Extremely easy-to-use with integrated vehicle communication interface
Built-in 8-megapixel rear camera with autofocus and flashlight
802.11b/g/n Wi-Fi to access your favorite web resources
Unique ergonomic design with rubberized outer protection and a rugged internal housing
Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data
MK906 Specifications:
| Operating System | | AndroidTM 4.4.2, KitKat |
| Processor | | Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | | 2 GB RAM & 32 GB ROM |
| Display | | 8.0 inch LED capacitive touch screen with 1024x768P resolution |
| Connectivity | | Wi-Fi (802.11 b/g/n)
DB16 DLC
USB 2.0
SD Card (Support up to 32GB) |
| Camera (rear) | | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/output | | Microphone
Single Speaker |
| Power and Battery | | 3.7V/5000 mAh lithium-polymer battery
Charging via 12 V AC/DC power supply |
| Input Voltage | | DC/12 V (9-35 V) |
| Power Consumption | | 5 W |
| Operating Temp. | | 0 to 55°C (32 to 131°F) |
| Storage Temp. | | -20 to 60°C (-4 to 140°F) |
| Housing | | Strong plastic housing with protective rubber boot |

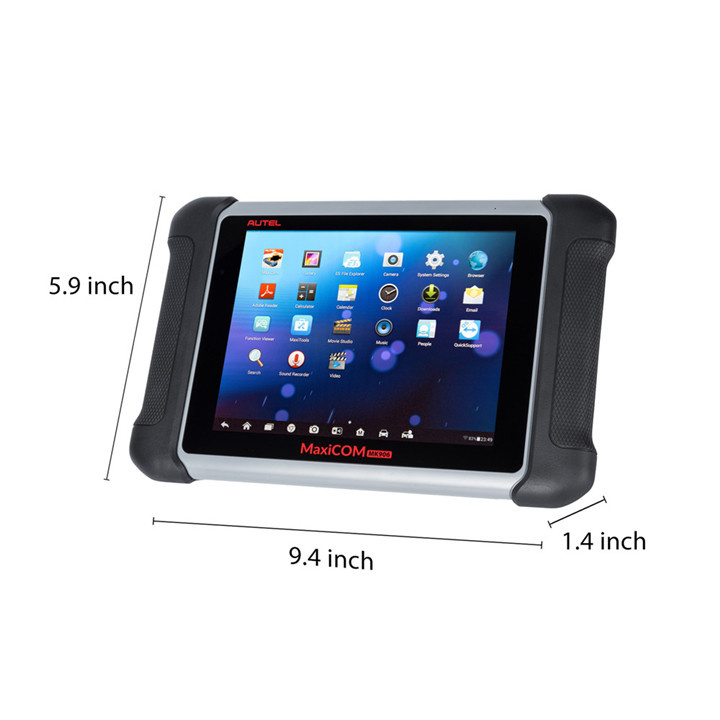

| Dimensions (W x H x D) | | 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0mm (1.4") |
| Weight | | NW: 0.93 kg (2.05 lb.) |
| Protocols | | ISO 9142-2, ISO 14230-2, ISO 15765-4, K-Line, L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

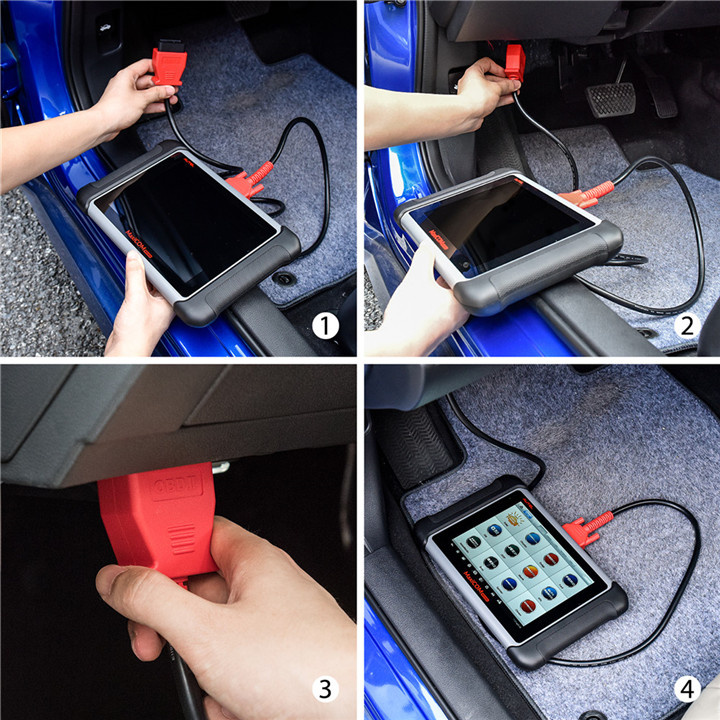

How to use?

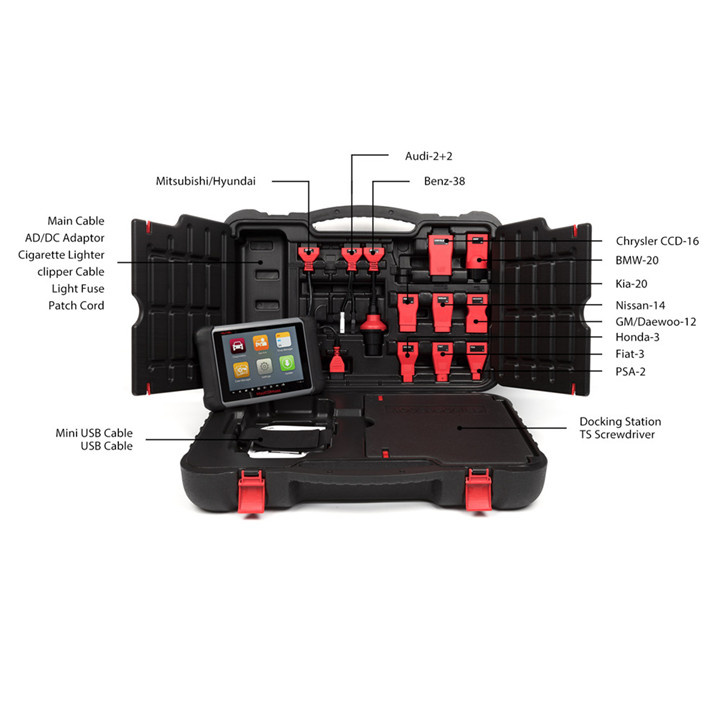

Autel MK906 Packaging Including:User Manual
Adapter for Chrysler-16 (for USA only)
Lighter Fuse
Main cable
Adapter for GM/Daewoo-12
Adapter for PSA-2
Adapter for Fiat-3
Adapter for BMW-20
Adapter for Benz-38
Adapter for Kia-20
Adapter for Mitsubishi/Hyundai-12+16
Adapter for Nissan-14
Adapter for Honda-3
Cigarette Lighter
AC/DC External Power Adapter
Adapter for Benz-14 (for EU only)
Adapter for VW/AUDI-2+2
