| Prod Model: |
CK6177 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System: |
Syntec |
| Chuck: |
10 Inch with Long Jaw |
| Plot: |
Probe System |
| Alloy Wheel: |
Max 28 Inch |
| Max. Size Of Tool Post: |
25*25mm |
| Motor Power: |
7.5kw |
| Max. Swig Over Bed: |
770mm |
| Range Of Spindle Speed: |
20-1800rpm |
| Certificate: |
CE |
| Max.Turning Length: |
1000mm |
Product Description
Company information
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Our guarantee1.We are cnc machine manufacrurer, can provid the high quality, competitive price and good after-sale service.
2.We have our own technical team, can provide the customized solutions according to your request.
3.We go the full 24-hour performance and accuracy test before shipment.
4.Warranty is one year; we would offer the parts. Quality problem is free of charge
during this period.
5.One year guarantee for whole machine expect of CNC system, which guarantee is
three years
6. 24 hours technical support e-mail.

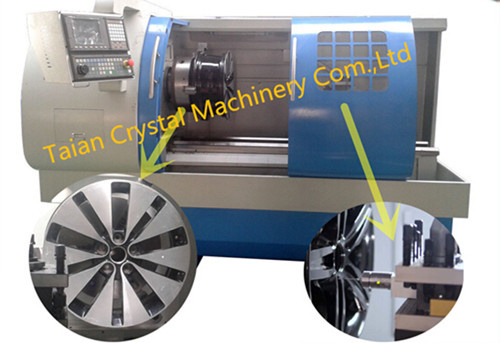

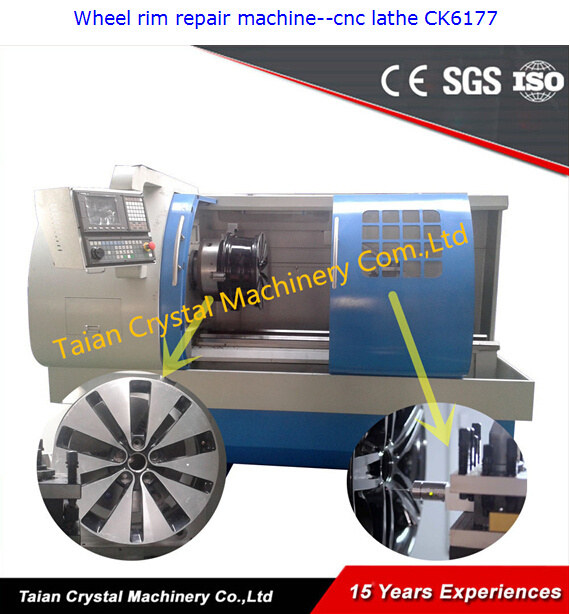

7. User manual and detailed video.Main feature for CK61771.Supply repairing Alloy wheel up to Max 28"2.Automated self plotting Digitization by Probe System3.Easy Operate4.CE Certification
5.Free Training video
6.7x24 hours email or telephone technology supplyStandard configuration1.SYNTEC 6TA CNC control system
2.Touch Probe system
3.Automatic electronic pump lubrication
4.Manual 3-jaw soft chuck of 10'Specification| Max. swig over bed | Φ770mm |
| Max. swig over cross slide | Φ500mm |
| Max.turning length | 1000 |
| Distance between centers | 1000mm |
| Stroke of X axis | 370mm |
| Width of the rail | 360mm |
| Size of the three-jaw chuck | 10' |
| Range of spindle speed | 20-1800rpm |
| Spindle bore | Φ72mm |
| Taper of spindle bore | MT6 |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
| Motor power | 7.5KW |
| Packing size(length×width×height) | 2390 mm×1620mm×2150mm |
| Net weight | 2200kg |
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!
Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
