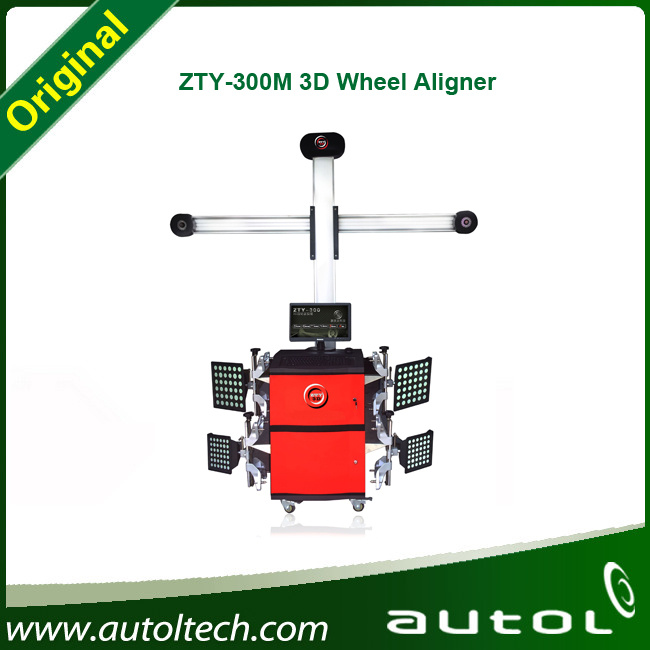

New 3D Wheel Alignment for Auto Repair Machines Zty-300m

ZTY-300M Automatic tracking Deluxe Edition

Highlight of ZTY-300M 3D Wheel Aligner:

1, 3D Wheel Alignment
2, Take up small space: Only need 2 post lift, affordable choose.
3, Intelligent Tracking: Self tacking, automatic tracking
4, Calibration Easiness: Simplicity, Fast to calibration
5, Flexible in working condition require

Dynamic constitute coordinate, no affected by the inclination of lift
Automatic tracking Target, testing on all height

Product advantage:
1 Independent intellectual property rights, hold invention and utility patents
2 Superiority on technology, have more than 3 ten years specialist
3 Specializing 3D wheel alignment R & D, more reliable, more cost-effective
4 Dynamic constitute coordinate, no affected by the inclination of lift
5 Quick, select moderolling run-outcaster swingresult, quick one step.
6 None waiting during rolling or caster swing, save test time
7 Automatic calculate wheel diameter, no manual input.
8 Industry best camera and optical system.
9 A wide range of wheel clamp, clamp 10~23 inch rim
10High precision anti-throwing target, Reinforced plastic enclosure, Laser fabrication, unique L recognition motifs
11 Friendly interface, The unique manufacturer search function
12 Perfect additional measurement
13 Real-time check target picture

Technical data:

Display accuracy: 0.01 / 1' / 0.1mm / 0.1inch

Environmental requirements:
Ambient temperature: -10~50°
Relative hnmidity: ≤ 85%

Measurement item	Accuracy	Accuracy range	Measurement range
Camber	±2´	±2°	±20°
Toe	±2´	±2°	±20°
Caster	±4´	±10°	±20°
SAI	±6´	±15°	±20°
Thrust	±2´	±2°	±10°
