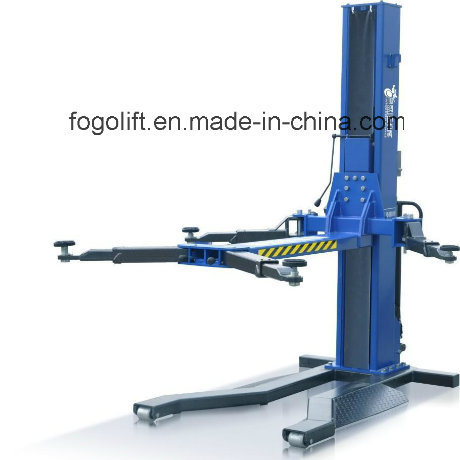

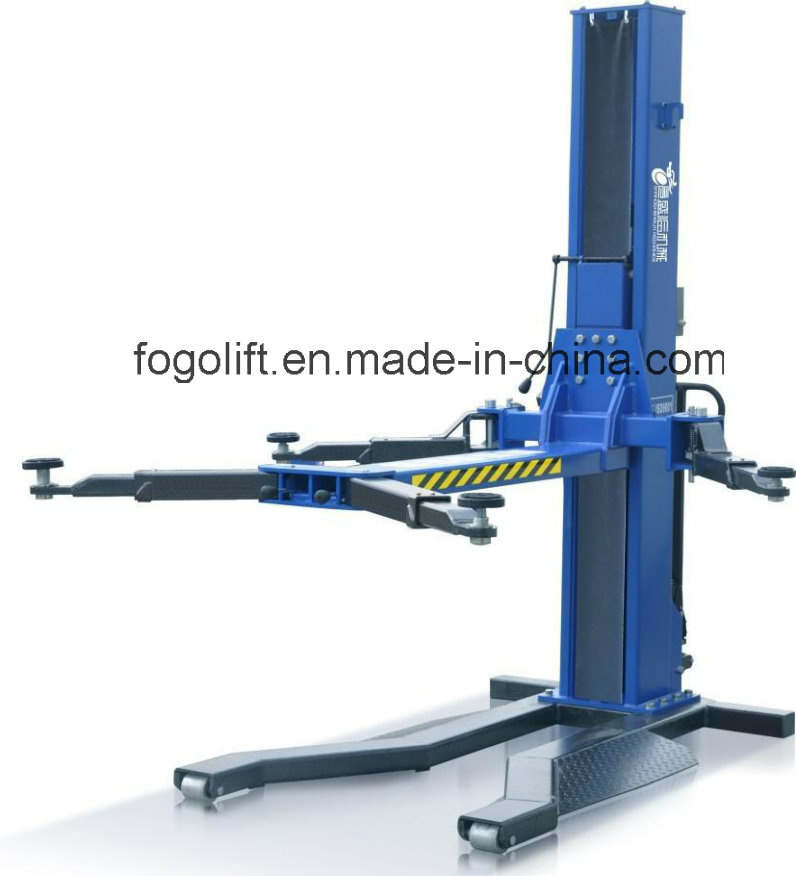

Mobile 1 Post Car Lift/ Car Lift/Ce 2.5ton Car Lift Capacity
| Price: |
US $ 1499/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SJG |
| Working Volt: |
110V, 220V, 380V/50Hz, 60Hz |
| Capacity: |
3000kgs |
| Lifting Speed: |
3m/Minutes |
| Max Height: |
2000mm |
| Table Size: |
L*W = 4m*2.1m |
| Rated Power: |
2.2kw |
| Type: |
One Cylinder Hydraulic Lift |
| Lifting Capacity: |
3T |
| Certification: |
ISO |
| Design: |
Single Post |
Product Description
Advantages:Reason 1: Good appearance and mobile car lift, without installation, it will save your time and energy. We will provide you the best quality products,but reasonable price for you.
Reason 2: Mass production will lower the cost and under the technician's guarance, we are strictly control each equipment anytime.
Reason 3: Detailed product information

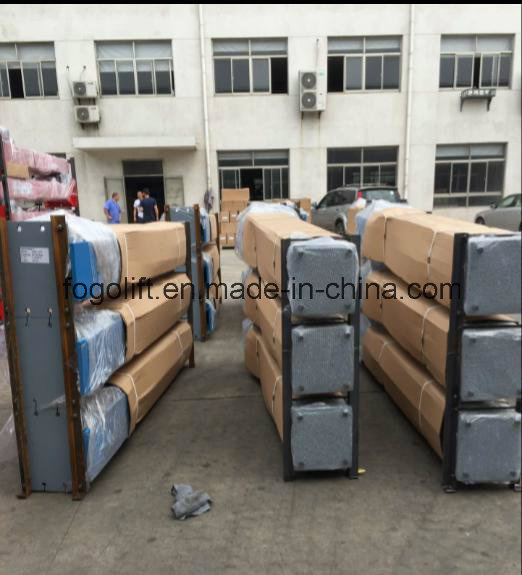

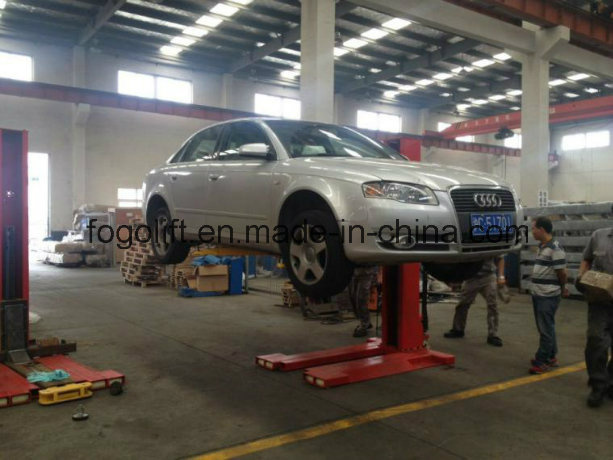

Reason 4: we will use different types of car to test our single post car lift function, before each shipment and take photos.
Reason 5: 1 year warranty, life-time spare parts supply.Specifications:*Space-saving single post design,free entrance and exit for driver
*Single hydraulic cylinder ,chain -driven system, faster lifting and lowering speed.
*Single electric or manual lock release system , safe and reliable
*Wear-resistant, heat-resistant and high strength Macromolecular polyethylene slide block
*Wave plate or diamond plate are optional ,you can choose hot galvanizing,electroplating or powder spray
*Mold machining through the whole process so that the parts are universal and interchangeable
*Automatic arm lock release
*Pass 120% capacity dynamic load test and 150% capacity static load test.
*Italian oil seal to make sure no oil leakage
*Solenoid valve has the emergency manual lock release function.
*Optional manual pump on power unit in case of power off.
*Optional 24v control box,solenoid valve and electromagnet | Model No | SJG2.5-2 |
| Lifting capacity | 5000lbs/2500kgs |
| Car parking height | 2000mm |
| Overall height | 2650mm |
| Overall width | 2784mm |
| Rated oil pressure | 18Mpa |
| Drive through | 2130mm |
| Platform length | 3998mm |
| Car parking quantity | 2*n |
| Rise/Drop time | 60S/50S |
| Motor capacity / Power | 220V/380V /2.2kw |
| Operation mode | Ten keys, electric lock release,manual |
Jinan Fogo machinery Co., Ltd is a company which is professional in producing the hydraulic lift platform and handling equipment for logistics using and is also the biggest producer in making Aluminum Aerial Work LT, Cylinder hydraulic aerial work platform, Arm Lifter and dock levelers and is a member of China Association of Warehouses and Storage.
With excellent facilities, advanced techniques, full-scale analysis technique, tremendous technology, all of our products has passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China with the number TS2437071-2009. Our machine's burden has reached the maximum load: 10 tons.
Our company has got the 2000 Quality System Certification of ISO9001. Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its Quality and capability had been tested by using in several national project. We have got a reputation by selling our goods towards domestic market and overseas market such as: America, Canada, and German. Our products are compartmentalized to six BIG SERIES and FIFTY VARIETIES.
The management criterion is "Quality is the best, Users' demand is the highest, Employee moves fast, and the honesty is the first". Welcome the friends coming from all over the world!
